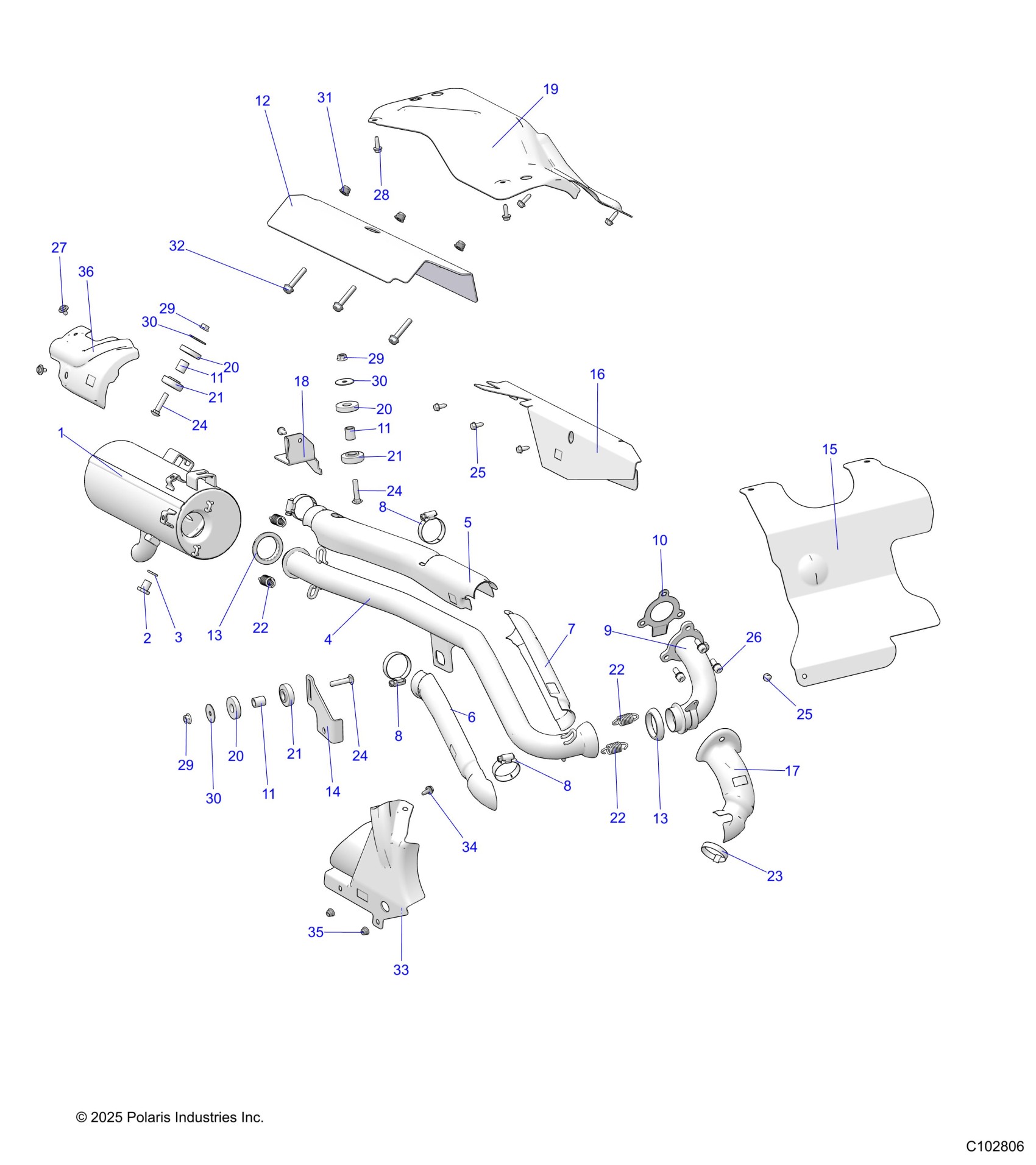

Polaris SPORTSMAN 570 EPS TRAIL PACKAGE (R01) - A26SHY57AL/AS ENGINE, EXHAUST - A26SHY57AL/AS (C102806) Diagram

#

Description
Price

1

WELD-EXHAUST,SILENCER [INCL. 1-3]

1263784

$355.99

2

BOLT-1/2-20X5/8 HXHDCAP-GR5-P

7520756

$5.59

3

WASHER-CLEAN OUT .51X75X.09

7557077

$8.35

4

ASM-EXHAUST,MID-PIPE [INCL. 4-8]

1263475

$275.99

5

SHIELD-HEAT,EXHAUST,REAR

5267366

$67.99

6

SHIELD-HEAT,EXHAUST,MID,OUTER

5267367

$59.99

7

SHIELD-HEAT,EXHAUST MID,INNER

5267368

$30.79

8

CLAMP-HOSE, 2.00-SS

7082359

$13.59

8

CLAMP-HOSE, 2.00-SS

7082359

$13.59

8

CLAMP-HOSE, 2.00-SS

7082359

$13.59

9

WELD-MANIFOLD,570

1263476

$127.99

10

SEAL-EXHAUST,MANIFOLD,570

3610360

Unavailable

11

BUSHING-EXHAUST,15.87 X 21

5144284

$6.39

11

BUSHING-EXHAUST,15.87 X 21

5144284

$6.39

11

BUSHING-EXHAUST,15.87 X 21

5144284

$6.39

12

BRKT-SILENCER,M.BLK

5274891-458

$31.99

13

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

13

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

14

BRKT-EXHAUST PIPE SUPPORT, BLK

5274539-329

$19.99

15

SHIELD-HEAT,FUEL TANK,1UP

5267108

$26.39

16

SHIELD-HEAT,AIRBOX

5275620

$51.99

17

SHIELD-HEAT,EXHAUST HEADPIPE

5268871

$43.99

18

BRKT-EXHAUST MOUNT,BLK

5269882-329

$12.31

19

SHIELD-FENDER

5269956

$71.99

20

WSHR-15.4X38.1X7.9 RUBBER

5418948

$3.99

20

WSHR-15.4X38.1X7.9 RUBBER

5418948

$3.99

20

WSHR-15.4X38.1X7.9 RUBBER

5418948

$3.99

21

DAMPENER-VIBRATION

5418949

$6.39

21

DAMPENER-VIBRATION

5418949

$6.39

21

DAMPENER-VIBRATION

5418949

$6.39

22

SPRING-EXHAUST

7045211

$7.99

22

SPRING-EXHAUST

7045211

$7.99

22

SPRING-EXHAUST

7045211

$7.99

23

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.79

24

BOLT-CARR-5/16-18X1 1/2 GR5-Y

7515316

$2.39

24

BOLT-CARR-5/16-18X1 1/2 GR5-Y

7515316

$2.39

24

BOLT-CARR-5/16-18X1 1/2 GR5-Y

7515316

$2.39

25

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

26

SCR-M8X1.25X20,HXSOC-CSSPL-SEM

7517555

$8.79

27

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

28

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

29

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC

7547623

$3.19

29

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC

7547623

$3.19

29

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC

7547623

$3.19

30

WASHER-.328X1.25X16GA, FL-Y

7555716

$1.59

30

WASHER-.328X1.25X16GA, FL-Y

7555716

$1.59

30

WASHER-.328X1.25X16GA, FL-Y

7555716

$1.59

31

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

32

SCR-HXFL-M8X1.25X45 10.9 ZFB

7521332-45

$3.19

33

SHIELD-DEBRIS,FMC, BLK

5459928-070

$12.79

34

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

35

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

36

SHIELD-DEBRIS

5273308

$19.99
