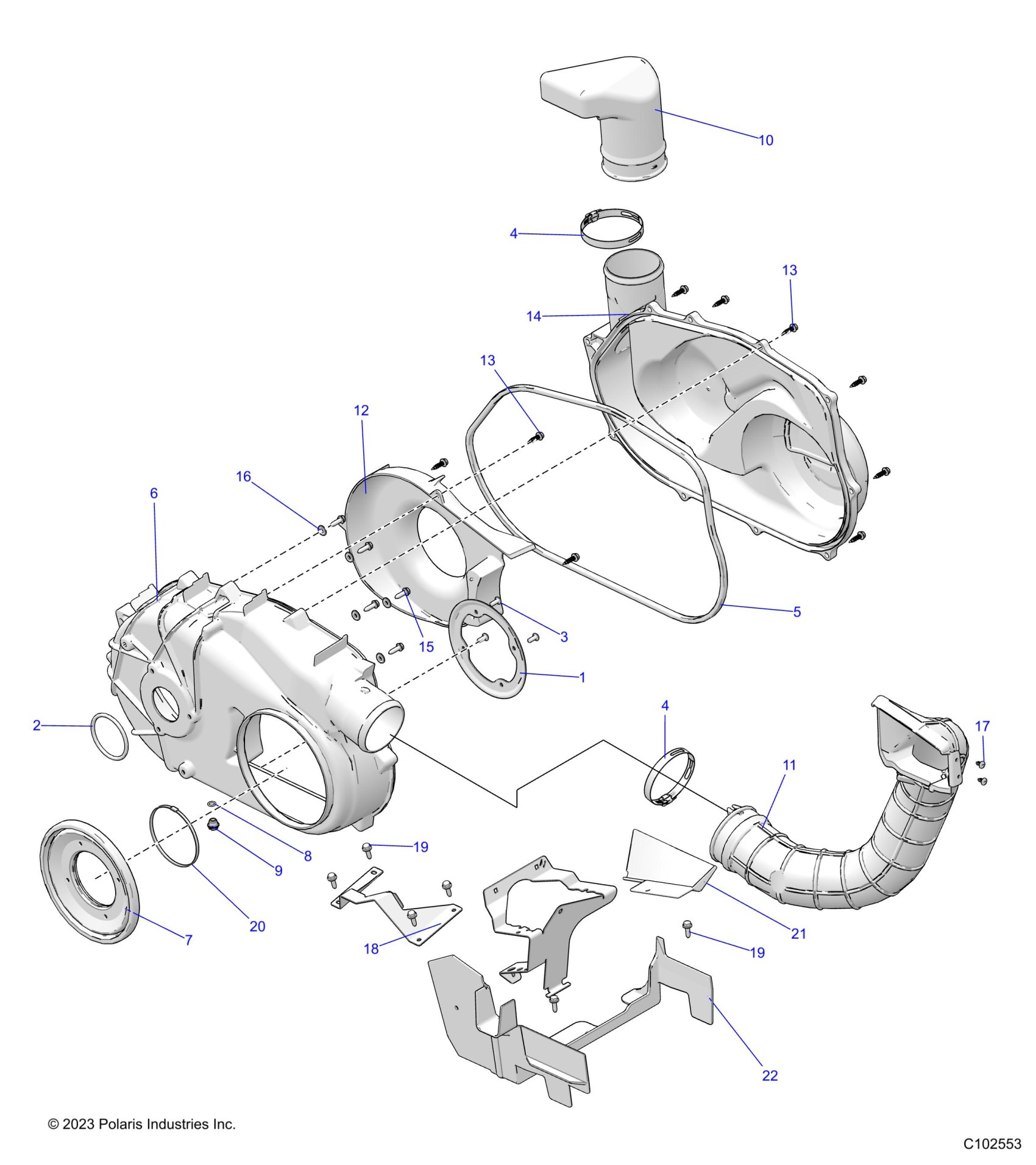

Polaris SPORTSMAN 570 EPS TRAIL PACKAGE (R01) - A26SHY57AL/AS BODY, CLUTCH COVER - A26SHY57AL/AS (C102553) Diagram

BRKT-SEAL,P190X,DISHED

5274620

$13.59

O-RING-0.489X0.629X0.070,EPDM

5415647

$1.59

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

SEAL-OUTER CLUTCH COVER

5522362

$43.99

ASM-CLUTCH COVER-INNER [INCL. 7-9]

2637805

$155.99

SEAL-COVER,CLUTCH,INNER,P190X

5418251

$55.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

DUCT-CLUTCH OUTLET X2

5418396

$47.99

DUCT-CLUTCH INLET,P190X

5418414

$55.99

COVER-CLUTCH,INTAKE,BAFFLE

5455440

$91.99

SCR-#14X1-1/4,HI/LO/TAPER-Y

7519849

$3.19

SCR-#14X1-1/4,HI/LO/TAPER-Y

7519849

$3.19

ASM-COVER-CLUTCH OUTER [INCL. WARNING DECAL]

2638288

$175.99

SCR-TFHL-1/4-20X0.88 G5 Z SEMS [INCL. 15 &16]

7517599

$5.59

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

CLIP-XMAS TREE,.187 DIA

5432966

$1.49

CLUTCH-BOX,LIMITER,E-COAT

5271308-329

$27.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

CABLE-TIE,13-102MM,NON-FLAM

7082260

$5.59

DIVERTER,WTR SHLD,P-190X,BLK

5465393-070

$10.39

COVER-CVT,SPLASH,SHIELD,SP,BLK

5465254-070

$27.99
