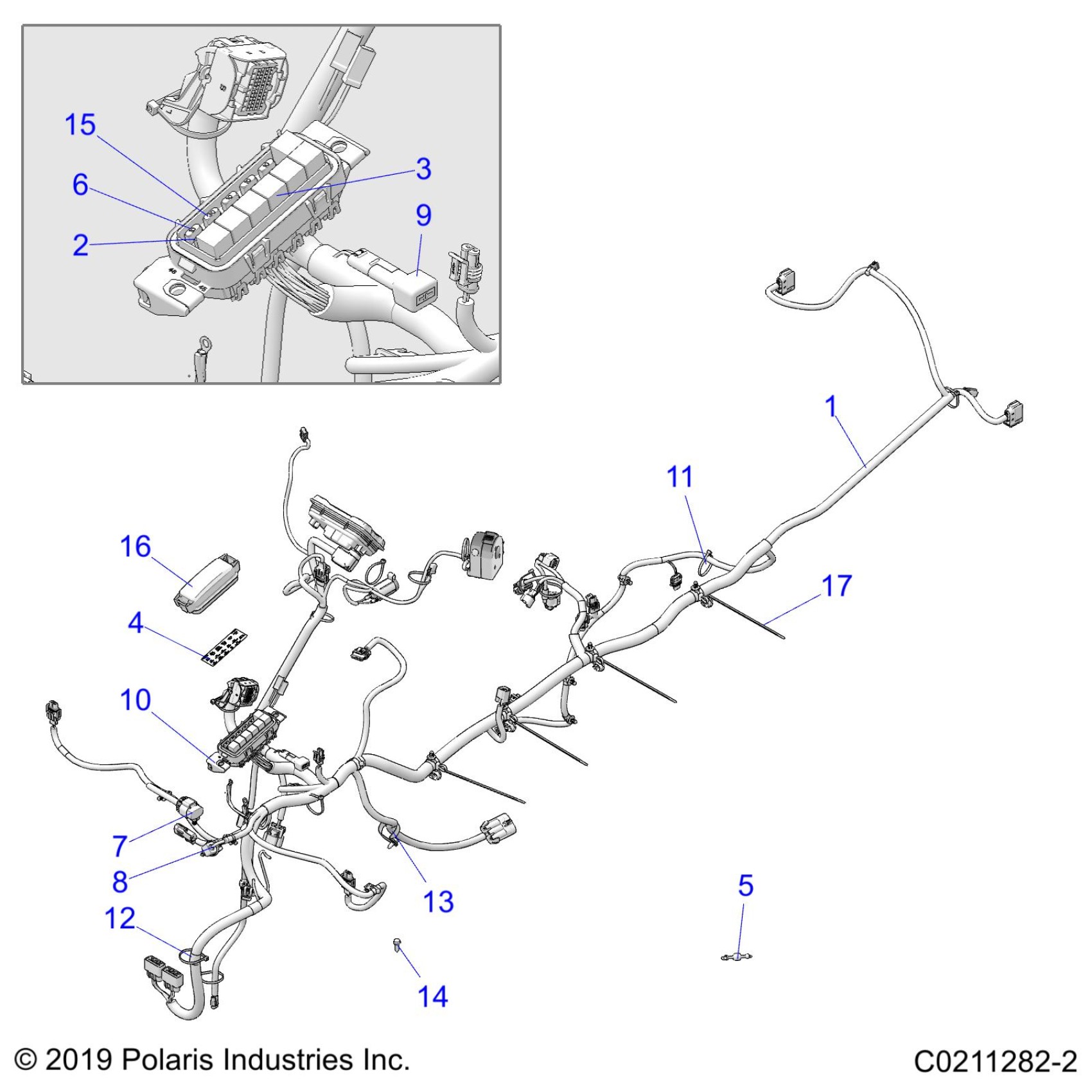

Polaris SPORTSMAN 570 EPS (R05) - A20SEE57A1/A4/A7/A9/B1/B4/B7/B9 ELECTRICAL, MAIN WIRE HARNESS - A20SEE57A1/A4/A7/A9/B1/B4/B7/B9 (C0211282-2) Diagram

HARNESS-MAIN,SPMN 570 MECH [A1] [A4] [A7] [A9]

2414898

$1,121.99

HARNESS-MAIN,SPMN 570,EVAP [B1] [B4] [B7] [B9]

2415049

$1,319.99

FUSE-PARK,20 AMP

2434017

Unavailable

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

LABEL, FUSE BOX

7300006

Unavailable

DIODE, 6 AMP

2411035

$51.99

FUSE-IGNITION,10 AMP

2434016

$4.79

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

BREAKER-CIRCUIT,15AMP,SEALED

2411086

$39.99

DIODE, 6 AMP

2410000

$35.99

KIT, FUSE LINK, .8MM

2202607

$39.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

SCREW

7512232

$1.49

FUSE-MAIN,30 AMP

2434015

$7.19

COVER, FUSEBOX, 48WAY

4015011

$55.99

SEAL, FUSE CENTER

5415598

$8.79

CLIP-MOD OMEGA,1X12MM OD HOSE

7082593

$3.99
