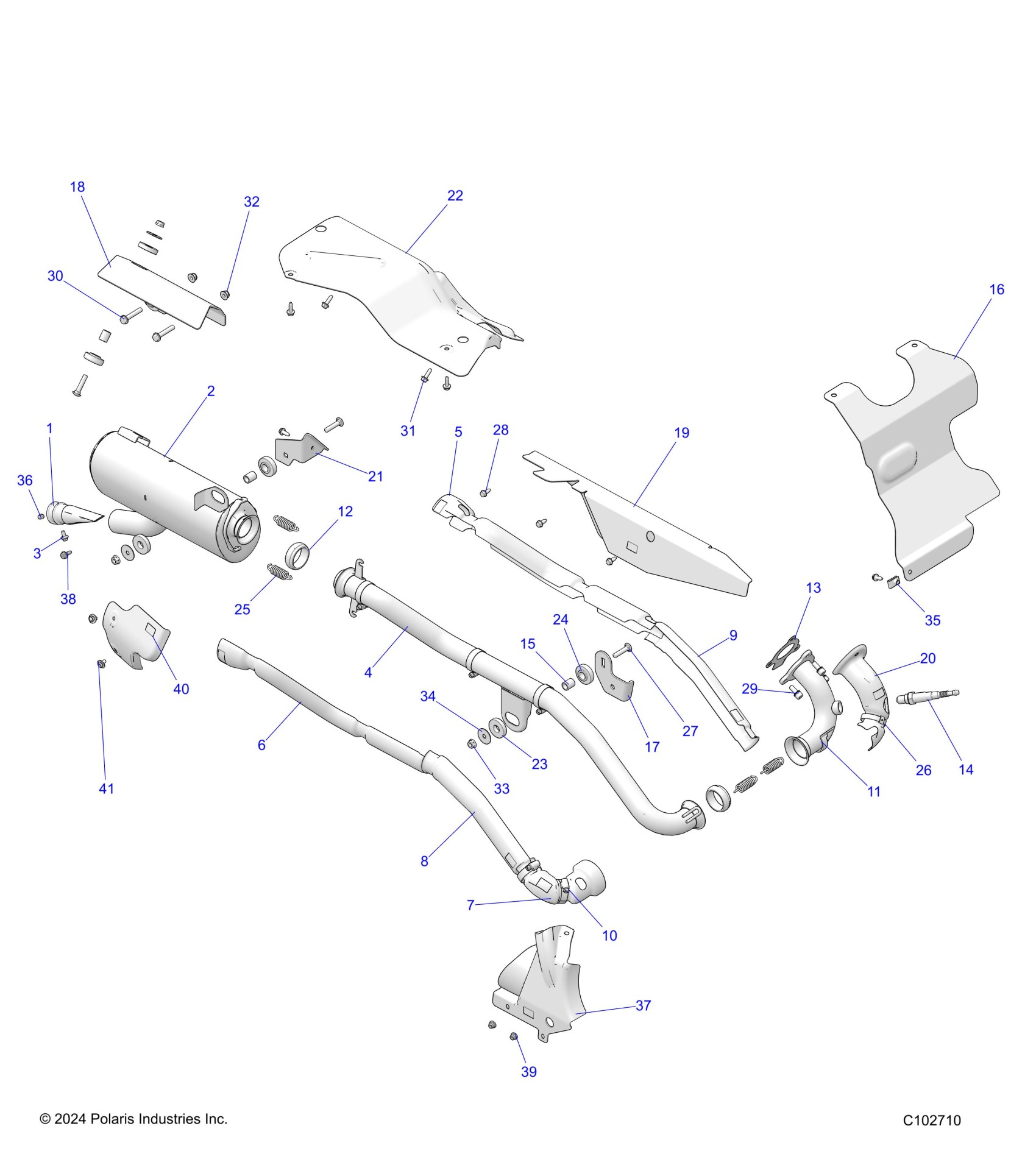

Polaris SPORTSMAN 570 EPS (R03) - A25SEE57A1/A3/A6/A9/B1/B3/B6/B9 ENGINE, EXHAUST - A25SEE57B1/B3/B6/B9 (C102710) Diagram

#

Description
Price

1

WELD-SPARK ARRESTOR,1IN

1263571

$43.99

2

WELD-SILENCER,570,CAT

1263823

$347.99

3

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

4

ASM-EXHAUST PIPE,570 EFI,SS [INCL. 4-10]

1263315

$602.79

5

SHIELD-HEAT,EXHAUST,REAR

5267238

$67.99

6

SHIELD-HEAT,EXHAUST,REAR

5267239

$67.99

7

SHIELD-HEAT,EXHAUST,MID

5267240

$59.99

8

SHIELD-HEAT,EXHAUST,MID

5267284

$30.79

9

SHIELD-HEAT,EXHAUST MID,INNER

5267368

$30.79

10

CLAMP-HOSE, 2.00-SS

7082359

$13.59

11

WELD-MANIFOLD,570,O2

1263515

$127.99

12

GASKET-DOUBLE SPHERICAL,1.625"

3610312

$9.59

13

SEAL-EXHAUST,MANIFOLD,570

3610360

Unavailable

14

SENSOR-LAMBDA,LSF 4.2

4011853

$135.54

15

BUSHING-EXHAUST,15.87 X 21

5144284

$6.39

16

SHIELD-HEAT,FUEL TANK,1UP

5267108

$26.39

17

BRKT-EXHAUST SPPRT, EVAP, BLK

5274540-329

$12.79

18

BRACKET,SILENCER,FRAME

5267285

$43.99

19

SHIELD-HEAT,AIRBOX

5275620

$51.99

20

SHIELD-HEAT,MANIFOLD,570,O2

5269130

$43.99

21

BRKT-EXHAUST MOUNT,BLK

5269883-329

$13.19

22

SHIELD-FENDER

5269956

$71.99

23

WSHR-15.4X38.1X7.9 RUBBER

5418948

$3.99

24

DAMPENER-VIBRATION

5418949

$6.39

25

SPRING-EXHAUST

7045211

$7.99

26

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.79

27

BOLT-CARR-5/16-18X1 1/2 GR5-Y

7515316

$2.39

28

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

29

SCR-M8X1.25X20,HXSOC-CSSPL-SEM

7517555

$8.79

30

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

31

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

32

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

33

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC

7547623

$3.19

34

WASHER-.328X1.25X16GA, FL-Y

7555716

$1.59

35

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

36

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

37

SHIELD-DEBRIS,FMC, BLK

5459928-070

$12.79

38

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

7518513

$4.79

39

NUT-HXFL-M6X1.0 8 ZB3 NYL [TO 11/11/2024]

7547453

$3.99

39

NUT-HXFL-M6X1.0 8 ZTB NYL [FRM 11/11/2024]

7548027

$1.59

40

SHIELD-DEBRIS,INTL

5273538

$15.99

41

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19
