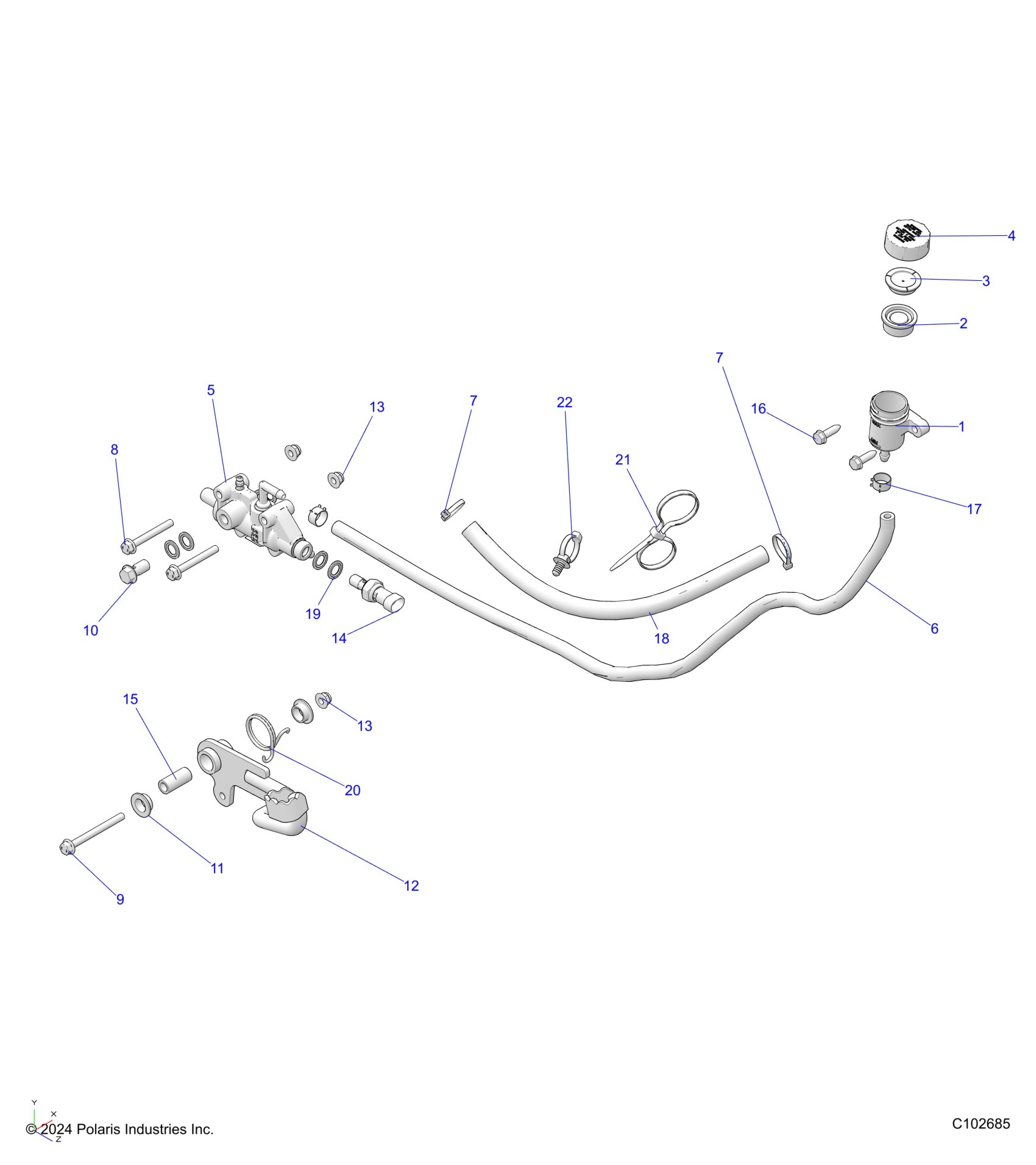

Polaris SPORTSMAN 570 EPS PREM (R03) - A25SEZ57AG/BG BRAKES, BRAKE PEDAL and MASTER CYLINDER - A25SEZ57AG/BG (C102685) Diagram

ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. 2-4]

1911224

$35.99

CUP-RESERVOIR,BRAKE

5437040

$7.19

DIAPHRAGM, RESERVOIR, BRAKE

5413262

$4.79

RING, RESERVOIR, BRAKE

5437041

$5.59

CAP-RESERVOIR,BRAKE

5437039

$5.59

ASM-M/CYL,DIRMC,3/4HO,B/U-RING [INCL. HOSE, CLAMPS]

1913815

$95.99

HOSE-RESERVOIR,BRAKE,805MM

1911267-805

$10.39

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

SCR-M6X1.0X45 HX-FL-Y/D

7517950

$5.59

SCREW, M8x50

7520105

$4.79

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

BUSHING, PIVOT, PEDAL

5433189

$3.99

WELD-BRAKE,PEDAL,M.BLK

1914416-458

$83.99

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

SWITCH-BRK,M10X1.25,SGL,30-40 [FOR USE WITH FOOT MASTER CYLINDER]

4081979

$83.99

TUBE-SPACER

5343053

$5.59

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

HOSE CLAMP, RED

7080003

$1.49

SHEATH-REFLECTSLEEVE,VTR,330MM

8450226-330

$14.39

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

SPRING-TORSION,BRAKE

7041750

$8.79

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
