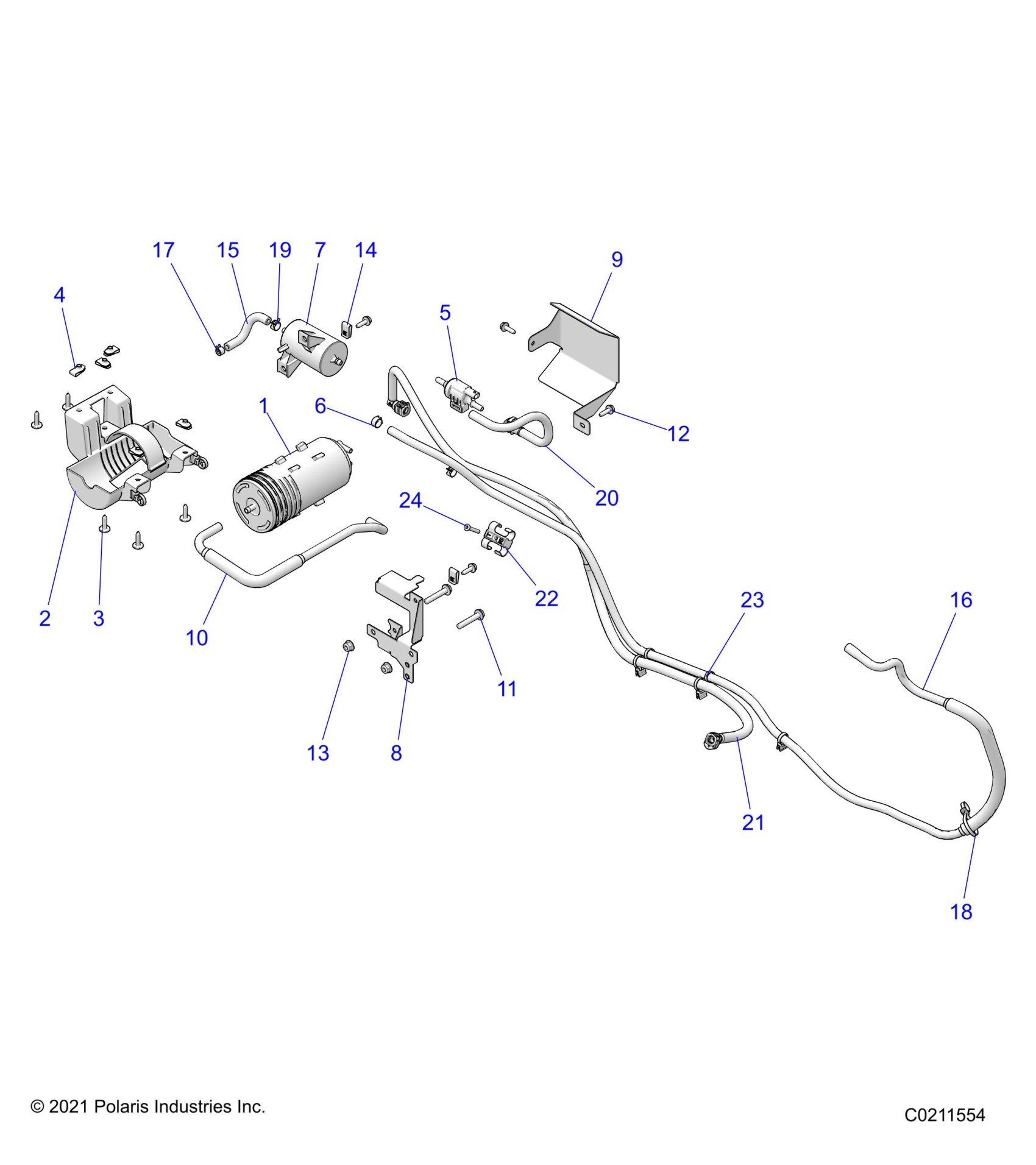

Polaris SPORTSMAN 570 EPS PREM 40th (R01) - A26SEZ57AB/BB FUEL SYSTEM, FUEL TANK EVAP SYSTEM. - A26SEZ57BB (C0211554) Diagram

CANISTER-ACTIVATED CARBON,BFL

2521893

$114.99

BRKT-MNT CANISTER,BLK

5457122-070

$44.51

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

CLIP-"U",M6.0X1.0

7547366

$5.99

VALVE-PURGE

2521964

$77.44

HOSE CLAMP, RED

7080003

$1.19

FILTER-CANISTER VENT

2521750

$61.10

BRKT-MNT,PRG VLV,FILTER,E COAT

5268313-329

$57.76

COVER,PRG VLV,FILTER,E COAT

5268631-329

$101.17

HOSE-AIR,FRESH,FUEL VENT

5417156

$89.99

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.76

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.19

FUEL LINE-10 CENTIMETERS

8450040-10

$72.84

ASM-LINE,TANK TO CANISTER,1UP [INCL. SLEEVE]

2522188

$174.99

CLAMP-HOSE,(7/16)

7080236

$1.59

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$4.03

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

ASM-LINE,CANISTER TO PURGE

2522190

$84.99

ASM-LINE,PURGE TO TB [INCL. SLEEVE]

2522191

$144.99

T-CLIP, T15

7081689

$7.14

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.76
