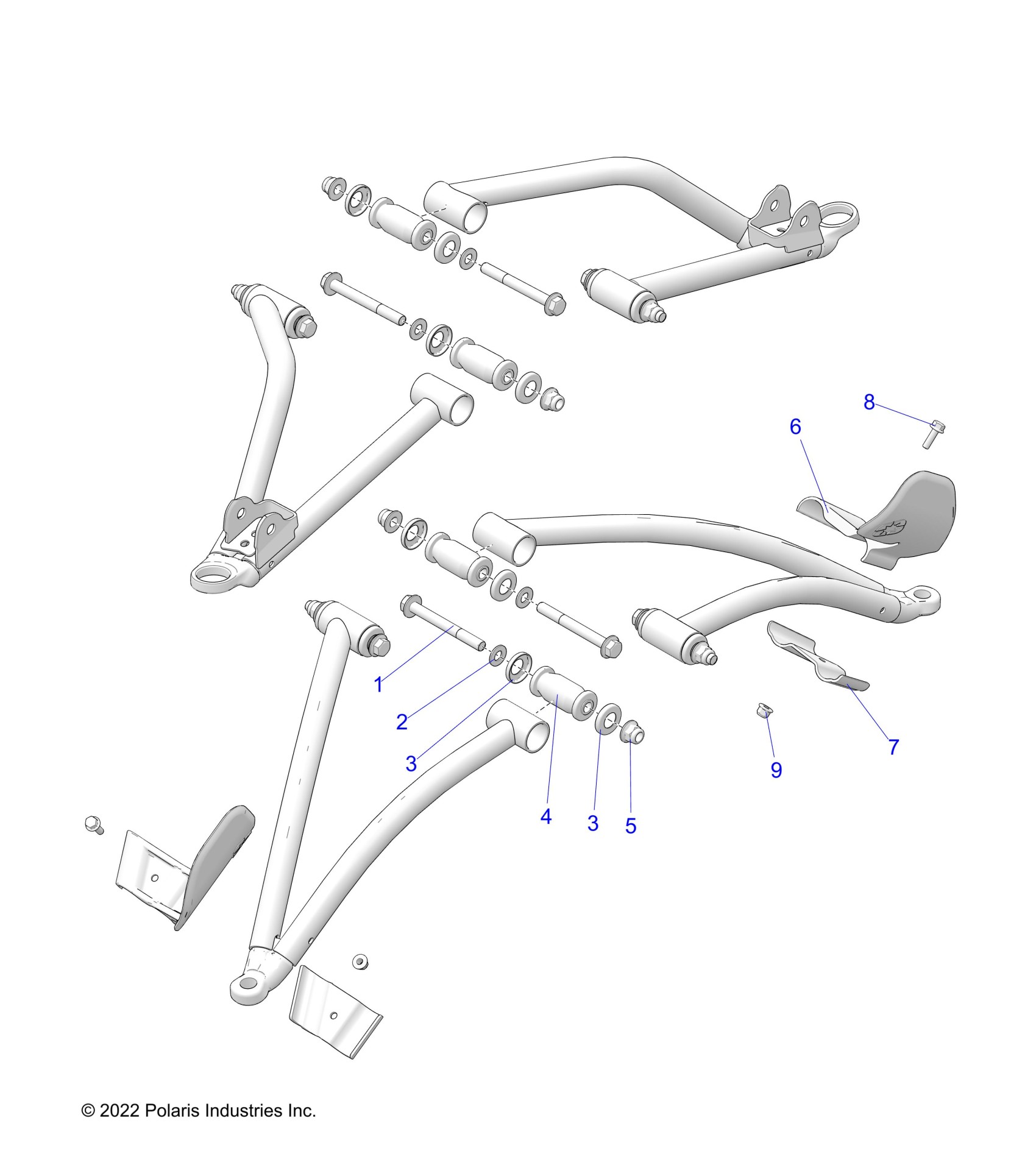

Polaris SPORTSMAN 570 EPS EBS TRAIL PACKAGE (R04) - A24SHY57AL/AN SUSPENSION, A-ARM MOUNTING - A24SHY57AL/AN (C102438) Diagram

#

Description

Price

1

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

3

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

3

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

4

BUSHING-SUSPENSION,RUBBER

5417111

$6.39

5

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

BRKT-CV SHIELD,LH,SP

5274881

$23.99

6

BRKT-CV SHIELD,RH,SP

5274882

$24.27

7

SHIELD-CV,FRONT,LH,SP,BLK

5465784-070

$19.99

7

SHIELD-CV,FRONT,RH,SP,BLK

5465785-070

$19.99

8

SCR-HXFL-M6X1.0X25 10.9 ZFB

7521331-25

$1.59

9

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59
