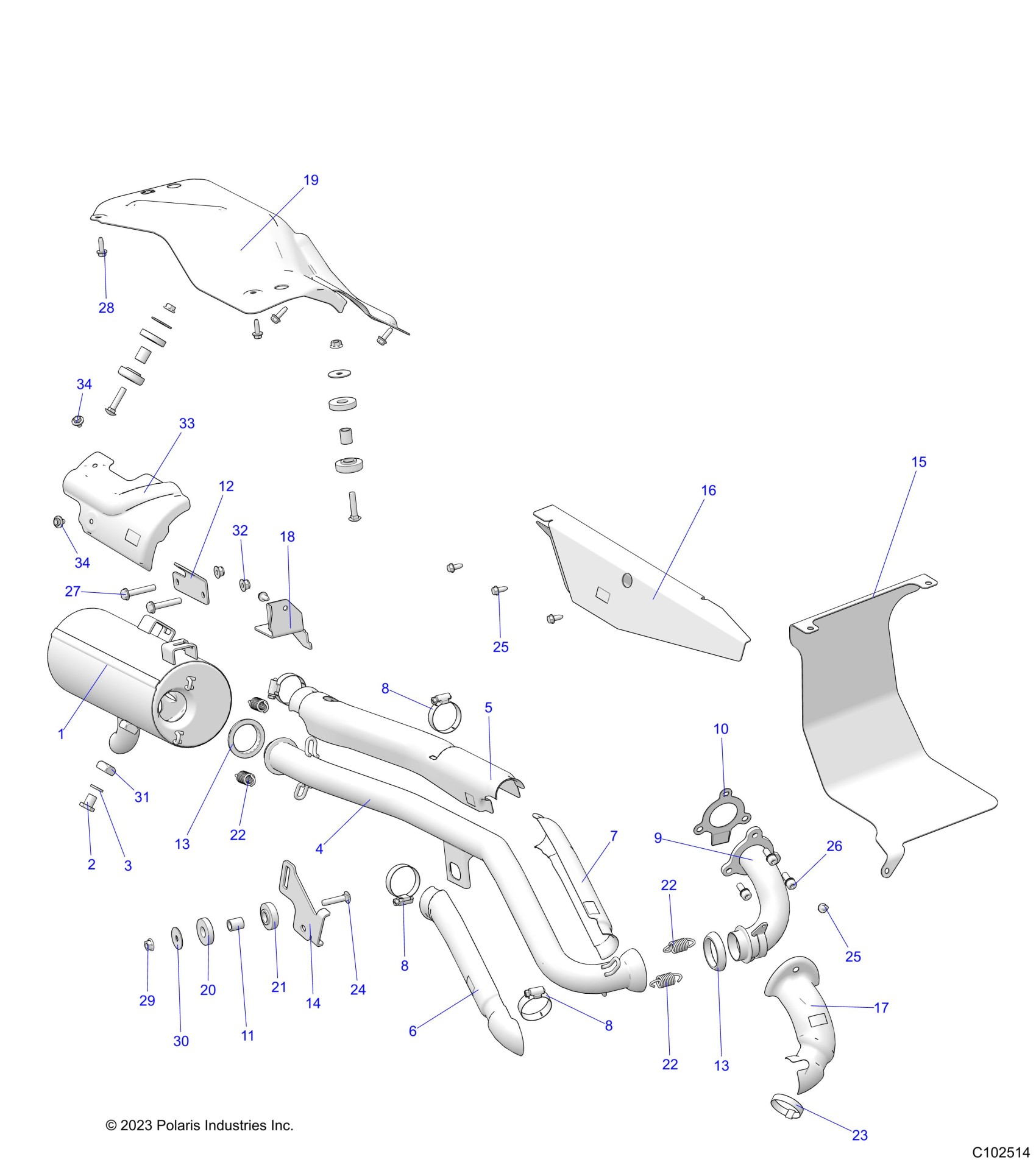

Polaris SPORTSMAN 570 EPS EBS TRAIL PACKAGE (R04) - A24SHY57AL/AN ENGINE, EXHAUST - A24SHY57AL/AN (C102514) Diagram

#

Description
Price

1

WELD-EXHAUST,SILENCER [INCL. 1-3]

1263784

$355.99

2

BOLT-1/2-20X5/8 HXHDCAP-GR5-P

7520756

$5.59

3

WASHER-CLEAN OUT .51X75X.09

7557077

$8.35

4

ASM-EXHAUST,MID-PIPE [INCL. 4-8]

1263475

$275.99

5

SHIELD-HEAT,EXHAUST,REAR

5267366

$67.99

6

SHIELD-HEAT,EXHAUST,MID,OUTER

5267367

$59.99

7

SHIELD-HEAT,EXHAUST MID,INNER

5267368

$30.79

8

CLAMP-HOSE, 2.00-SS

7082359

$13.59

8

CLAMP-HOSE, 2.00-SS

7082359

$13.59

8

CLAMP-HOSE, 2.00-SS

7082359

$13.59

9

WELD-MANIFOLD,570

1263476

$127.99

10

SEAL-EXHAUST,MANIFOLD,570

3610360

Unavailable

11

BUSHING-EXHAUST,15.87 X 21

5144284

$6.39

12

BRACKET, SILENCER, FRAME

5241663

$10.39

13

SEAL, EXHAUST

5256385

$27.99

13

SEAL, EXHAUST

5256385

$27.99

14

BRKT-EXHAUST PIPE SUPPORT, BLK

5274539-329

$19.99

15

SHIELD-HEAT,FUEL TANK,1UP

5267108

$26.39

16

SHIELD-HEAT,AIRBOX

5268861

$51.99

17

SHIELD-HEAT,EXHAUST HEADPIPE

5268871

$43.99

18

BRKT-EXHAUST MOUNT,BLK

5269882-329

$12.31

19

SHIELD-FENDER

5269956

$71.99

20

WSHR-15.4X38.1X7.9 RUBBER

5414945

$4.79

21

DAMPER-VIBRATION

5414946

$4.79

22

SPRING-EXHAUST

7045211

$7.99

22

SPRING-EXHAUST

7045211

$7.99

22

SPRING-EXHAUST

7045211

$7.99

23

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.79

24

BOLT-CARR-5/16-18X1 1/2 GR5-Y

7515316

$2.39

25

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

25

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

26

SCR-M8X1.25X20,HXSOC-CSSPL-SEM

7517555

$8.79

27

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

28

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

29

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC

7547623

$3.19

30

WASHER-.328X1.25X16GA, FL-Y

7555716

$1.59

31

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

32

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

33

SHIELD-DEBRIS,FMC, BLK

5459928-070

$12.79

34

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

34

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99
