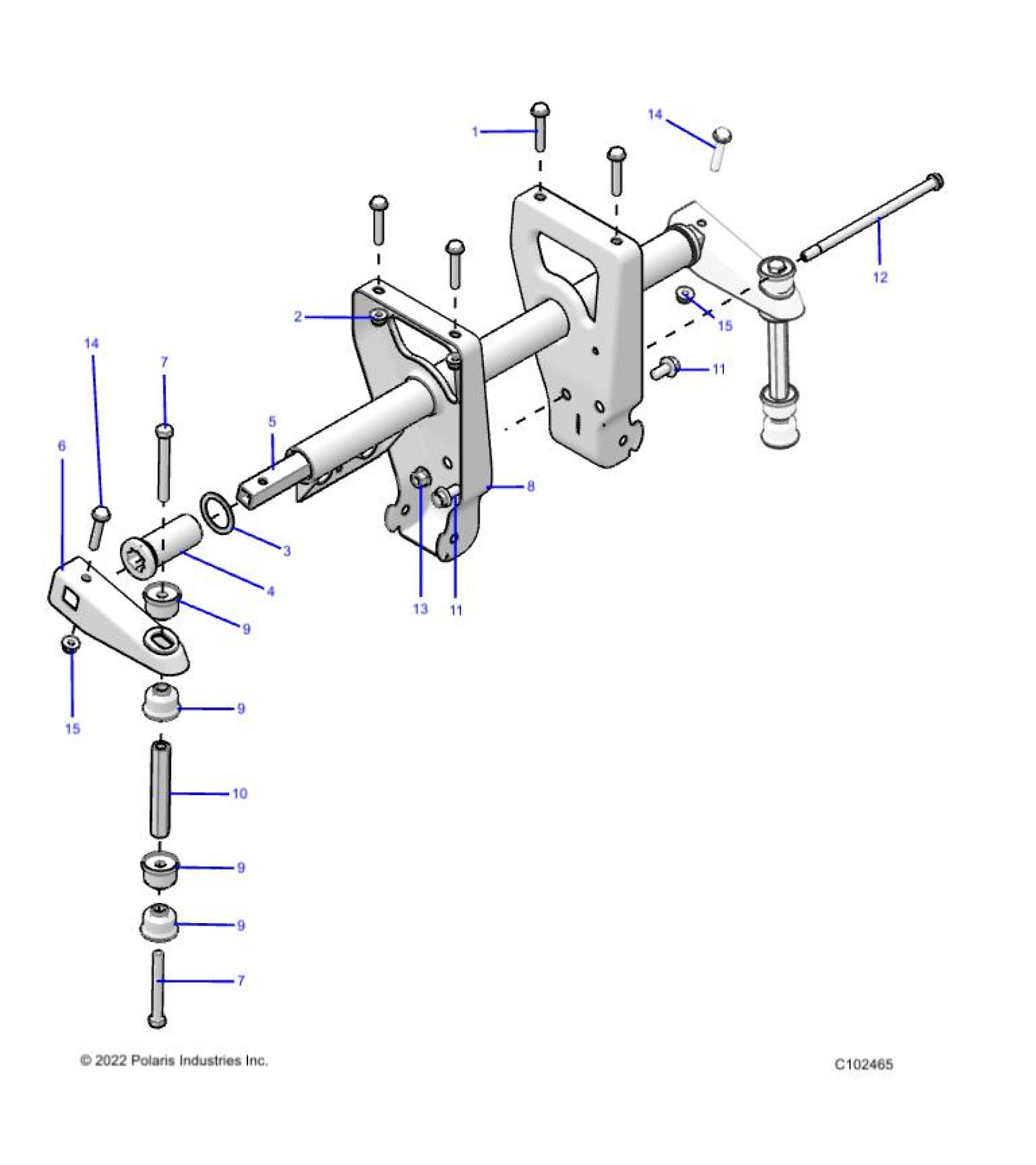

Polaris SPORTSMAN 570 EPS-EBS DAA 49S (R03) - A23SHE57AL/AS/BL/BS SUSPENSION, TORSION BAR - A23SHE57AL/AS/BL/BS (C102465) Diagram

SCREW, HXFL-5/16-18X0.75 GR5 ZY3 [CHNG FROM 6-4 6/1/2023]

7518341

$4.79

NUT-5/16-18 HX FLG NL-Y [CHNG FROM 6-4 6/1/2023]

7542343

$4.79

WSHR-1.28X1.69X.075-Y [TO 6/1/2023]

7555939

Unavailable

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

BAR, STABILIZER TUBE, MATTE BLACK

5334114-329

$91.99

ARM, STABILIZER BAR, BLACK

1543119-067

$62.92

SCREW(10)

7517231

$7.19

SCREW(10)

7517231

$7.19

WELD-STABILIZER SUPPORT,BLK

1544022-067

$171.59

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

ROD, LINKAGE, STABILIZER

5020827

$47.99

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

SCR-HXFL-M8X1.25X45 10.9 ZFB [FRM 6/1/2023]

7521332-45

$3.19

SCR-HXFL-M8X1.25X45 10.9 ZFB [FRM 6/1/2023]

7521332-45

$3.19

NUT-HXFL-M8X1.25 8 ZTB NYL [FRM 6/1/2023]

7548028

$2.39

NUT-HXFL-M8X1.25 8 ZTB NYL [FRM 6/1/2023]

7548028

$2.39
