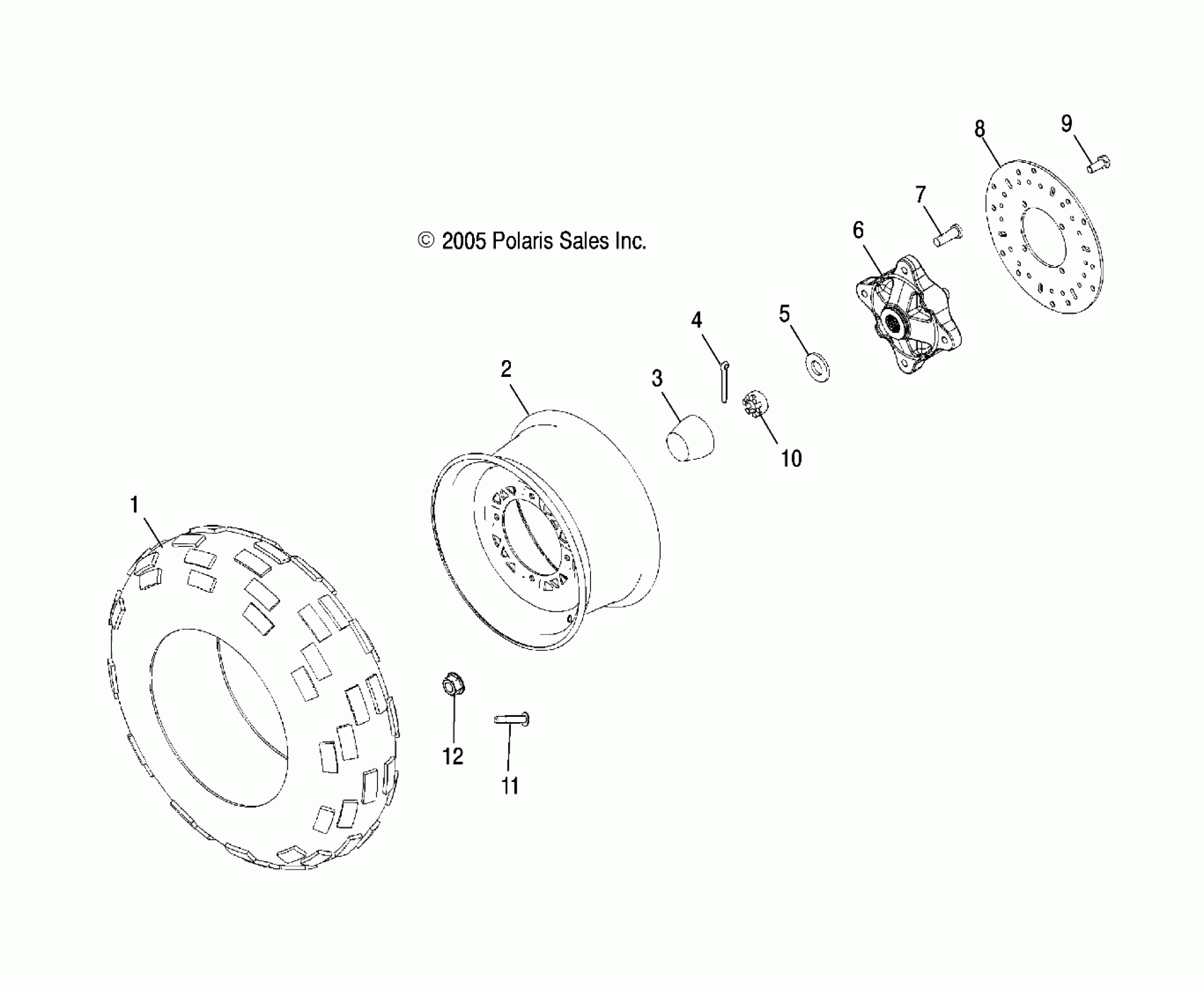

Polaris SPORTSMAN 570 EFI X2 EPS (R12) - A16SWE57A1/A7 WHEELS, FRONT TIRE and BRAKE DISC - A16SWE57A1/A7 (4999200059920005B12) Diagram

#

Description
Price

1

TIRE-25X8-12 NHS,489

5413994

$99.74

2

RIM, FRONT, BLACK

1520263-067

$90.87

3

COVER, DUST, HUB

5413427

$28.32

4

PIN, COTTER

7661404

$4.76

5

WASHER

7556004

$7.14

6

HUB, WHEEL

5134310

$93.32

7

STUD

7518378

$1.59

8

DISC-BRAKE,8.95 OD,.158

5244314

$76.89

9

BOLT

7512325

$2.38

10

NUT, SLOTTED

7542810

$3.17

11

VALVE-RIM

1525017

$6.46

12

NUT, FLANGE

7547237

$2.38
