Description

Price

1

ASM-TRANS,PDS,DIFF,BOSS [INCL. ALL]

1333475

$2,877.59

2

SEAL, TRIPLE LIP 40 X 70 X 7

3234300

$31.99

2

SEAL, TRIPLE LIP 40 X 70 X 7

3234300

$31.99

3

COVER, LH MACH

3234260

$398.30

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$27.99

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$27.99

5

CHAIN, SILENT, 17 WIDE X 1 X 86p

3234057

$263.99

6

CASE-RH MACH

3236313

$536.79

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

8

SPROCKET 19T

3234060

$239.99

9

DEFLECTOR, OIL

3234061

$23.99

10

SCREW, TAPPING TORX, 11902 X 0.5

3233749

$5.59

11

GEAR OUTPUT 91T

3234062

$251.99

12

RTNG RING, RR 7200-118

3233699

$7.19

13

SCREW, TAPPING HEX 43834 UNC X 0.75

3234247

$5.59

13

SCREW, TAPPING HEX 43834 UNC X 0.75

3234247

$5.59

13

SCREW, TAPPING HEX 43834 UNC X 0.75

3234247

$5.59

14

COVER, BEARING, CENTER DRIVE

3234063

$27.99

15

RING, RETAINING

3233364

$6.39

15

RING, RETAINING

3233364

$6.39

16

SHIM 1.700 X 1.385

3234271

$19.99

17

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

18

PINION, 13T CENTER DRIVE

3234263

$405.59

19

RING, RETAINING SHR-75

3234067

$7.99

20

WASHER THRUST, 1.270 X 0.793 X 0.065

3233176

$9.59

21

GEAR-HELICAL 35T

3236032

$131.99

22

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$39.99

23

WASHER, 1.250 X 0.876 X 0.05

3233855

$10.39

24

DOG, L/P

3234257

$143.99

25

ENGAGEMENT DOG, 6-FACE

3234258

$91.99

26

RING, RETAINING BASIC EXT 0.938

3233306

$4.79

26

RING, RETAINING BASIC EXT 0.938

3233306

$4.79

27

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

27

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

28

SPROCKET, 38T 6-FACE

3234290

$151.99

29

SHAFT, REVERSE 26T

3234280

$259.99

30

GEAR, 33T 6-FACE

3234291

$163.99

31

COLLAR-SHIFT

3234073

$31.99

32

PLATE, PARK 12-FACE

3233915

$39.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

34

SEAL, DUAL LIP 25 X 47

3234851

$35.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

36

SHAFT, INPUT-39T BOSS

3235782

$250.79

37

SILENT CHAIN, .25P X 0.4 W X 50L

3234264

$95.99

38

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$12.79

39

FORK, SHIFT

3234077

$171.99

39

FORK, SHIFT

3234077

$171.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

41

RAIL, SHIFT SHAFT

3234079

Unavailable

42

PIN

3233432

$7.19

43

TORSION SPRING

3233431

$23.99

44

CAM, CHAIN TENSIONER

3233434

$12.79

45

SHOE, CHAIN TENSIONER

3233433

$27.99

46

DRUM, SHIFT

3234360

$171.99

47

GEAR-SECTOR,31T

3233832

$31.99

48

SHAFT, SHIFT

3233831

$59.99

49

O-RING, -014

3233869

$5.59

50

Pawl, Detent

3233829

$31.99

51

SPRING, COMPRESSION DETENT

3234578

$12.79

52

COVER, SECTOR GEAR MACH

3234188

$107.99

53

BELLCRANK, .510 HOLE 92~

3234584

$23.99

54

NUT, LOCK, HEX FLANGE NYLON 45428

3233961

$2.79

55

SWITCH, ROTARY 2-PIN ITW

7661999

$111.99

56

RING, RETAINING, BASIC EXT.

3233834

$10.39

57

GEAR, SECTOR 16T

3233839

$31.99

58

SENSOR-SPEED,TRANS

4013908

Unavailable

59

Star, Detent

3233909

$23.99

60

O-RING, -012

3233076

$6.39

61

GEAR, 13T SNORKEL

3234262

$307.99

62

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

63

RING, RETAINING BASIC EXT n 22

3234336

$5.59

64

TUBE, SNORKEL MACH

3234278

$95.99

65

SCREW, TORX PAN HD 43834 X 0.75

3234086

$5.59

65

SCREW, TORX PAN HD 43834 X 0.75

3234086

$5.59

65

SCREW, TORX PAN HD 43834 X 0.75

3234086

$5.59

66

SHIM 1.180 X 0.995

3234272

$31.99

67

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

68

SEAL, TRIPLE LIP, 25 X 80 X 10

3234113

$35.99

69

TUBE, VENT 90~ 1/4" LINE

3234230

$9.59

70

SCREW, TAPPING, HEX WASHER HD

3234114

$7.19

71

PIN, DOWEL 5/16 X 1

3234244

$7.19

72

PLUG, 3/4-16 HOLLOW HEX

3233794

$15.19

73

COMPRESSION, SPRING

3234089

$23.99

73

COMPRESSION, SPRING

3234089

$23.99

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

75

WASHER-CUP

3234091

$9.59

75

WASHER-CUP

3234091

$9.59

76

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

77

SHIM, 2.040 X 1.63

3234273

$12.79

78

DOG, ENGAGEMENT

3234928

$67.99

79

TORSION SPRING

3234276

$7.99

80

FORK, SHIFT

3234285

$59.99

81

SIDE, GEAR 36T, SUBASSEMBLY

3234363

$219.99

82

CARRIER SUBASSEMBLY

3234470

$259.99

83

SIDE, GEAR 36T DISCONNECT, SUBASSEMBLY

3234362

$283.99

84

GEAR SUBASSEMBLY

3234469

$67.99

85

PIN, DOWEL 10 X 45

3234238

$13.59

86

COVERSUBASSEMBLY

3234471

$203.99

87

SCREW, CAP HH 45428 X 1.5

3234267

$7.19

88

SOLENOID

3235478

$275.99

89

WASHER, FENDER .284X1.363X.048

3234268

$7.19

93

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.99

94

SPACER

3235243

$9.59

95

O-RING

3234302

$7.19

96

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

Unavailable

97

SUBASSEMBLY-COVER,LH,PDS

3236312

$449.06

98

1 INCH PDS

3235594

$410.01

99

BRACKET, WIRE HARNESS

3235350

$8.79

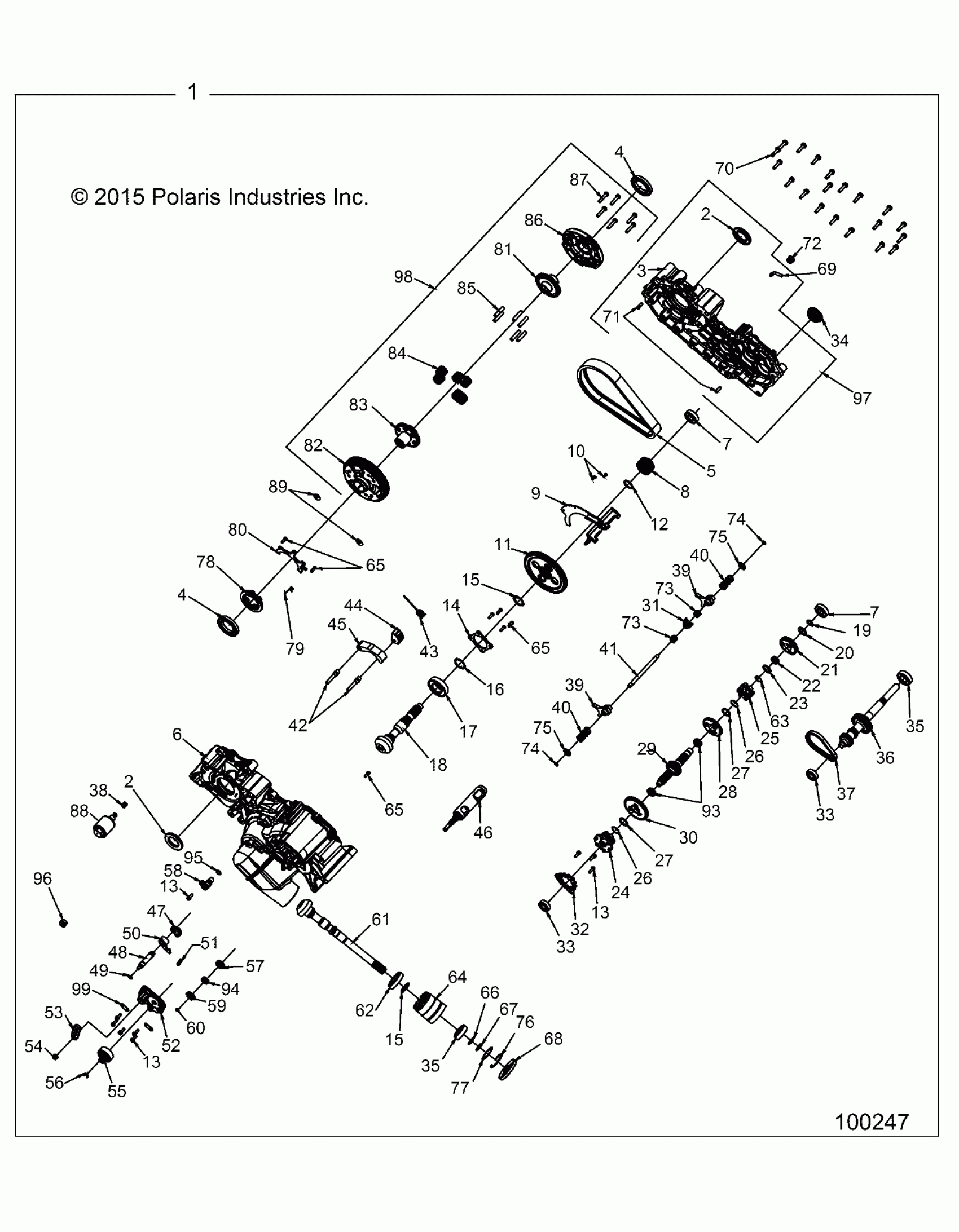

Polaris SPORTSMAN 570 EFI X2 EPS (R12) - A16SWE57A1/A7 DRIVE TRAIN, MAIN GEARCASE - A16SWE57A1/A7 (100247) Diagram
