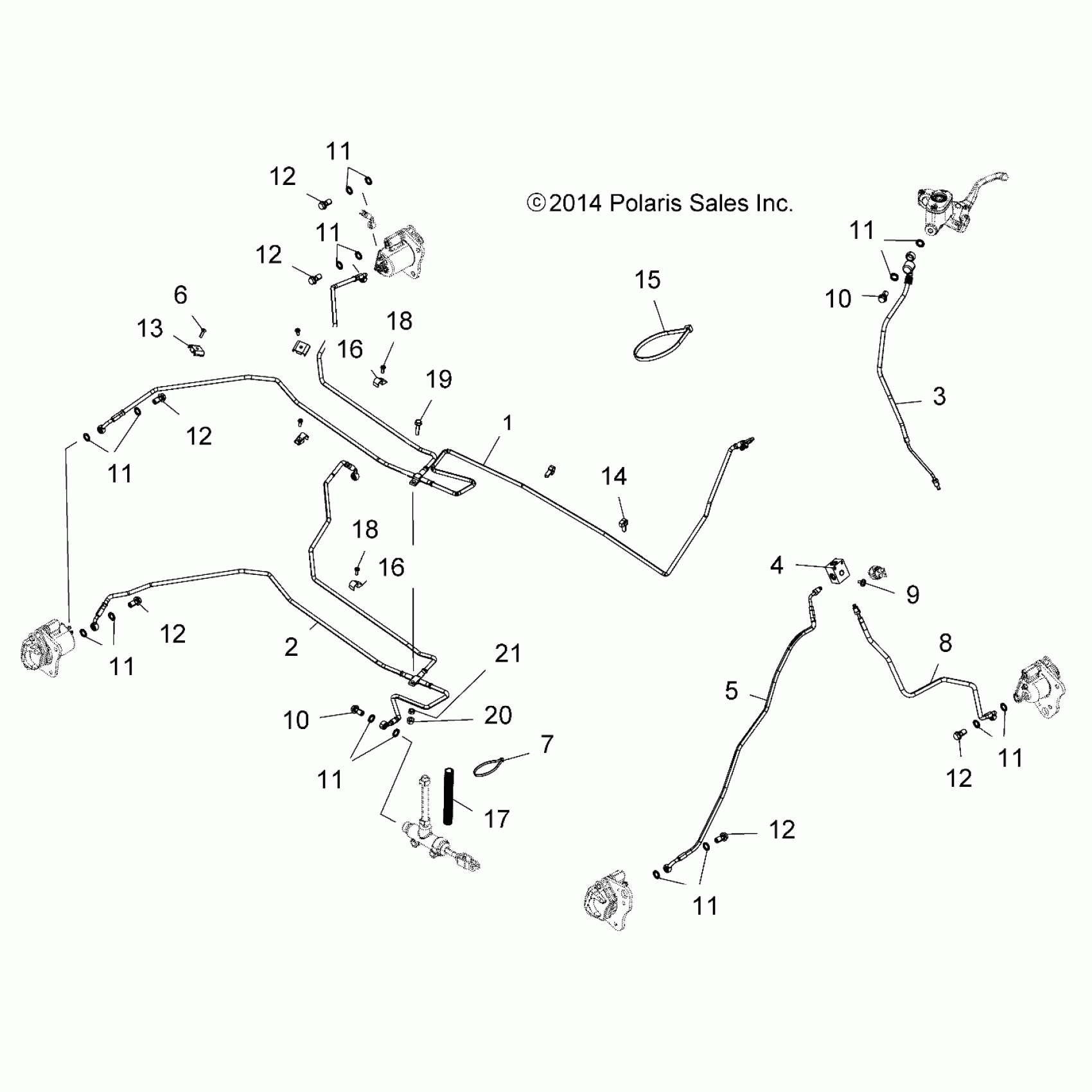

Polaris SPORTSMAN 570 EFI X2 EPS (R12) - A16SWE57A1/A7 BRAKES, BRAKE LINES - A16SWE57A1/A7 (49ATVBRAKELINE15570X2) Diagram

#

Description
Price

1

LINE, BRAKE, AUXILARY

1912400

$235.99

2

LINE, BRAKE, SERVICE

1912401

$195.99

3

LINE, BRAKE, POD

1910913

$63.99

4

FITTING, CROSS

7052292

$39.99

5

LINE, BRAKE, RIGHT FRONT

1910839

$75.99

6

Screw

7517756

$1.49

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE, BRAKE, LEFT FRONT

1910838

$75.99

9

Screw

7512084

$1.49

10

BOLT, BANJO

1910499

$5.59

10

BOLT, BANJO

1910499

$5.59

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

12

BOLT, BANJO

1910499

$5.59

12

BOLT, BANJO

1910499

$5.59

12

BOLT, BANJO

1910499

$5.59

12

BOLT, BANJO

1910499

$5.59

12

BOLT, BANJO

1910499

$5.59

12

BOLT, BANJO

1910499

$5.59

13

CLIP, RETAINING

7670126

$4.79

14

Clip

7670102

$2.39

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

CLIP, HALF

7081940

$3.99

16

CLIP, HALF

7081940

$3.99

17

TUBING, CONVOLUTED

8360052-25

Unavailable

18

SCREW

7512024

$4.79

18

SCREW

7512024

$4.79

19

SCREW

7515153

$3.99

20

Nut, Flange

7542153

$1.59

21

NUT

7542105

$3.99
