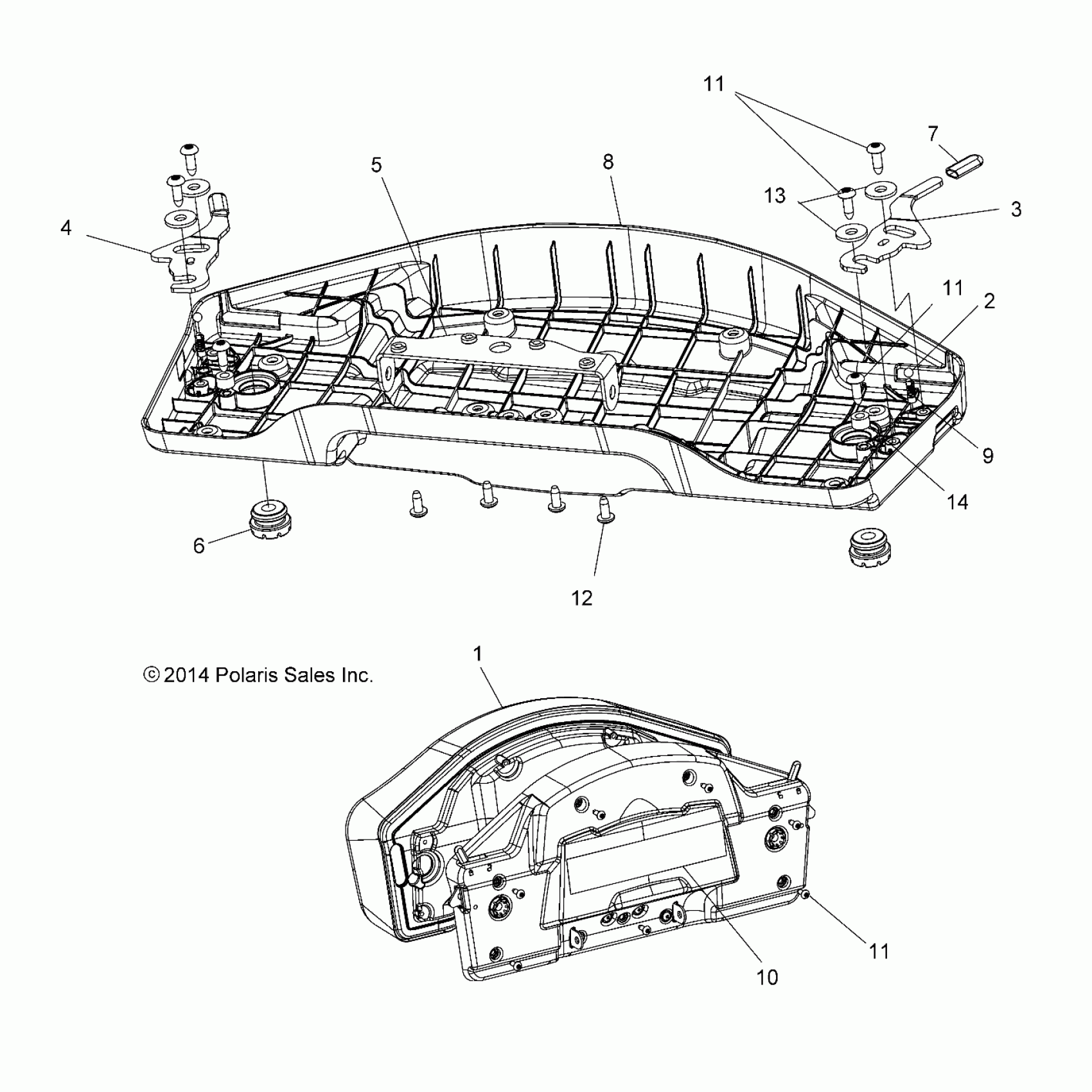

Polaris SPORTSMAN 570 EFI X2 EPS (R12) - A16SWE57A1/A7 BODY, SEAT, PASSENGER, BOTTOM - A16SWE57A1/A7 (49ATVSEATBOTTOM15570X2) Diagram

Description

Price

ASM., SEAT, BLACK [INCL. 1-14]

2684903-070

$409.49

ASM., SEAT BUN, PASSENGER, BLACK

2684641-070

Unavailable

COVERING, SEAT, BLACK

2684606-070

$123.99

BEARING, BALL, DETENT

3514698

$1.59

BRKT-LEVER,LH

5254314

$31.99

BRKT-LEVER,RH

5254315

$31.99

BRKT-SEAT PIVOT

5254316

$14.39

GROMMET. SEAT LATCH

5412994

Unavailable

CAP, VINYL

5438230

$5.59

COVER, PASSENGER SEAT BOTTOM

5438565

$59.99

SPRING-DETENT

7043668

$6.15

DECAL, WARNING, CONTAINER/PASSENGER

7173890

Unavailable

SCREW

7519045

$3.19

SCREW

7519045

$3.19

SCREW

7519045

$3.19

SCREW

7519092

$1.49

WASHER, FLAT

7555960

$3.99

SPACER-.26X.50X.31

7556318

$2.39
