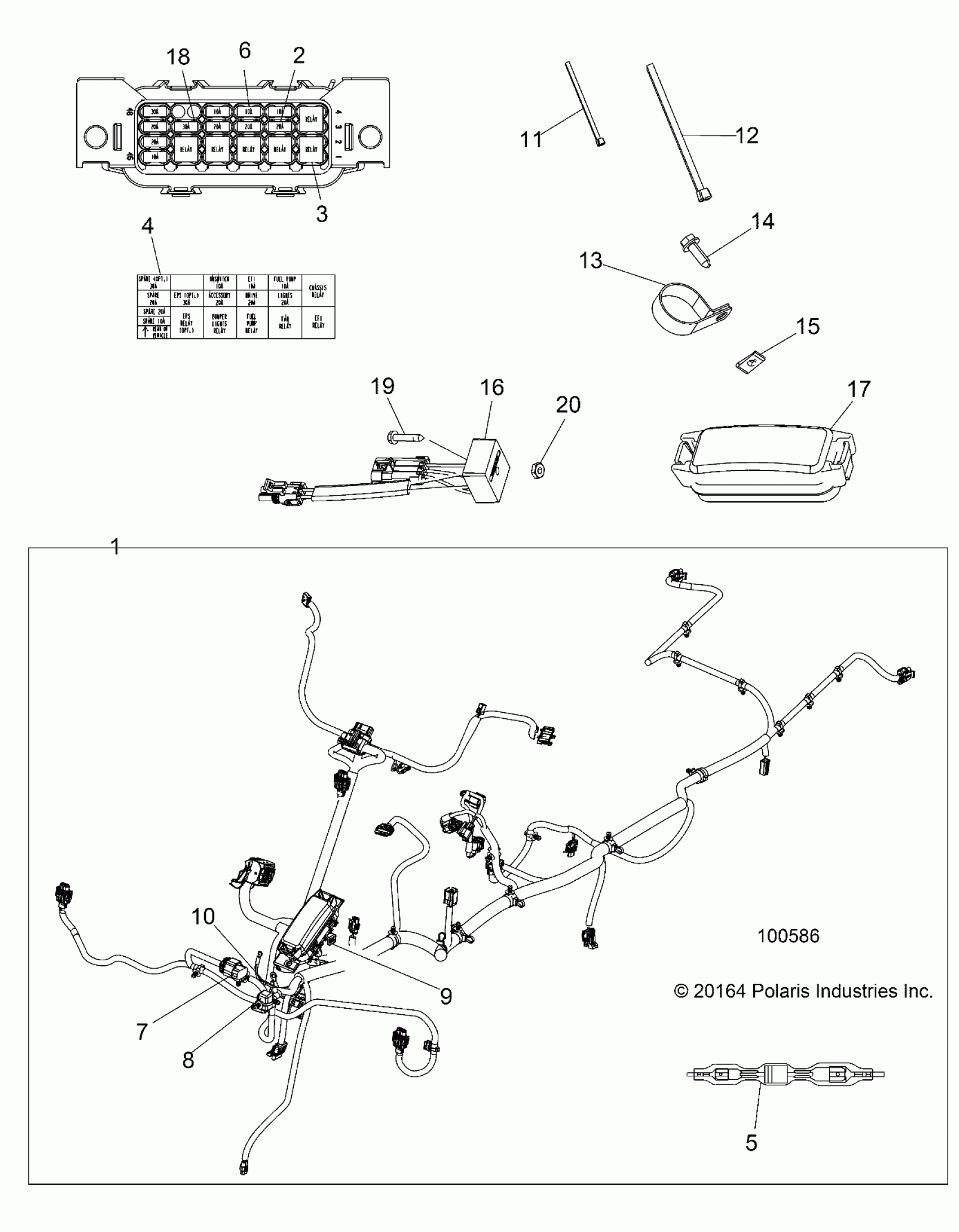

Polaris SPORTSMAN 570 EFI X2 EPS (R10) - A18SWE57B1 ELECTRICAL, HARNESS - A18SWE57B1 (100586) Diagram

#

Description
Price

1

HARNESS-MAIN,570 EFI,X2,EPS [INCL COVER]

2412777

$1,104.59

1

COVER, FUSEBOX

4015011

$55.99

2

FUSE-PARK,20 AMP

2434017

Unavailable

3

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

4

LABEL, FUSE BOX

7185329

Unavailable

5

DIODE, 6 AMP

2411035

$51.99

6

FUSE-IGNITION,10 AMP

2434016

$4.79

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

BREAKER-CIRCUIT,15 AMP,SEALED

2411086

$39.99

9

DIODE, 6 AMP

2410000

$35.99

10

KIT, FUSE LINK, .8MM

2202607

$39.99

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

13

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

14

SCREW

7512232

$1.49

15

NUT, U-TYPE SPEED

7670057

$1.49

16

RELAY, 9A, LONG LD

4012829

$71.99

17

COVER, FUSEBOX, 48WAY

4015011

$55.99

17

SEAL, FUSE CENTER

5415598

$8.79

18

FUSE-MAIN,30 AMP

2434015

$7.19

19

SCREW

7518418

$3.99

20

NUT

7542122

$1.49
