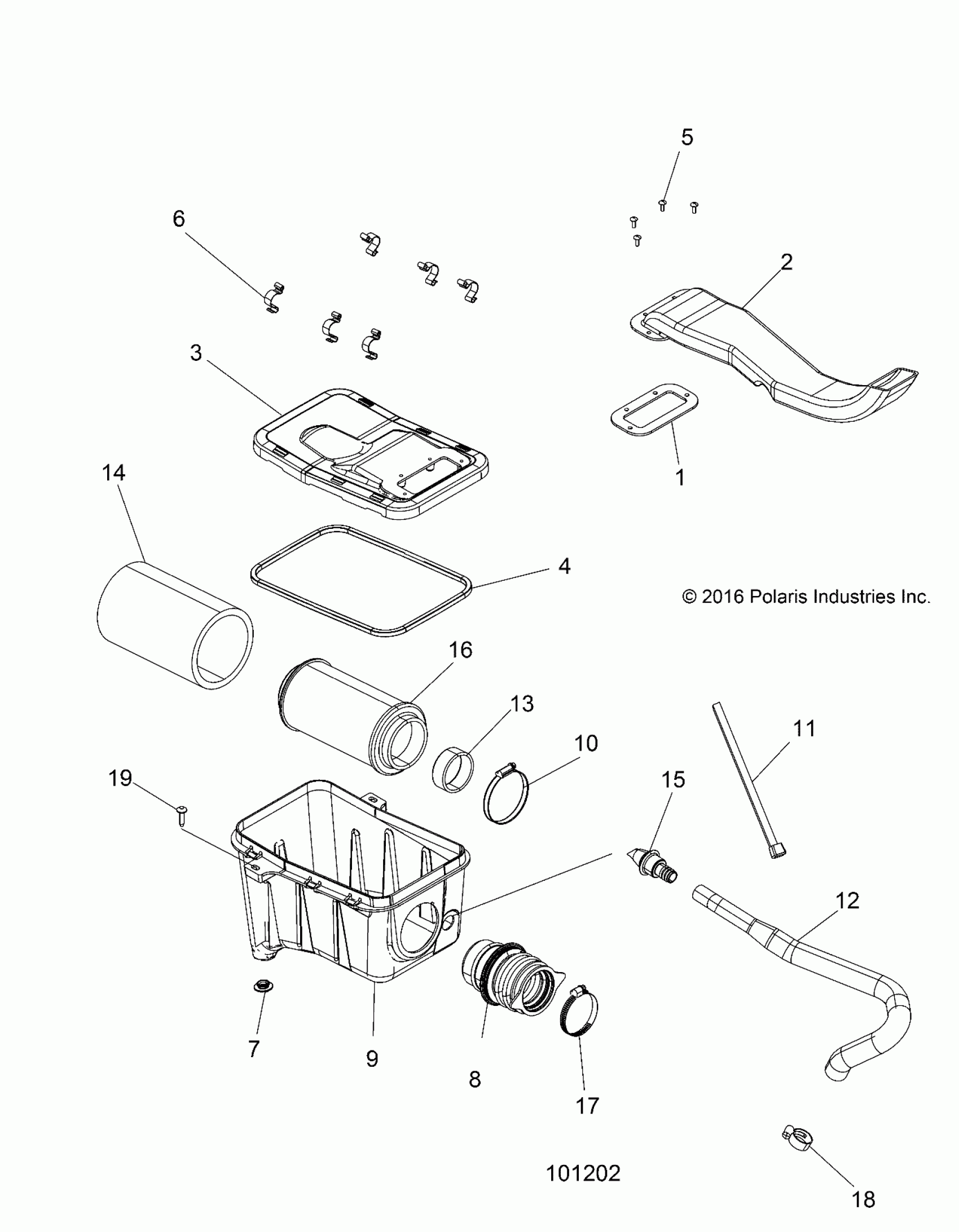

Polaris SPORTSMAN 570 EFI X2 EPS (R10) - A17SWE57A1 ENGINE, AIR INTAKE SYSTEM - A17SWE57A1 (101202) Diagram

Description

Price

Gasket, Intake

5411422

$6.59

DUCT, AIR INLET

5450580

$36.17

COVER, AIR BOX

5450388

$44.51

SEAL, AIRBOX COVER

5813949

$28.32

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

CLIP-AIR BOX

5242044

$9.52

PLUG-COMPARTMENT

5412981

$3.79

BOOT, INTAKE

5414638

$28.32

BOX, AIR INTAKE

5450387

$137.60

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

CABLE-TIE,10-102MM,WEATH.-RES. [14"]

7080761

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES. [8"]

7080138

$2.41

HOSE, BREATHER

5415276

$42.74

SLEEVE, CARB, INNER

5433847

$14.56

Filter, Precleaner Sleeve

5811633

$11.90

VALVE, BREATHER

7052577

$28.32

FILTER, AIR INTAKE

7082101

$27.78

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.62

Clamp, Narrow Band

7080413

$3.17

CLAMP, HOSE

7081174

$7.14

SCREW

7517685

$1.59
