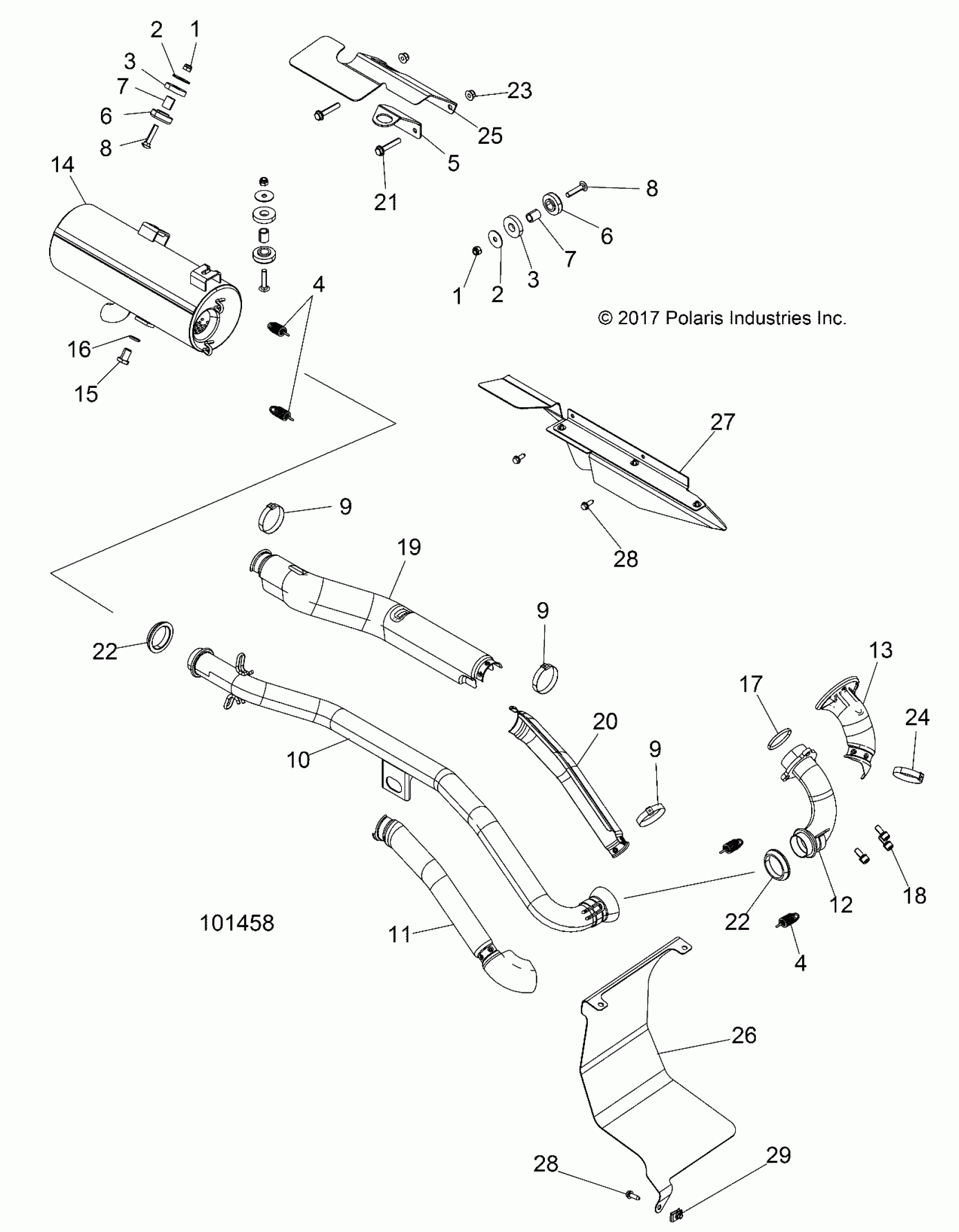

Polaris SPORTSMAN 570 EFI X2 EPS (R04) - A19SWE57B1 ENGINE, EXHAUST - A19SWE57B1 Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

WASHER, RUBBER

5414945

$4.76

3

WASHER, RUBBER

5414945

$4.76

4

SPRING

7041804

$8.89

4

SPRING

7041804

$8.89

5

BRKT-EXHAUST MNT,PLATED

5258198

$14.56

6

DAMPER-VIBRATION

5414946

$4.84

6

DAMPER-VIBRATION

5414946

$4.84

7

BUSHING

5010192

$6.35

7

BUSHING

5010192

$6.35

8

BOLT

7515316

$2.38

8

BOLT

7515316

$2.38

9

CLAMP-HOSE, 2.00-SS

7082359

$13.49

9

CLAMP-HOSE, 2.00-SS

7082359

$13.49

9

CLAMP-HOSE, 2.00-SS

7082359

$13.49

10

ASM-EXHAUST PIPE,570 EFI,SS [INCL. PIPE, SHIELDS, CLAMPS]

1263100

$353.40

11

SHIELD-HEAT,EXHAUST,MID

5260801

$77.44

12

WELD-MANIFOLD

1263099

$149.75

13

SHIELD-HEAT,EXHAUST HEADPIPE

5260800

$36.41

14

WELD-EXHAUST,SILENCER

1263139

$469.99

15

BOLT

7520756

$5.56

16

WASHER, CLEAN OUT

7557077

$9.99

17

GASKET-EXHAUST SEALING

5253989

$28.32

18

SCREW

7517555

$8.73

19

SHIELD-HEAT,EXHAUST,REAR

5265059

$87.13

20

SHIELD-HEAT,EXHAUST MID,INNER

5260808

$82.29

21

Bolt

7518341

$4.76

22

SEAL, EXHAUST

5256385

$28.32

22

SEAL, EXHAUST

5256385

$28.32

23

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

24

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.76

25

SHIELD-HEAT,EXHAUST

5259925

$43.56

26

SHIELD-FUEL TANK,FRAME MNT,TRG

5262925

$28.32

27

SHIELD-HEAT,AIRBOX

5263227

$24.27

28

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.19

28

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.19

29

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59
