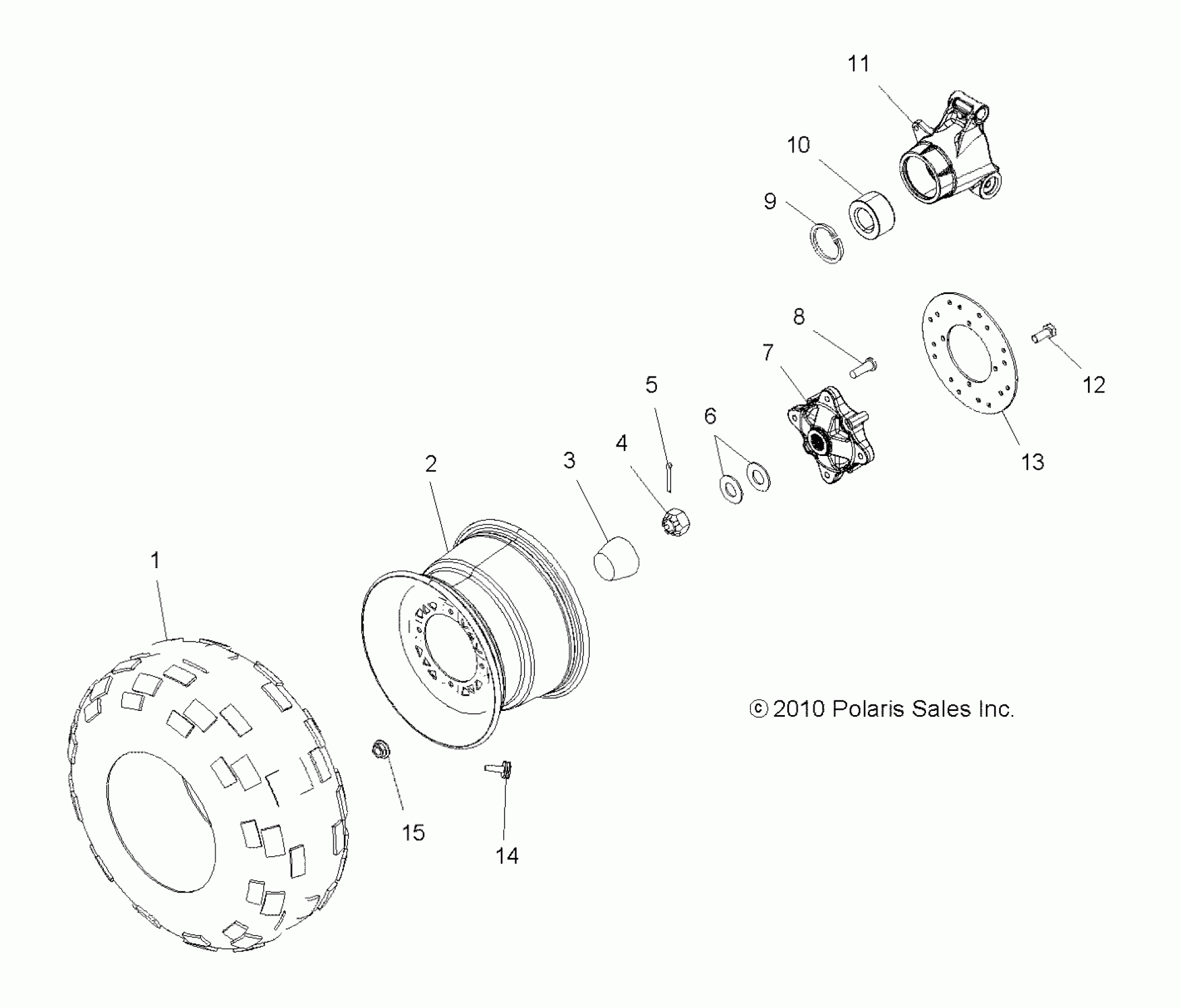

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 WHEELS, REAR TIRE and BRAKE DISC - A18SUE57N5 (49ATVWHEELREAR11SP500) Diagram

#

Description
Price

1

TIRE, REAR, 25X12.5-12

5415548

$105.59

2

WELD-RIM,REAR,12X8.0,BLK

1520457-067

Unavailable

3

COVER, DUST, HUB [TO 4/1/2018]

5413427

$24.27

3

CAP-HUB,DUST [FROM 4/1/2018]

5413976

$3.99

4

NUT, CASTLE

7547337

$1.99

5

PIN, COTTER

7661404

$4.79

6

WASHER, CONE

7555796

$7.99

7

HUB, REAR WHEEL

5135113

Unavailable

8

STUD

7518378

$1.59

9

RING, RETAINING

7710440

$10.39

10

BEARING, WHEEL [TO 10/1/2018]

3514635

$39.99

10

BEARING-WHEEL,HD,40X74X40MM [FROM 10/1/2018]

3515087

$63.99

11

CARRIER-BEARING,WHEEL,LH(MACH)

5139363

$111.99

11

CARRIER-BEARING,WHEEL,RH(MACH)

5137436

$103.99

12

BOLT

7518903

$3.99

13

DISC, BRAKE, REAR

5248250

$75.99

14

VALVE-RIM

1525017

$5.59

15

NUT, FLANGE

7547237

$2.39
