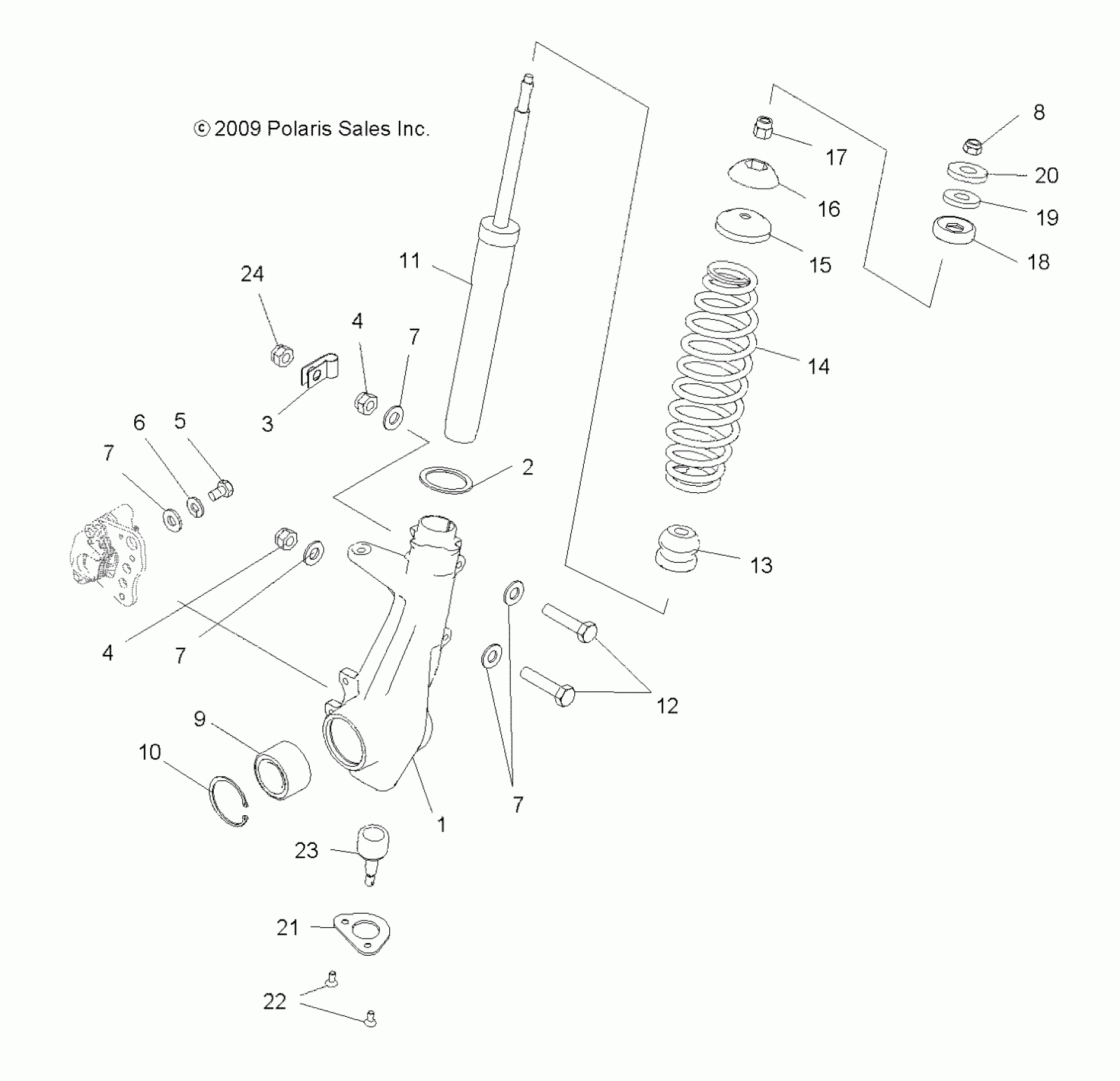

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 SUSPENSION, FRONT STRUT - A18SUE57N5 (49ATVSTRUT10SP500I) Diagram

#

Description
Price

1

ASM., HUBSTRUT, LH [INCL. 9,10,21,22,23][TO 10/1/2018]

1824253

Unavailable

1

ASM., HUBSTRUT, RH [INCL. 9,10,21,22,23][TO 10/1/2018]

1824254

Unavailable

1

ASM-HUBSTRUT,HD,RH [INCL. 9,10,21,22,23][FROM 10/1/2018]

1824809

Unavailable

1

ASM-HUBSTRUT,HD,LH [INCL. 9,10,21,22,23][FROM 10/1/2018]

1824808

Unavailable

2

WASHER-2.06X2.62X.105-Y

5211115

$3.99

3

CLAMP-CABLE

7080367

$2.39

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

SCREW, CAP

7512365

$1.49

6

WASHER, SPRING LOCK

7552901

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

9

BEARING-WHEEL, 35X64X37MM [TO 10/1/2018]

3514634

$39.99

9

BEARING-WHEEL,35X64X37MM HD [FROM 10/1/2018]

3515088

$63.99

10

RING, RETAINING

7710507

$2.39

11

STRUT, FRONT

7041762

$123.99

12

BOLT

7512312

$1.49

13

BUMPER-MCU,17.8MM ID

5412665

$6.39

14

SPRING, COMPRESSION, BLACK

7043247-067

$91.99

15

RETAINER-SPRING,STRUT

5243364

$19.99

16

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

17

SPACER

5132062

$19.99

18

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

19

SPACER-RUBBER

5810291

$3.99

20

WASHER

7555749

$1.49

21

BRACKET, BALL JOINT

5258210

$11.19

22

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

23

JOINT, BALL GREASELESS

7061193

$67.99

24

NUT, NYLOK, THIN

7542344

$3.99
