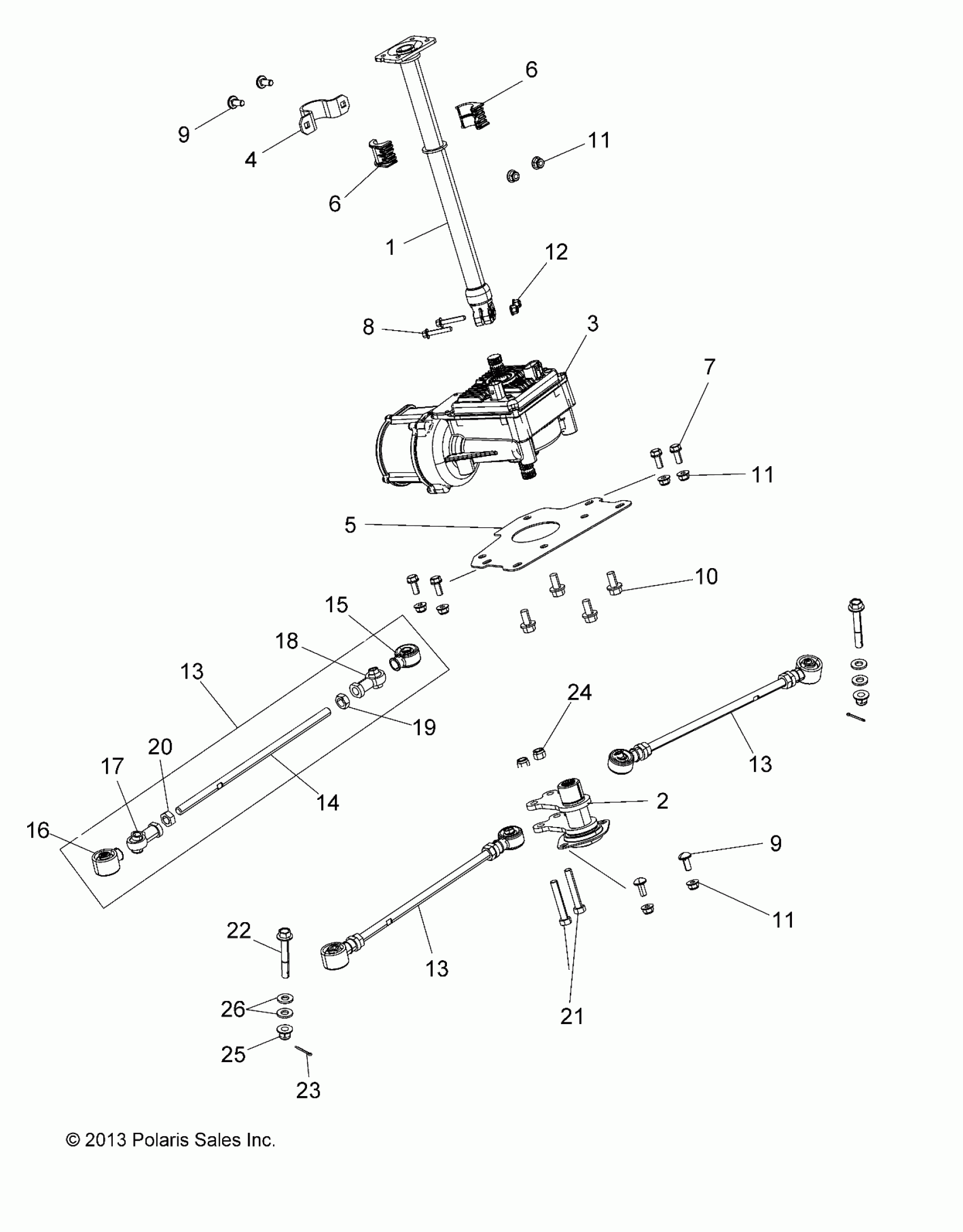

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 STEERING, EPS - A18SUE57N5 (49ATVSTEERING14SP570) Diagram

#

Description
Price

1

WELD-STEERING POST,UPPER,BLK

1824750-329

$147.99

2

ASM., STEERING POST, LOWER

1824101

$143.99

3

ASM-POWER STEERING,ATV,H-O

2414461

$2,359.99

4

BRACKET, UPPER STEERING BUSHING

5257028

$32.37

5

PLATE, MOUNT, POWER STEERING

5257877-329

$23.99

6

BUSHING-UPPER STEERING,1 IN

5439731

$6.39

6

BUSHING-UPPER STEERING,1 IN

5439731

$6.39

7

SCREW

7515398

$2.39

8

SCREW

7516827

$6.39

9

Bolt, Carriage

7517428

$2.39

9

Bolt, Carriage

7517428

$2.39

10

BOLT

7518558

$3.99

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

NUT-M6 FLANGE,NYLOC

7547274

$1.49

13

ASM., TIE ROD

1822851

$103.99

13

ASM., TIE ROD

1822851

$103.99

13

ASM., TIE ROD

1822851

$103.99

14

ROD, TIE

5134242

$39.99

15

Boot, Seal, Rod End

5412928

$11.32

16

Boot, Seal, Rod End

5412929

$11.19

17

ROD, END

7061138

$51.99

18

ROD, END

7061139

$55.99

19

Nut

7542711

$2.39

20

NUT, LH, JAM

7547028

$2.39

21

Screw

7515415

$1.49

22

Bolt

7517909

$5.59

23

Pin, Cotter

7661203

$1.49

24

Nut, Nylok

7542439

$1.49

25

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

26

Washer, Flat

7556099

$1.59
