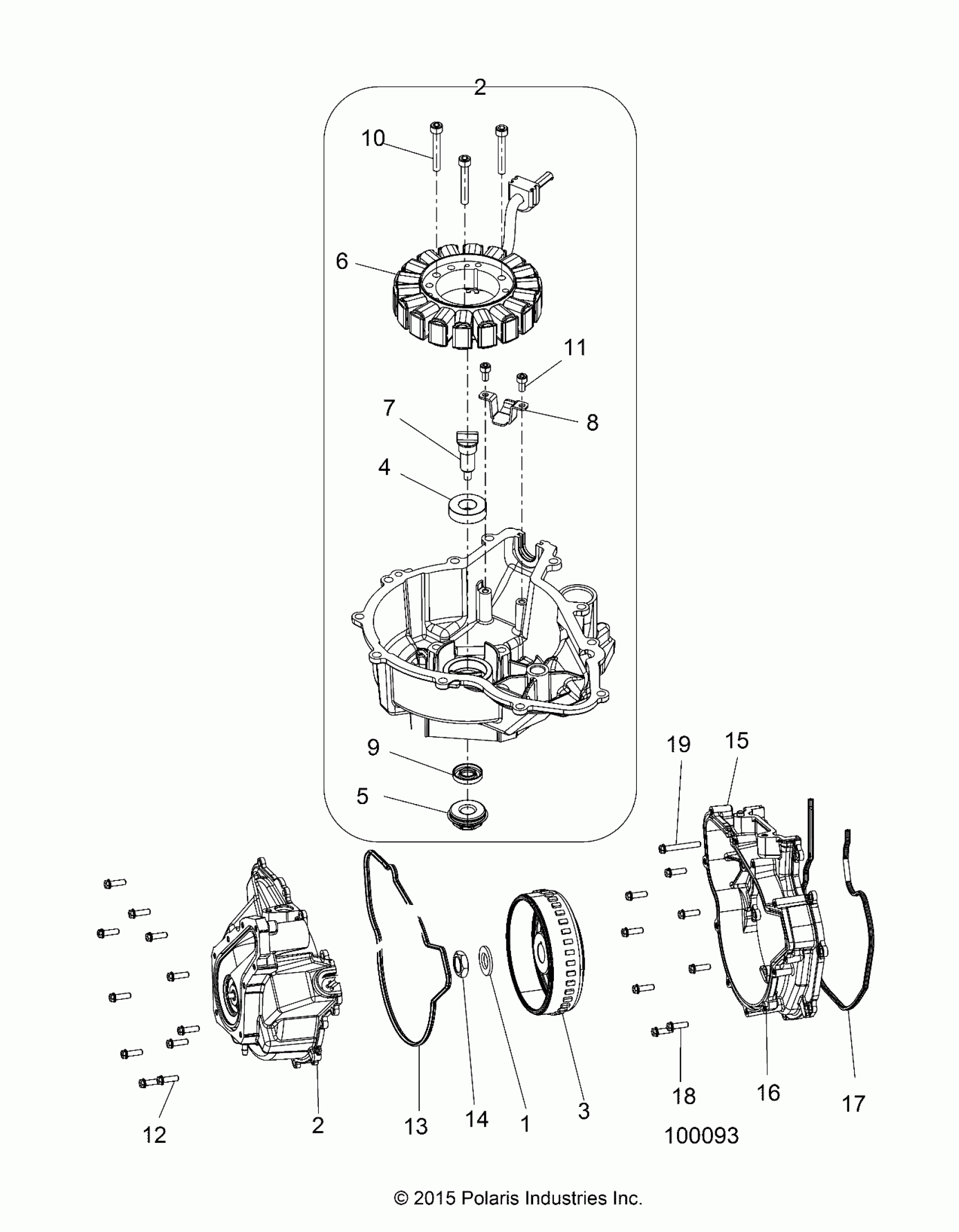

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 ENGINE, STATOR COVER and FLYWHEEL - A18SUE57N5 Diagram

#

Description
Price

1

WASHER

7556878

$3.99

2

KIT - IGNITION COVER [INCL COVER, FITTING, IMPELLER, 4,5,7,9]

2205170

$351.99

2

ASM-IGNITION CVR W/FITTING

3022724

Unavailable

2

KIT - IGNITION COVER [INCL COVER, FITTING, IMPELLER, 4,5,7,9]

2205170

$351.99

2

ASM-IGNITION CVR W/FITTING

3022724

Unavailable

3

FLYWHEEL

4016074

$255.99

4

BEARING, SHAFT, WATERPUMP

3514696

$10.32

5

SEAL-WATERPUMP SHAFT,WATER

3610173

Unavailable

6

STATOR

4014839

$480.30

7

SHAFT-PUMP DRIVE,G-1CYL

5138035

$39.99

8

GUIDE-STATOR LEAD

5254832

$7.19

9

SEAL, TYPE S

5411197

$24.27

10

SCREW

7510005

$5.70

11

SCREW

7517847

$3.19

12

SCREW

7518576

$3.19

13

GASKET, STATOR COVER

5415086

$39.99

14

NUT-HEX,M18X1.5 4 JAM,RH

7547488

$7.19

15

PIN-DOWEL,M6X10

5137611

Unavailable

15

ASM., COVER, ENGINE INTER [INCL. PIN]

3022859

Unavailable

16

DWL-HOL,M8X8

7661977

$7.19

17

GASKET, MAG/INTER COVER

5415085

$39.99

18

SCREW

7518576

$3.19

19

SCR-HXFL-M8X1.25X45 10.9ACU

7519209

$3.99
