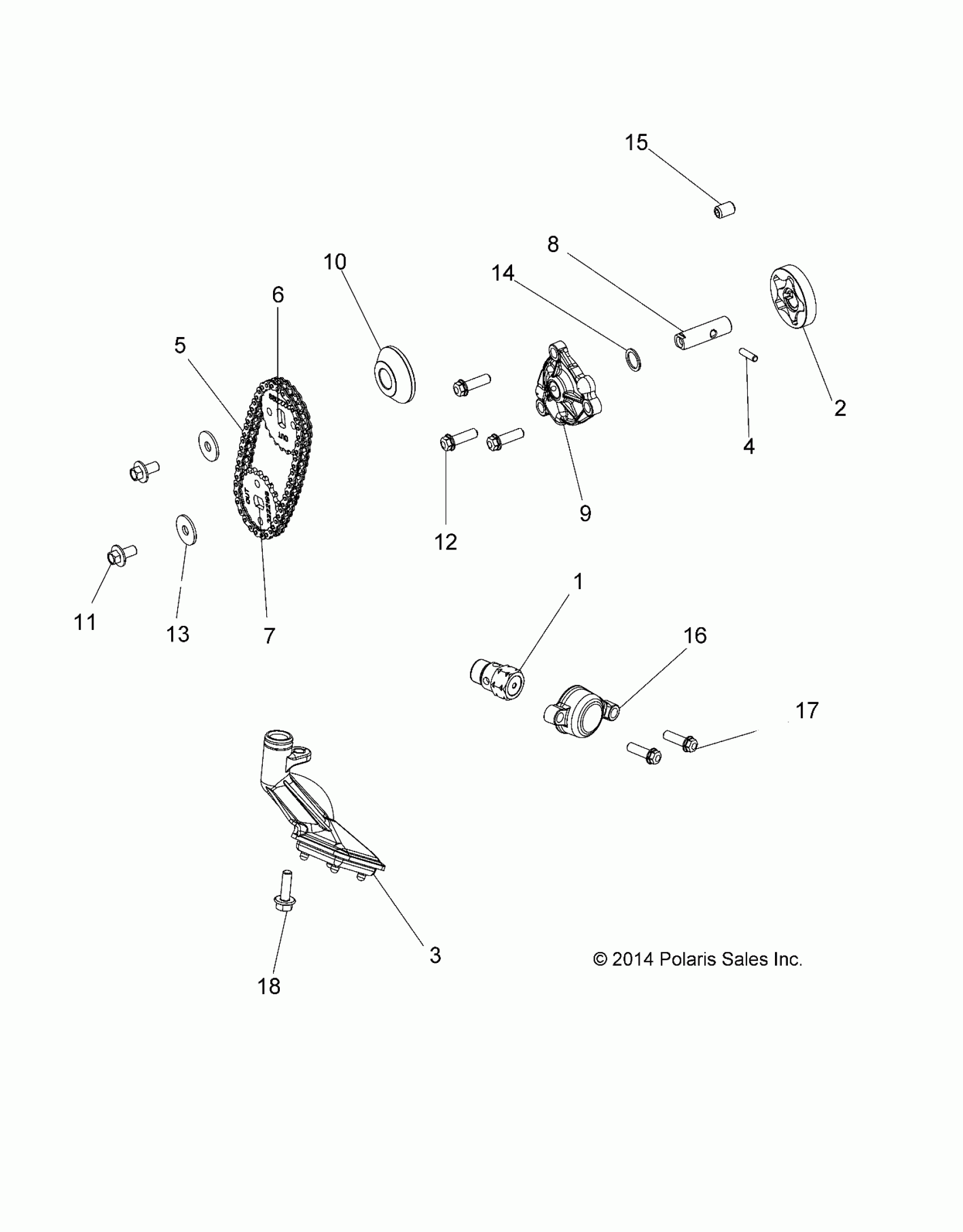

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 ENGINE, OIL PUMP - A18SUE57N5 (49ATVOILPUMP15570AA) Diagram

#

Description
Price

1

ASM., REGULATOR VALVE

2521459

$51.99

2

ASM-GEROTOR

1204293

$55.99

3

OIL PICKUP

2521804

$31.99

4

PIN, SOLID

3022308

$3.99

5

CHAIN, OIL PUMP DRIVE

3222216

$27.99

6

SPROCKET-23T,DRIVE

3222198

$12.79

7

SPROCKET-21T,DRIVEN

3222199

$12.79

8

SHAFT-OIL PUMP

5138077

$27.99

9

COVER, OIL PUMP

5138320

$35.99

10

SPACER-SPROCKET

5137451

$39.99

11

SCREW

7517257

$9.59

12

SCREW

7518576

$3.19

13

WASHER

7556054

$10.39

14

WASHER-11.2X15.0X1.0

7556570

$3.99

15

JET-OIL,OIL PUMP

2540080

$9.59

16

COVER

5138339

$11.19

17

SCREW

7518576

$3.19

18

SCR-M6X1.0X22.0,HX/FL-Y/D

7517398

$3.19
