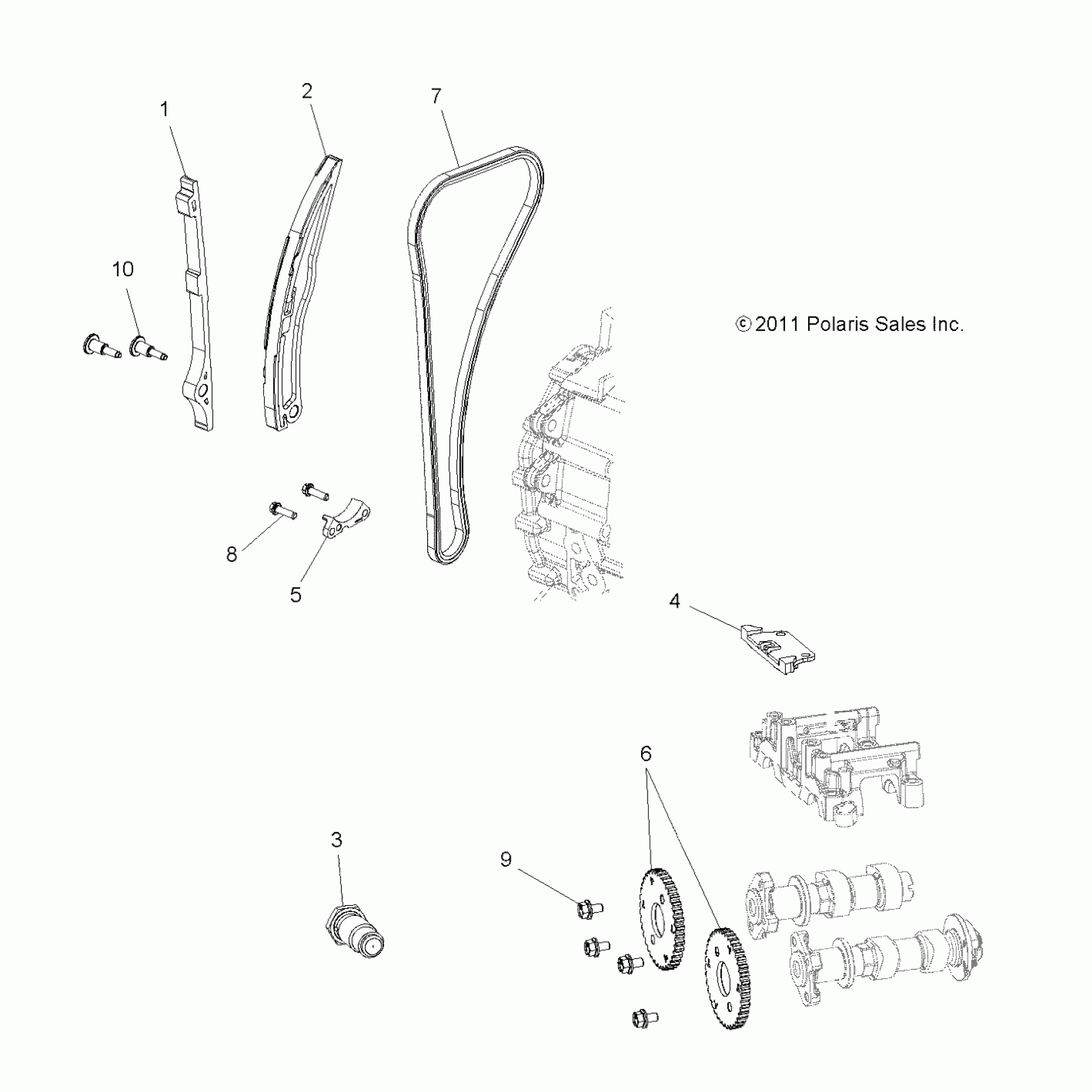

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 ENGINE, CAM CHAIN and SPROCKET - A18SUE57N5 (49RGRCAM12RZR570) Diagram

#

Description

Price

1

GUIDE-CAM DRIVE,FIXED

3023241

$13.75

2

GUIDE-CAM DRIVE,TENSIONED

3023240

$28.32

3

GASKET-TENSIONER [TO 11/1/2017]

5813449

$7.27

3

TENSIONER-CAMCHAIN,HYD [INCL. TENSIONER GASKET][FROM 11/1/2017]

3023501

$89.03

3

GASKET-TENSIONER [FROM 11/1/2017]

5814753

$7.27

3

TENSIONER-CAMCHAIN,HYD [INCL. TENSIONER GASKET][TO 11/1/2017]

3023242

$89.03

4

GUIDE-CAM DRIVE,UPPER

3023243

$28.32

5

GUIDE-CAM DRIVE,LOWER

3022711

$10.51

6

SPROCKET-CAM,DRIVEN,DOHC

3222265

$36.41

7

CHAIN-CAMSHAFT 144L

3222264

$80.94

8

SCREW

7518576

$3.17

9

SCREW

7519164

$3.97

10

BOLT, SHOULDER

7519165

$13.49
