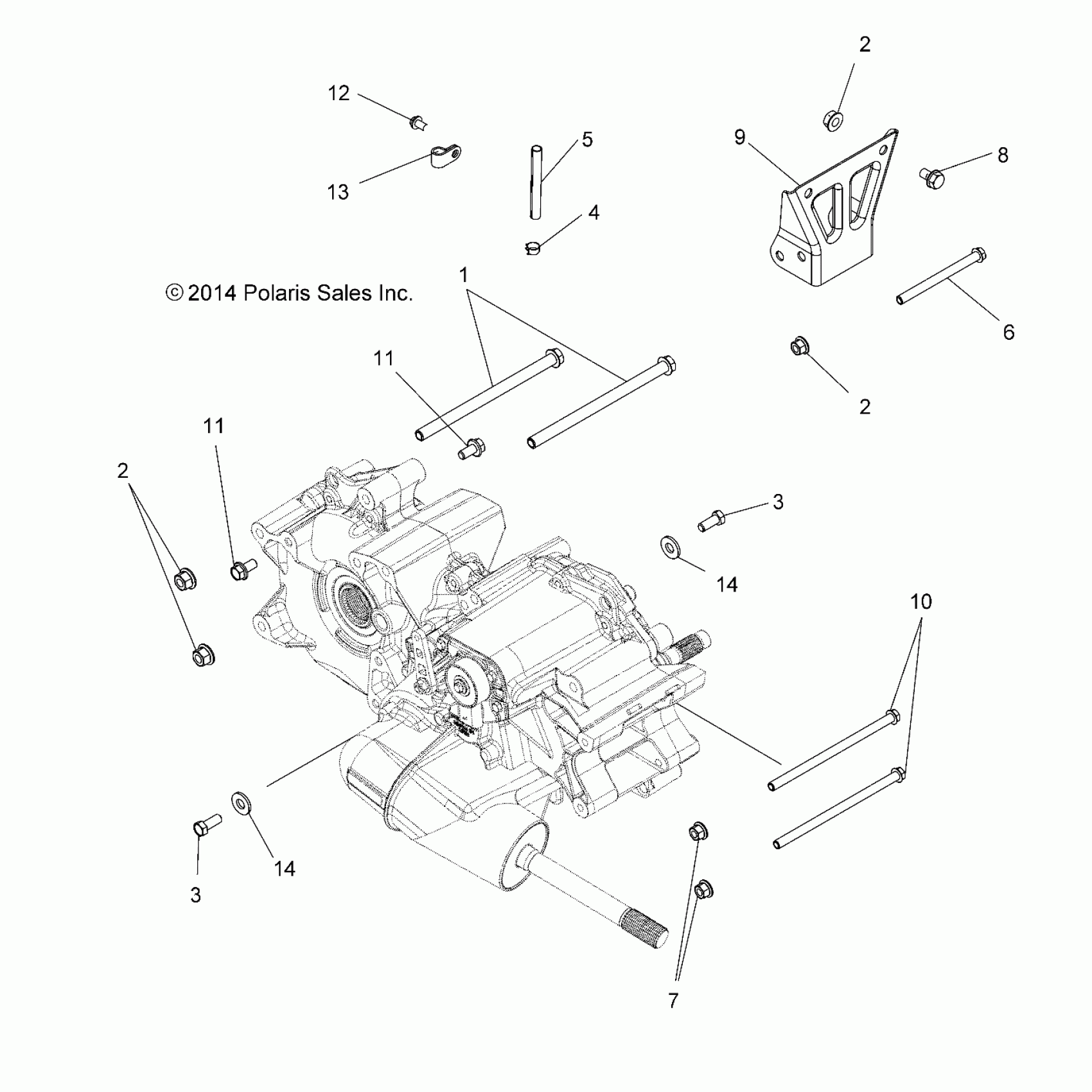

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 DRIVE TRAIN, MAIN GEARCASE MOUNTING - A18SUE57N5 (49ATVGEARCASEMTGN14SP500) Diagram

#

Description
Price

1

BOLT

7518365

$7.91

2

Nut, Flange

7547180

$2.39

2

Nut, Flange

7547180

$2.39

2

Nut, Flange

7547180

$2.39

3

SCREW

7518006

$3.19

3

SCREW

7518006

$3.19

4

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

5

Line, Fuel

8450040-600

Unavailable

6

SCREW

7517646

$7.19

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

Bolt

7515522

$3.99

9

SUPPORT, TRANSMISSION, UPPER, BLACK

5254309-329

$43.99

10

SCREW

7518648

$7.19

11

SCREW

7517632

$5.59

11

SCREW

7517632

$5.59

12

Screw

7512084

$1.49

13

CLAMP-HOSE PLASTIC, 1"

7080585

$3.99

14

WASHER

7556242

$2.39

14

WASHER

7556242

$2.39
