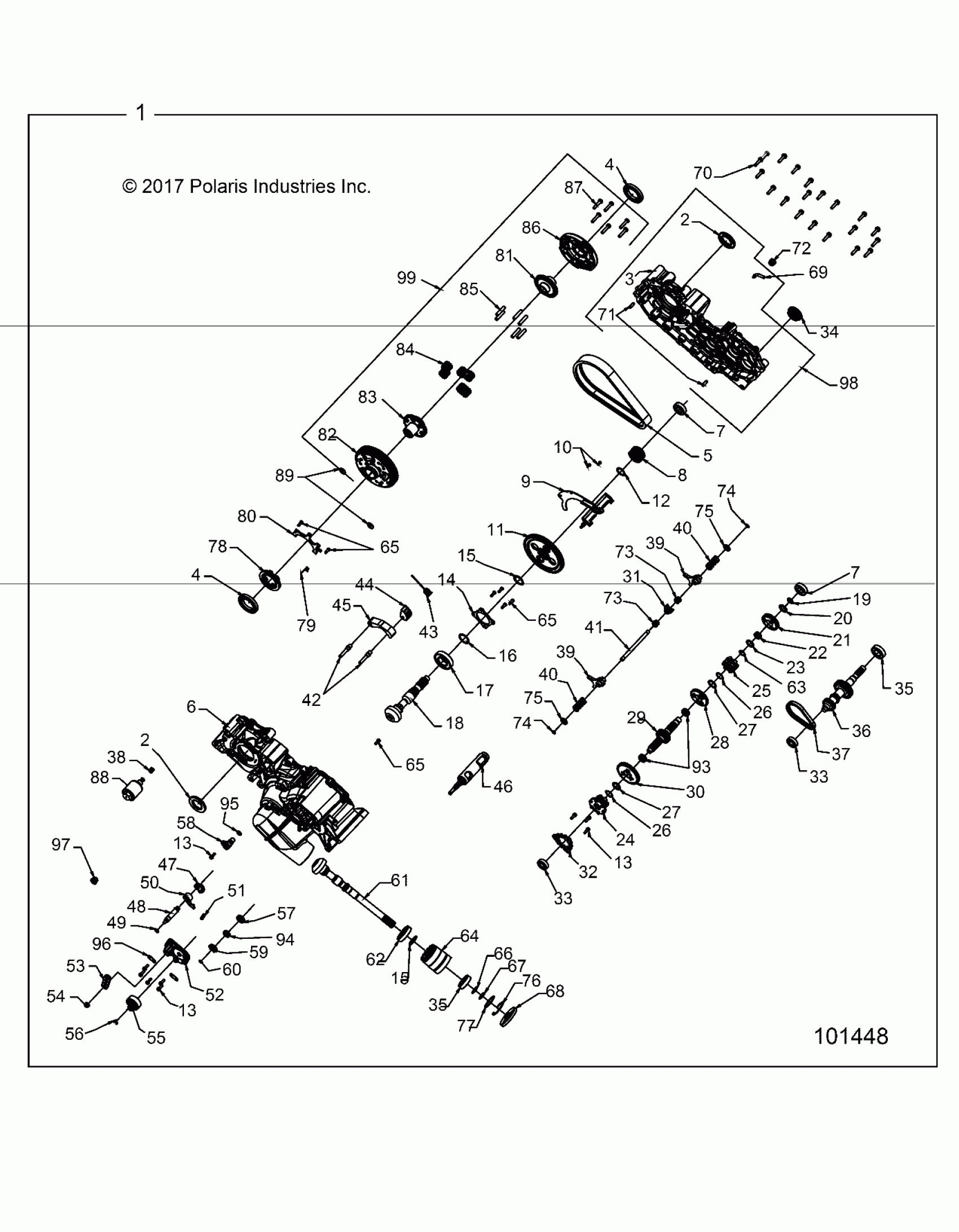

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 DRIVE TRAIN, MAIN GEARCASE - A18SUE57N5 Diagram

#

Description
Price

1

ASM-TRANSMISSION,DIFF,POST,SL [INCL. ALL]

1334013

Unavailable

2

SEAL, TRIPLE LIP 40 X 70 X 7

3234300

$32.37

2

SEAL, TRIPLE LIP 40 X 70 X 7

3234300

$32.37

3

COVER, LH MACH

3234260

$512.99

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$33.24

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$33.24

5

CHAIN, SILENT, 17 WIDE X 1.0 X 86p

3234057

$279.27

6

CASE, RH MACH

3235593

$699.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

8

SPROCKET 19T

3234060

$242.84

9

DEFLECTOR, OIL

3234061

$28.32

10

SCREW, TAPPING TORX, 8-32 X .50

3233749

$5.65

11

GEAR OUTPUT 91T

3234062

$267.13

12

RTNG RING, RR 7200-118

3233699

$7.27

13

SCREW, TAPPING HEX 1/4-20 UNC X .75

3234247

$5.56

13

SCREW, TAPPING HEX 1/4-20 UNC X .75

3234247

$5.56

13

SCREW, TAPPING HEX 1/4-20 UNC X .75

3234247

$5.56

14

COVER, BEARING, CENTER DRIVE

3234063

$32.37

15

RING, RETAINING

3233364

$6.46

15

RING, RETAINING

3233364

$6.46

16

SHIM 1.700 X 1.385

3234271

$24.27

17

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

18

PINION, 13T CENTER DRIVE

3234263

$532.52

19

RING, RETAINING SHR-75

3234067

$7.94

20

WASHER THRUST, 1.270 X .793 X .065

3233176

$9.52

21

GEAR 35T, HELICAL

3236032

$155.54

22

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$39.68

23

WASHER, 1.250 X .876 X .050

3233855

$10.32

24

DOG, L/P

3234257

$153.79

25

ENGAGEMENT DOG, 6-FACE

3234258

$97.13

26

RING, RETAINING BASIC EXT .938

3233306

$4.76

26

RING, RETAINING BASIC EXT .938

3233306

$4.76

27

WASHER, THRUST 1.300 X .995 X .065

3234248

$9.52

27

WASHER, THRUST 1.300 X .995 X .065

3234248

$9.52

28

SPROCKET, 38T 6-FACE

3234290

$153.79

29

SHAFT, REVERSE 26T

3234280

$263.08

30

GEAR, 33T 6-FACE

3234291

$174.03

31

COLLAR-SHIFT

3234073

$31.75

32

PLATE, PARK 12-FACE

3233915

$40.46

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

34

SEAL, DUAL LIP 25 X 47

3234851

$42.74

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

36

SHAFT, 39T INPUT HELICAL

3235526

$299.99

37

SILENT CHAIN, .25P X .40 W X 50L

3234264

$118.74

38

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

39

FORK, SHIFT

3234077

$182.13

39

FORK, SHIFT

3234077

$182.13

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

41

RAIL, SHIFT SHAFT

3234079

$28.32

42

PIN

3233432

$7.14

43

TORSION SPRING

3233431

$24.27

44

CAM, CHAIN TENSIONER

3233434

$13.75

45

SHOE, CHAIN TENSIONER

3233433

$32.37

46

DRUM, SHIFT

3234360

$182.13

47

GEAR-SECTOR,31T

3233832

$36.41

48

SHAFT, SHIFT

3233831

$60.70

49

O-RING, -014

3233869

$5.65

50

Pawl, Detent

3233829

$36.41

51

SPRING, COMPRESSION DETENT

3234578

$13.75

52

COVER, SECTOR GEAR MACH

3234188

$113.32

53

BELLCRANK, .510 HOLE 92 ~

3234584

$28.32

54

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$3.32

55

SWITCH, ROTARY 2-PIN ITW

7661999

$117.37

56

RING, RETAINING, BASIC EXT.

3233834

$10.32

57

GEAR, SECTOR 16T

3233839

$36.41

58

SENSOR-SPEED,TRANS

4013908

$109.27

59

Star, Detent

3233909

$28.32

60

O-RING, -012

3233076

$6.46

61

GEAR, 13T SNORKEL

3234262

$409.99

62

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

63

RING, RETAINING BASIC EXT n 22.0

3234336

$5.56

64

TUBE, SNORKEL MACH

3234278

$101.17

65

SCREW, TORX PAN HD 1/4-20 X .75

3234086

$5.56

65

SCREW, TORX PAN HD 1/4-20 X .75

3234086

$5.56

65

SCREW, TORX PAN HD 1/4-20 X .75

3234086

$5.56

66

SHIM 1.180 X .995

3234272

$36.41

67

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

68

SEAL, TRIPLE LIP, 25 X 80 X 10

3234113

$36.41

69

TUBE, VENT 90 ~ 1/4" LINE

3234230

$10.51

70

SCREW, TAPPING, HEX WASHER HD

3234114

$7.14

71

PIN, DOWEL 5/16 X 1.0

3234244

$7.27

72

PLUG, 3/4-16 HOLLOW HEX

3233794

$15.37

73

COMPRESSION, SPRING

3234089

$28.32

73

COMPRESSION, SPRING

3234089

$28.32

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

75

WASHER-CUP

3234091

$9.52

75

WASHER-CUP

3234091

$9.52

76

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

77

SHIM, 2.040 X 1.63

3234273

$13.75

78

DOG, ENGAGEMENT

3234928

$87.13

79

TORSION SPRING

3234276

$8.89

80

FORK, SHIFT

3234285

$64.75

81

SIDE, GEAR 36T, SUBASSEMBLY

3234363

$257.76

82

CARRIER SUBASSEMBLY

3234470

$322.99

83

SIDE, GEAR 36T DISCONNECT, SUBASSEMBLY

3234362

$333.32

84

GEAR SUBASSEMBLY

3234469

$72.84

85

PIN, DOWEL 10 X 45

3234238

$13.49

86

COVERSUBASSEMBLY

3234471

$269.99

87

SCREW, CAP HH 5/16-24 X 1.50

3234267

$7.14

88

SOLENOID

3235478

$295.46

89

WASHER, FENDER .284X1.363X.048

3234268

$7.14

93

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

94

SPACER

3235243

$9.52

95

O-RING

3234302

$7.27

96

BRACKET, WIRE HARNESS

3235350

$8.89

97

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

$15.37

98

SUBASSEMBLY PDS LH COVER

3235595

$399.99

99

CARRIER SUBASSEMBLY LOCKING DIFFERENTIAL 1 INCH PDS

3235594

$549.99
