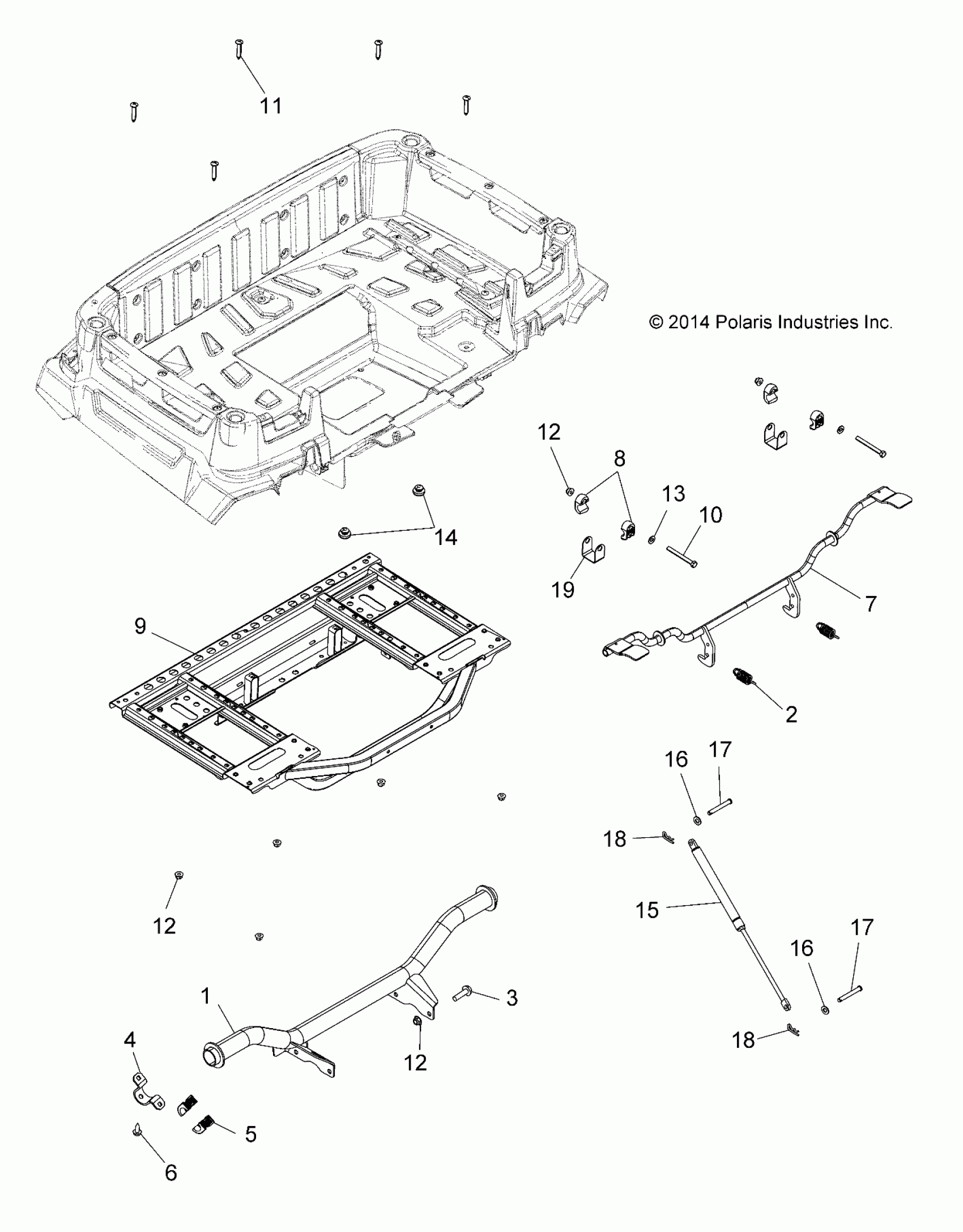

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 BODY, REAR BOX FRAME AND PIVOT - A18SUE57N5 (49ATVBOX15UTE) Diagram

#

Description
Price

1

PIVOT, BOX, REAR, BLACK

1020018-329

$119.99

2

SPRING-EXHAUST

7041687

$5.65

3

Bolt

7518341

$4.79

4

BRKT-BUSHING STRAP

5262582

$27.99

5

BUSHING, UPPER STEERING

5438904

$4.79

6

BOLT

7518555

$2.39

7

LATCH, BOX, REAR, BLACK

1020857-067

$266.25

8

BUSHING-BOX,LATCH

5434226

$3.99

9

BOX, FRAME

1020087-329

$383.99

10

Screw

7515346

$5.59

11

SCREW

7518235

$1.59

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

BUMPER-RUBBER

5412067

$3.99

15

SHOCK, DUMP BOX

7044142

$55.99

16

SPACER

7556373

$3.19

16

SPACER

7556373

$3.19

17

PIN, CLEVIS

7661163

$3.99

17

PIN, CLEVIS

7661163

$3.99

18

PIN, HITCH

7661644

$2.39

18

PIN, HITCH

7661644

$2.39

19

BRACKET, LATCH BUSHING LINER

5259801

$6.39
