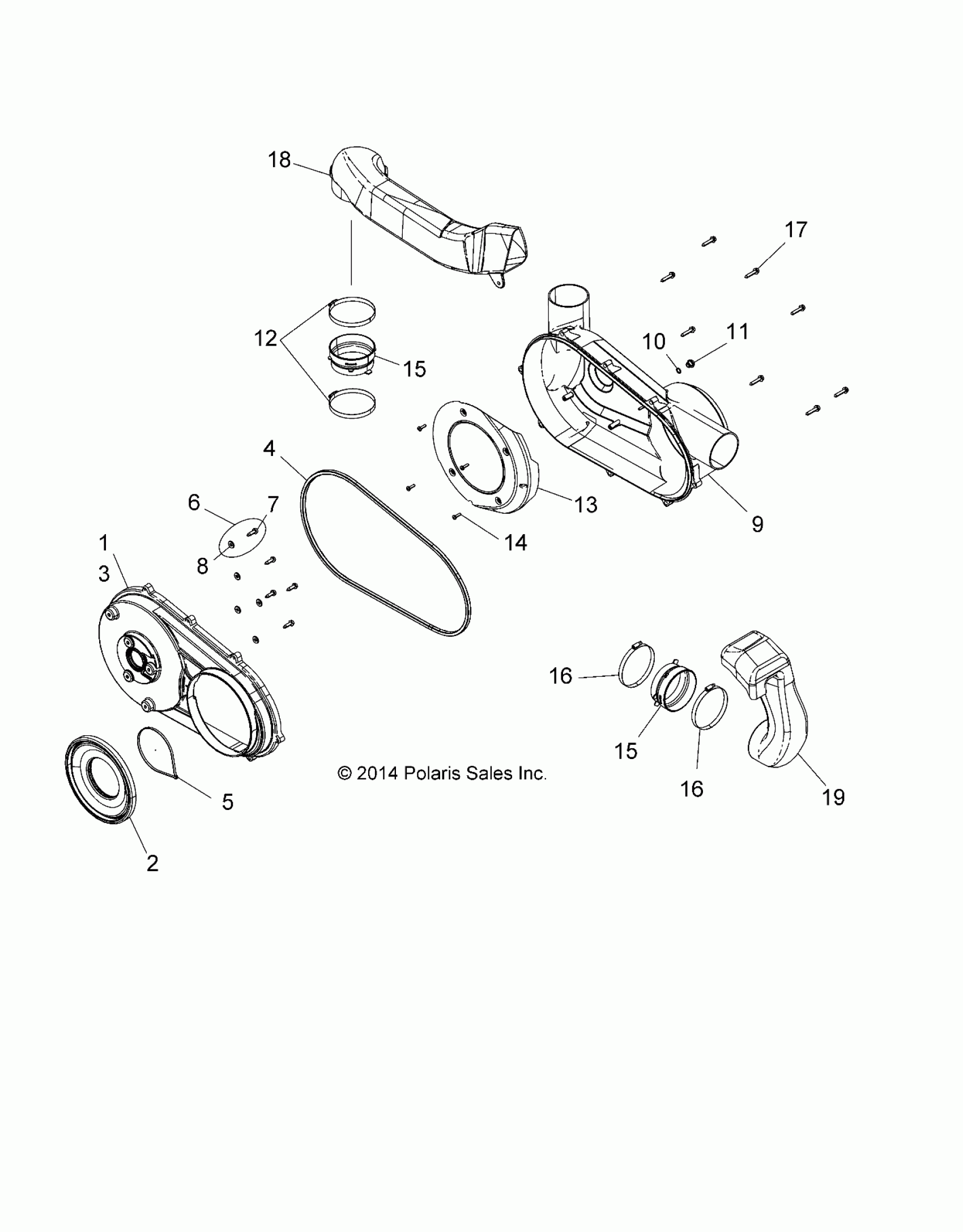

Polaris SPORTSMAN 570 EFI UTE (R11) - A18SUE57N5 BODY, CLUTCH COVER - A18SUE57N5 (49ATVCLUTCHCVR15UTE) Diagram

#

Description
Price

1

ASM., CLUTCH COVER, INNER [INCL. COVER,2,3]

2634896

$99.99

2

SEAL, COVER, CLUTCH, INNER

5414727

$59.99

3

COVER, CLUTCH INNER, BLACK

5450209-070

Unavailable

4

SEAL, OUTER CLUTCH COVER

5521738

$42.46

5

CABLE-TIE,13-102MM,NON-FLAM

7082260

$5.59

6

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

7

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

8

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

9

ASM., COVER, CLUTCH, OUTER [INCL. 10,11,13,14]

2634897

$175.99

10

O RING-.364X.504X.07

5410542

Unavailable

11

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

12

CLAMP, WORM DRIVE

7081626

$7.99

13

COVER, CLUTCH, INTAKE, BAFFLE

5450420

$87.99

14

SCREW

7512026

$1.49

15

BOOT, DUCT, CLUTCH

5414768

$14.39

15

BOOT, DUCT, CLUTCH

5414768

$14.39

16

CLAMP, WORM DRIVE

7081626

$7.99

16

CLAMP, WORM DRIVE

7081626

$7.99

17

SCREW

7519849

$3.19

18

PAD-FOAM SHIM,TRUNK

5413465

$5.59

18

DUCT, AIR INLET, CLUTCH

5451354

$63.99

19

DUCT, CLUTCH OUTLET

5450546

$51.99
