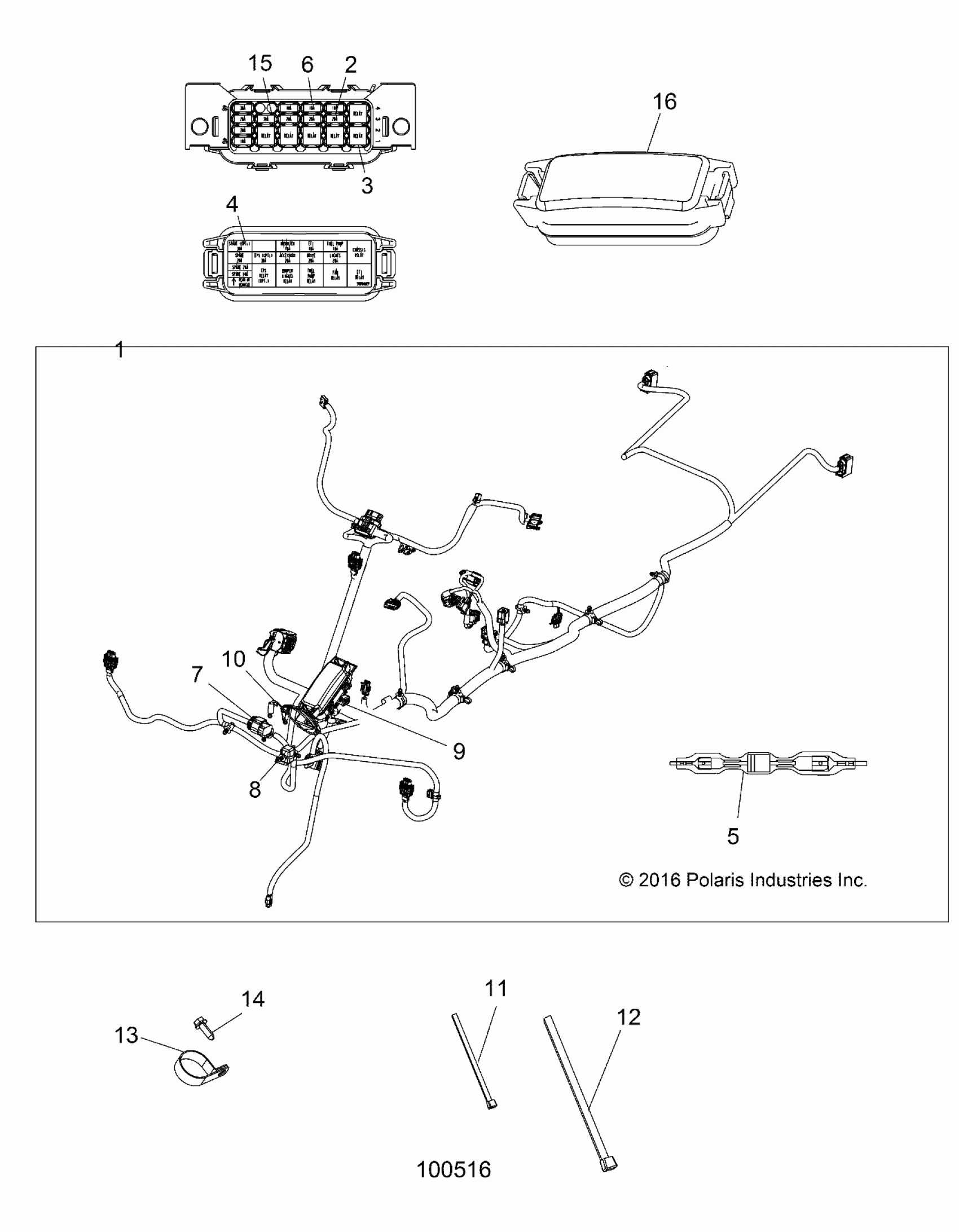

Polaris SPORTSMAN 570 EFI (R17) - A17SEA57A1/5/7/9/L7/L8/E57A1/7/9/F57A4 ELECTRICAL, MAIN WIRE HARNESS - A17SEF57A4 Diagram

#

Description
Price

1

HARNESS-MAIN,SPMN 570 EPS

2413549

$1,231.99

2

FUSE-PARK,20 AMP

2434017

Unavailable

3

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

4

LABEL, FUSE BOX

7179427

Unavailable

5

DIODE, 6 AMP

2411035

$51.99

6

FUSE-IGNITION,10 AMP

2434016

$4.79

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

BREAKER-CIRCUIT,15 AMP,SEALED

2411086

$39.99

9

DIODE, 6 AMP

2410000

$35.99

10

KIT, FUSE LINK, .8MM

2202607

$39.99

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

14

SCREW

7512232

$1.49

15

FUSE-MAIN,30 AMP

2434015

$7.19

16

COVER, FUSEBOX, 48WAY

4015011

$55.99

16

SEAL, FUSE CENTER

5415598

$8.79
