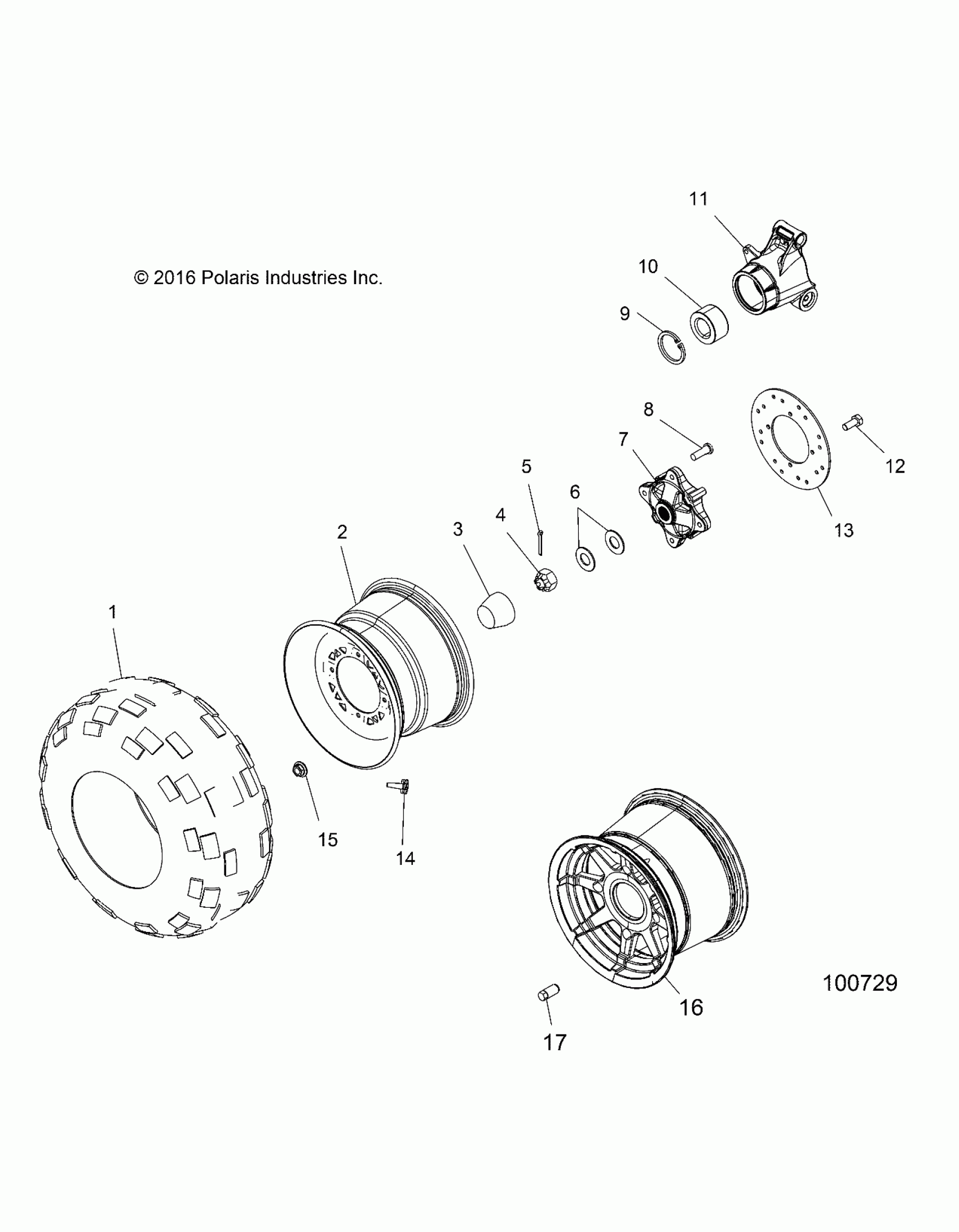

Polaris SPORTSMAN 570 EFI (R13) - A16SEA57A1/3/7/8/9/L3/L7/L8/EA1/3/5/7/9/DA2 WHEELS, REAR TIRE and BRAKE DISC - A16SEA57A1/3/7/8/9/L3/L7/L8/E57A1/3/5/7/9/D57A2 Diagram

#

Description
Price

1

TIRE, REAR, 25X10-12

5413961

$204.24

2

WELD-RIM,REAR,12X8.0,BLK

1520457-067

$129.37

3

COVER, DUST, HUB

5413427

$28.32

4

NUT, CASTLE

7547337

$1.98

5

PIN, COTTER

7661404

$4.76

6

WASHER, CONE

7555796

$7.94

7

HUB, REAR WHEEL

5135113

$99.74

8

STUD

7518378

$1.59

9

RING, RETAINING

7710440

$10.32

10

BEARING, WHEEL

3514635

$39.68

10

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.49

11

CARRIER, BEARING, WHEEL

5135563

$71.43

12

BOLT

7518903

$3.97

13

DISC, BRAKE, REAR

5248250

$76.89

14

VALVE-RIM

1525017

$6.46

15

NUT, FLANGE

7547237

$2.38

16

RIM-REAR,12X8,CAST,31MM,M.BLK [A16SED57A2 ONLY]

1522886-458

$270.99

17

NUT-3/8-24-WHEEL [A16SED57A2 ONLY]

7547309

$3.57
