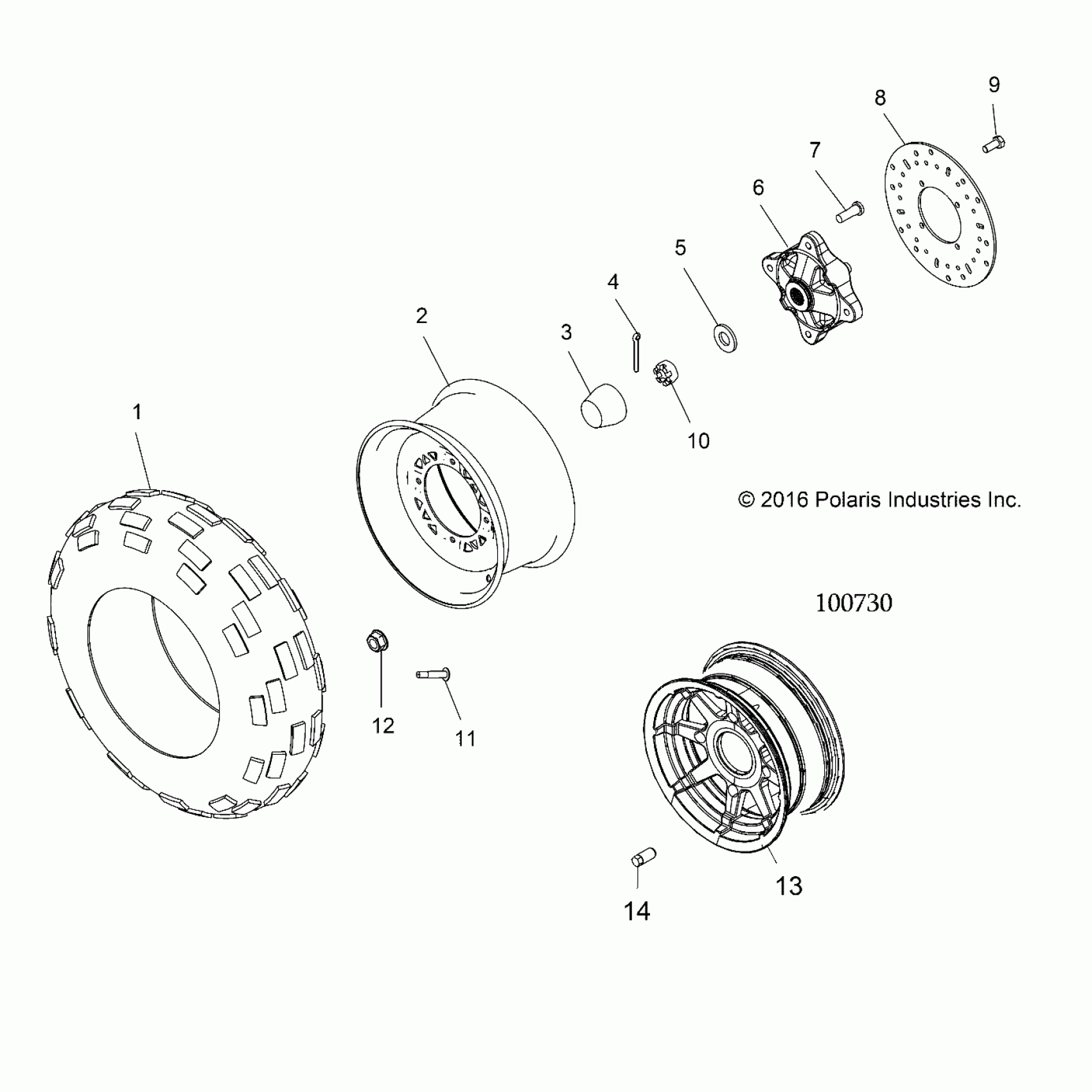

Polaris SPORTSMAN 570 EFI (R13) - A16SEA57A1/3/7/8/9/L3/L7/L8/EA1/3/5/7/9/DA2 WHEELS, FRONT TIRE and BRAKE DISC - A16SEA57A1/3/7/8/9/L3/L7/L8/E57A1/3/5/7/9/D57A2 Diagram

#

Description
Price

1

TIRE-25X8-12 NHS,489

5413994

Unavailable

2

RIM, FRONT, BLACK

1520269-067

Unavailable

3

COVER, DUST, HUB

5413427

$24.27

4

PIN, COTTER

7661404

$4.79

5

WASHER

7556004

$7.19

6

HUB, WHEEL

5134310

Unavailable

7

STUD

7518378

$1.59

8

DISC-BRAKE,8.95 OD,.158

5244314

$75.99

9

BOLT

7512325

$2.39

10

NUT, SLOTTED

7542810

$3.19

11

VALVE-RIM

1525017

$5.59

12

NUT, FLANGE

7547237

$2.39

13

RIM-FRT,12X6,CAST,26.2OFST,MBK [A16SED57A2 ONLY]

1522396-458

$156.39

14

NUT-3/8-24-WHEEL [A16SED57A2 ONLY]

7547309

$3.59
