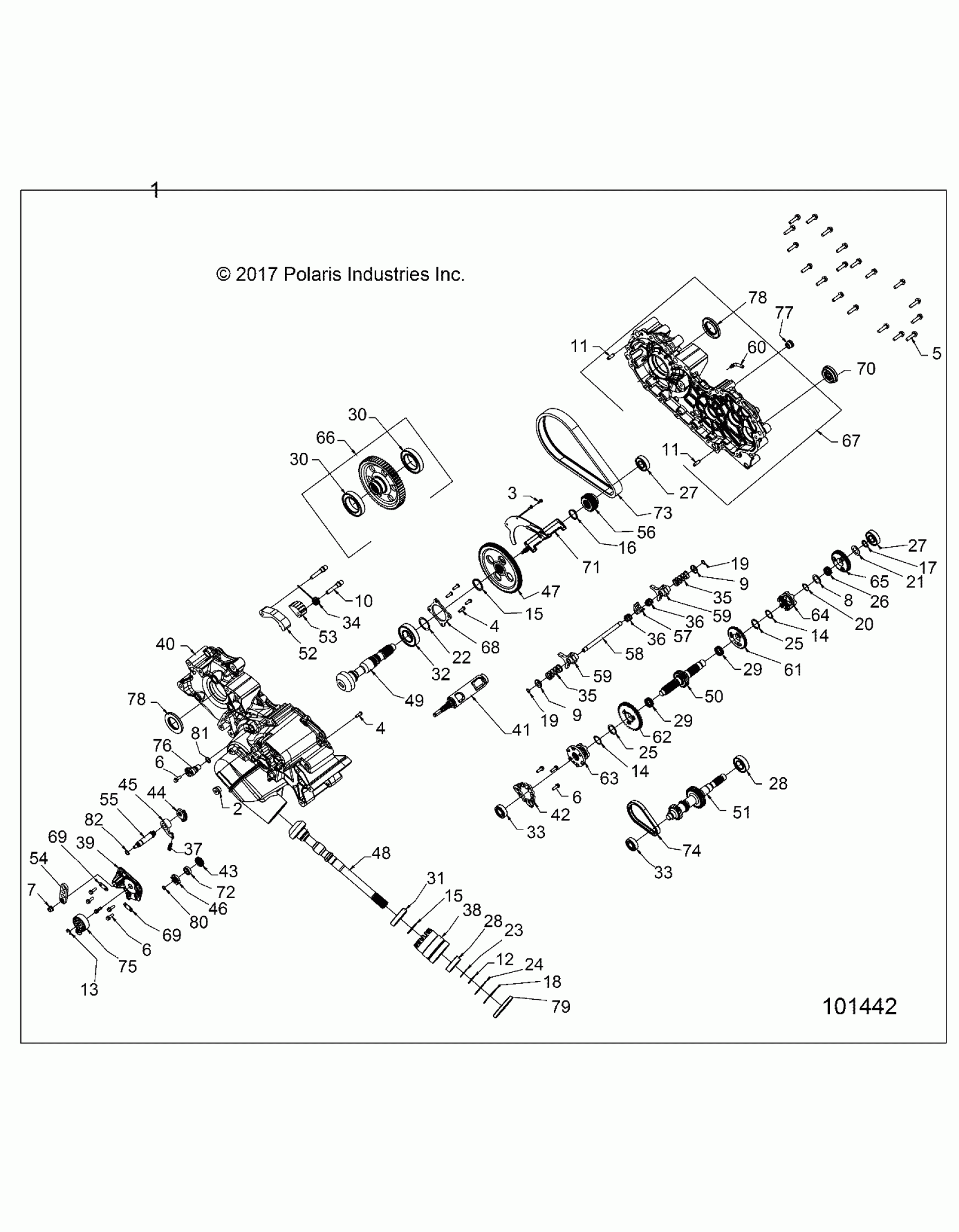

Polaris SPORTSMAN 570 EFI (R08) - A19SEA57B1/5/9/L2/L7/E57B1/5/9/FB4/YB5/ZBZ DRIVE TRAIN, MAIN GEARCASE - A19SEF57B4 Diagram

#

Description
Price

1

ASM-TRANS,PDS,NO DIFF,LO [INCL. ALL]

1333988

$2,587.19

2

PLUG, 3/4-16, HOLLOW HEX MAGNETIC

3234529

Unavailable

3

SCREW, TAPPING TORX, PH 8-32 X.50

3233749

$5.59

4

SCREW, TORX, PAN HD 1/4-20 X .75

3234086

$5.59

4

SCREW, TORX, PAN HD 1/4-20 X .75

3234086

$5.59

5

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.19

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

7

NUT, LOCK HEX FLANGE, NYLON 5/16-24

3233961

$2.79

8

WASHER, 1.250 X .876 X .05

3233855

$10.39

9

WASHER-CUP

3234091

$9.59

9

WASHER-CUP

3234091

$9.59

10

PIN

3233432

$7.19

11

PIN, 5/16 X 1.0

3234244

$7.19

11

PIN, 5/16 X 1.0

3234244

$7.19

12

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

13

RING, SNAP

3233834

$10.39

14

RING, RETAINING

3233306

$4.79

14

RING, RETAINING

3233306

$4.79

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

16

RING RTNG, IRR 7200-118

3233699

$7.19

17

RING, RETAINING BASIC, EXTERNAL .787 SHAFT

3234067

$7.99

18

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

19

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

19

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

20

RING, RETAINING, BASIC EXTERNAL DIA .84

3234336

$5.59

21

WASHER THRUST , 1.270 X .793 X 0.065

3233176

$9.59

22

SHIM, 1.700 X 1.385

3234271

$19.99

23

SHIM, 1.180 OD X .995 ID

3234272

$31.99

24

SHIM, 2.040 OD X 1.63 ID

3234273

$12.79

25

WASHER, THRUST, 1.300 X .995 X .065

3234248

$9.59

25

WASHER, THRUST, 1.300 X .995 X .065

3234248

$9.59

26

BEARING, NEEDLE, CAGE ASSY

3233009

$39.99

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

28

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

29

BEARING, NEEDLE 25X29X10

3233103

$31.99

29

BEARING, NEEDLE 25X29X10

3233103

$31.99

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

31

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

33

BEARING, BALL 6203 C3 17X40X12

3234274

$27.99

33

BEARING, BALL 6203 C3 17X40X12

3234274

$27.99

34

TORSION SPRING

3233431

$23.99

35

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

35

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

36

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

36

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

37

SPRING, COMPRESSION, DETENT

3234578

$12.79

38

TUBE, SNORKEL MACH

3234278

$95.99

39

COVER, SECTOR GEARS MACH

3234188

$107.99

40

CASE, RH MACH

3235606

$530.39

41

DRUM, SHIFT MACH

3234360

$171.99

42

PLATE, PARK, 12-FACE

3233915

$39.99

43

GEAR, SECTOR 16T

3233839

$31.99

44

GEAR-SECTOR,31T

3233832

$31.99

45

Pawl, Detent

3233829

$31.99

46

Star, Detent

3233909

$23.99

47

GEAR OUTPUT 91T, HCR

3234062

$251.99

48

GEAR, 13T SNORKEL,

3234262

$307.99

49

PINION, 13T, CENTER DRIVE

3234263

$405.59

50

SHAFT, REVERSE 26T

3234280

$259.99

51

SHAFT, INPUT-43T HELICAL

3235367

$263.99

52

SHOE, CHAIN TENSIONER

3233433

$27.99

53

CAM, CHAIN TENSIONER

3233434

$12.79

54

BELLCRANK, .510 HOLE, 92 ~

3234584

$23.99

55

SHAFT, SHIFT

3233831

$59.99

56

SPROCKET, 19T

3234060

$239.99

57

COLLAR-SHIFT

3234073

$31.99

58

RAIL, SHIFT SHAFT

3234079

Unavailable

59

FORK, SHIFT

3234077

$171.99

59

FORK, SHIFT

3234077

$171.99

60

TUBE, VENT 90 ~ 1/4" HOSE

3234230

$9.59

61

SPROCKET 38T, 6-FACE

3234290

$151.99

62

GEAR, 33T, 6-FACE

3234291

$163.99

63

DOG, L/P

3234257

$143.99

64

ENGAGEMENT DOG, 6-FACE

3234258

$91.99

65

GEAR, HELICAL 44T

3236033

$159.99

66

SUB-ASSY SHAFT, 59T FINAL, OUTPUT WITH BEARING

3235604

$255.99

67

SUBASSEMBLY, LH COVER, PDS EAGLE

3235605

$405.59

68

COVER, BEARING, CENTER DRIVE

3234063

$27.99

69

BRACKET, WIRE HARNESS

3235350

$8.79

69

BRACKET, WIRE HARNESS

3235350

$8.79

70

SEAL, DUAL LIP 25X47 VITON

3234851

$35.99

71

DEFLECTOR, OIL

3234061

$23.99

72

SPACER

3235243

$9.59

73

CHAIN SILENT, 17 WIDE X 1.0 X 86P

3234057

$263.99

74

CHAIN, .25P X .40W X 50L

3234264

$95.99

75

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$111.99

76

SENSOR-SPEED,TRANS

4013908

Unavailable

77

PLUG, 3/4-16, HOLLOW HEX

3233794

$15.19

78

SEAL, TRIPLE LIP 40X70X7

3234300

$31.99

78

SEAL, TRIPLE LIP 40X70X7

3234300

$31.99

79

SEAL, TRIPLE LIP 25X80X10

3234113

$35.99

80

O-RING, 2-012

3233076

$6.39

81

O-RING

3234302

$7.19

82

O-RING, -014

3233869

$5.59
