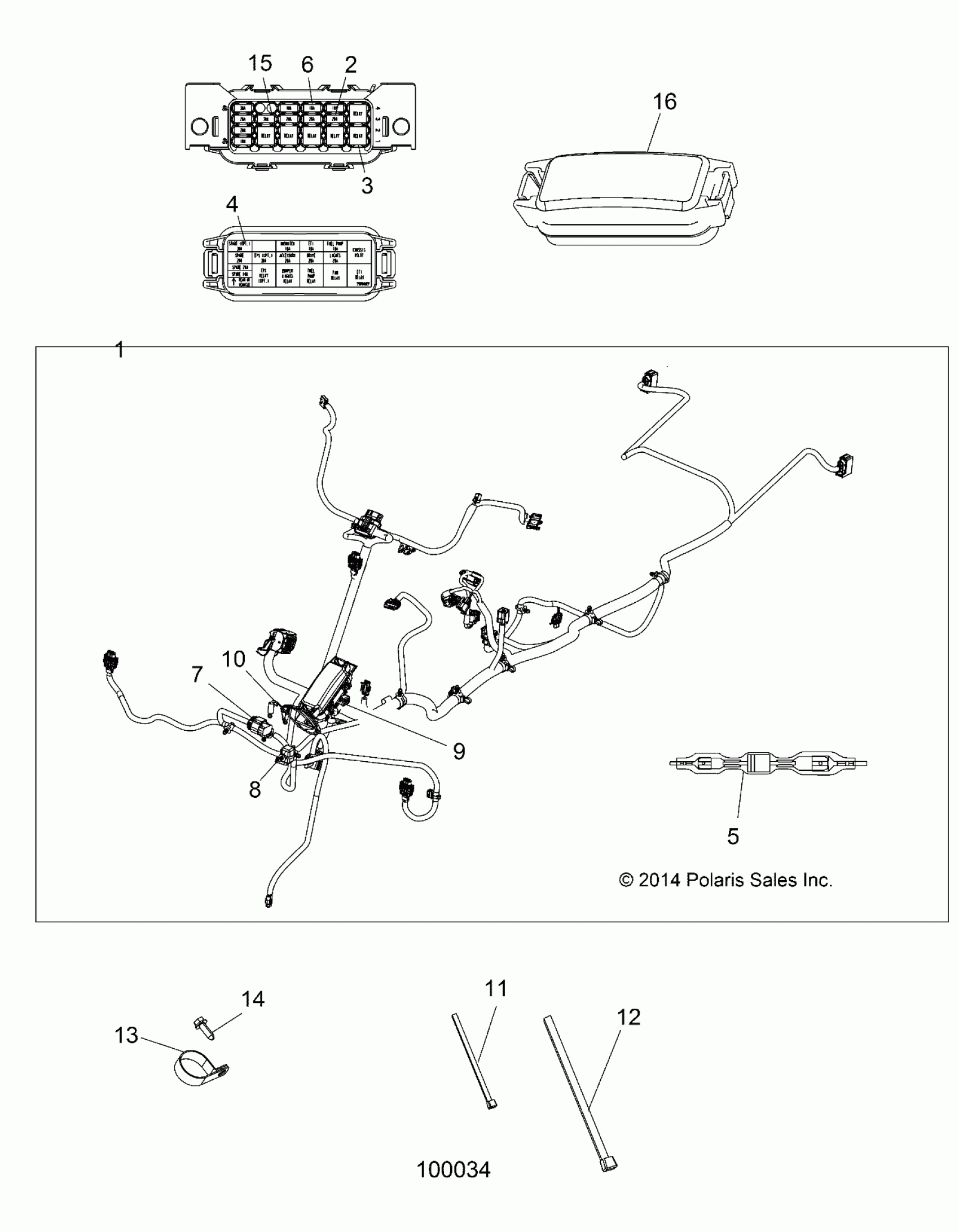

Polaris SPORTSMAN 570 EFI HD (R11) - A16SEH57A7 ELECTRICAL, MAIN WIRE HARNESS - A16SEH57A7 Diagram

Description

Price

HARNESS, MAIN

2412885

$1,099.99

FUSE-PARK,20 AMP

2434017

$8.08

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

LABEL, FUSE BOX

7180889

Unavailable

DIODE, 6 AMP

2411035

$56.65

FUSE-IGNITION,10 AMP

2434016

$5.65

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

BREAKER, CIRCUIT, 10 AMP

2410692

$28.32

DIODE, 6 AMP

2410000

$40.46

KIT, FUSE LINK, .8MM

2202607

$39.68

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

SCREW

7512232

$1.19

FUSE-MAIN,30 AMP

2434015

$8.87

COVER, FUSEBOX, 48WAY

4015011

$60.70

SEAL, FUSE CENTER

5415598

$8.73
