- SPORTSMAN 570 EFI HD (R11) - A16SEH57A7
DRIVE TRAIN, FRONT GEARCASE - A16SEH57A7

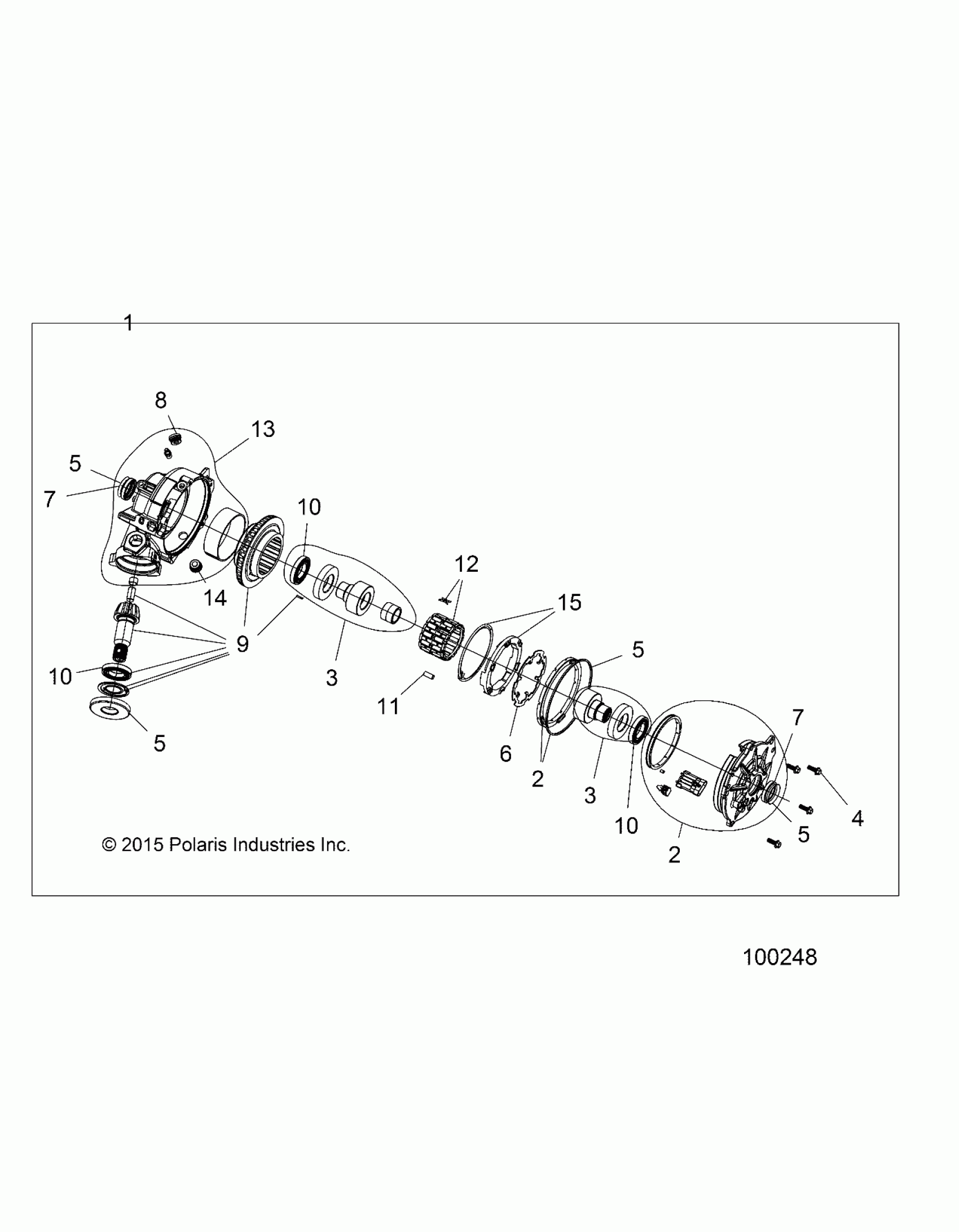

Polaris SPORTSMAN 570 EFI HD (R11) - A16SEH57A7 DRIVE TRAIN, FRONT GEARCASE - A16SEH57A7 Diagram
#
Description
Price
1
ASM., GEARCASE, FRONT, 12 POCKET [INCL. ALL]
1333489
$1,087.79
2
ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]
3235793
$440.69
2
ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]
3235793
$440.69
3
KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]
3234936
Unavailable
3
KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]
3234936
Unavailable
4
KIT, BOLT [INCL. SCREWS]
3235469
$13.59
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3235794
Unavailable
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3235794
Unavailable
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3235794
Unavailable
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3235794
Unavailable
6
PLATE, ARMATURE
3235485
Unavailable
7
SEAL, OUTPUT
3235796
$59.99
7
SEAL, OUTPUT
3235796
$59.99
8
PLUG, OIL FILL
3234414
Unavailable
9
RING AND PINION
3235638
$1,159.99
10
Bearing
3234390
$35.99
10
Bearing
3234390
$35.99
10
Bearing
3234390
$35.99
11
K-CLUTCH ROLLS [INCL. COMPLETE SET OF ROLLERS]
3235624
$153.41
12
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$163.99
13
ASM., GEARCASE [INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL]
3235795
$435.59
14
ASM., DRAIN PLUG, MAGNETIC
3234412
$39.99
15
KIT-TORSION,SPRING AND RETAINER [INCL. SPRING RETAINER, TORSION SPRING]
3235712
$35.99
