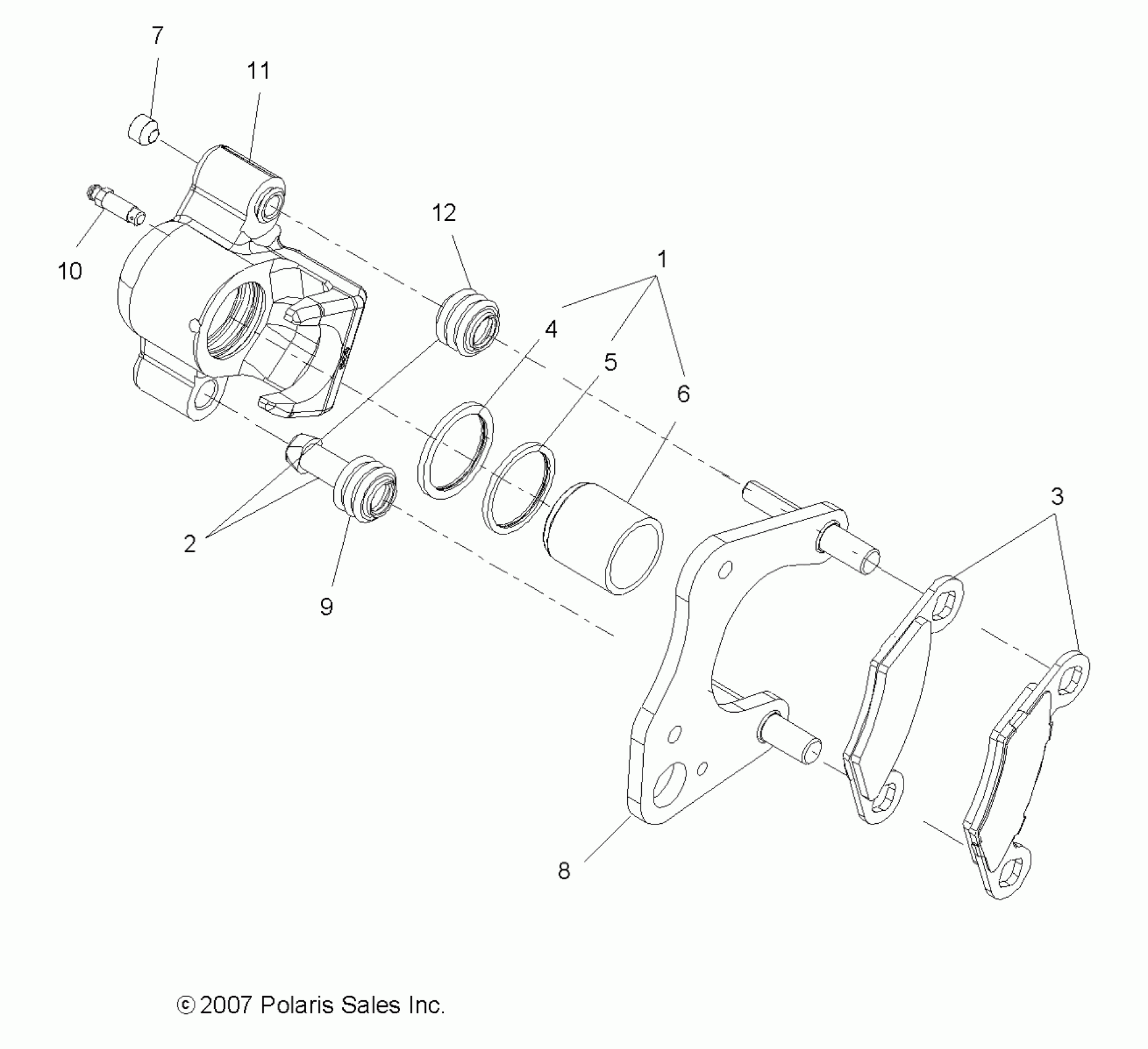

Polaris SPORTSMAN 570 EFI HD (R11) - A16SEH57A7 BRAKES, FRONT CALIPER - A16SEH57A7 Diagram

ASM., CALIPER, LH [INCL. 1-12]

1911540

$259.99

ASM., CALIPER, RH [INCL. 1-12]

1911541

$259.99

KIT, PISTON AND SEAL [INCL. 4-6]

1930665

$55.99

KIT-BOOT,FRONT BRAKE [INCL. 9,12]

1930642

$11.19

KIT-BRAKE PAD ASM [INCL. 2 SETS, 4 PADS]

2202412

$55.99

K-ASM, HD, PAD, BRK, S. BORE [OPTION][2 PADS PER KIT]

2208935

$63.99

RING, MOLDED SQUARE, .103 X .134

5410780

$10.51

SQUARE RING-MOLDED (.094)

5410779

$10.51

PISTON, BRAKE, LONG

5132294

$54.04

SCREW, SOCKET SET

7518863

$9.59

ASM-CALIPER,MNT,FRONT,1.500

1910513

$51.99

BOOT-PIN BUSHING

5412505

$3.19

SCREW, BLEEDER

7081343

$5.59

CALIPER, BRAKE, LH

-------

Unavailable

CALIPER, BRAKE, RH

-------

Unavailable

BOOT-PIN SEAL

5412506

$3.19
