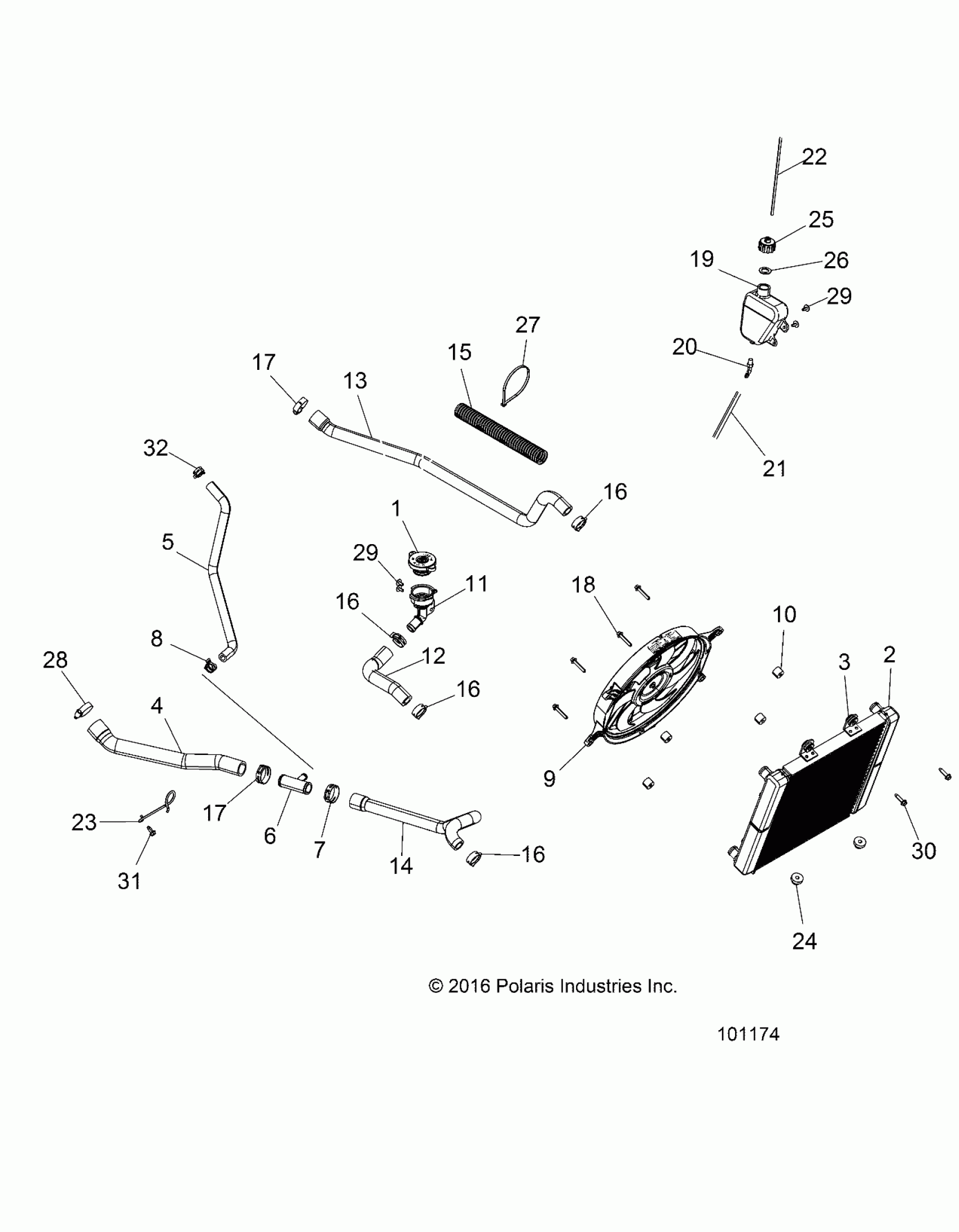

Polaris SPORTSMAN 570 EFI HD (R09) - A17SEH57A7 ENGINE, COOLING SYSTEM - A17SEH57A7 (101174) Diagram

#

Description
Price

1

Cap, Pressure

1240508

$48.56

2

ASM., RADIATOR

1240520

$453.32

3

ASM., GROMMET AND INSERT

5413155

$3.97

4

HOSE, ENGINE, LOWER

5414805

$40.46

5

HOSE, BYPASS, FORMED

5414806

$36.41

6

CONNECTOR, TEE

7052530

$5.56

7

Clamp, Springband

7080843

$3.97

8

Clamp, Hose, Spring

7081719

$5.56

9

ASM., FAN AND MOTOR

2411330

$188.10

10

SPACER

5137361

$5.56

11

NECK, FILLER

5412402

$31.10

12

HOSE, FILLER NECK

5414228

$15.37

13

HOSE, RADIATOR, UPPER

5414762

$56.65

14

HOSE, RADIATOR, LOWER

5414765

$44.51

15

CONDUIT, FLEX

5521793-25

$10.51

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.14

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.14

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.14

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.14

17

Clamp, Springband

7080843

$3.97

17

Clamp, Springband

7080843

$3.97

18

SCREW

7516827

$6.35

19

TANK-SURGE

5436936

$80.94

20

FITTING, BARBED, 90 DEG

7052065

$7.14

21

HOSE, CLEAR

8450003-1525

Unavailable

22

LINE, FUEL

8360009-600

Unavailable

23

SPRING, COOLANT HOSE GUIDE

5338063

$11.32

24

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

25

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.84

26

GASKET-OVERFLOW CAP

5810279

$2.41

27

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

28

CLAMP, HOSE

7081174

$7.14

29

Screw

7512084

$1.19

29

Screw

7512084

$1.19

30

Screw

7515179

$2.38

31

SCREW

7517386

$1.19

32

CLAMP-HOSE,.875-SS

7080474

$8.54
