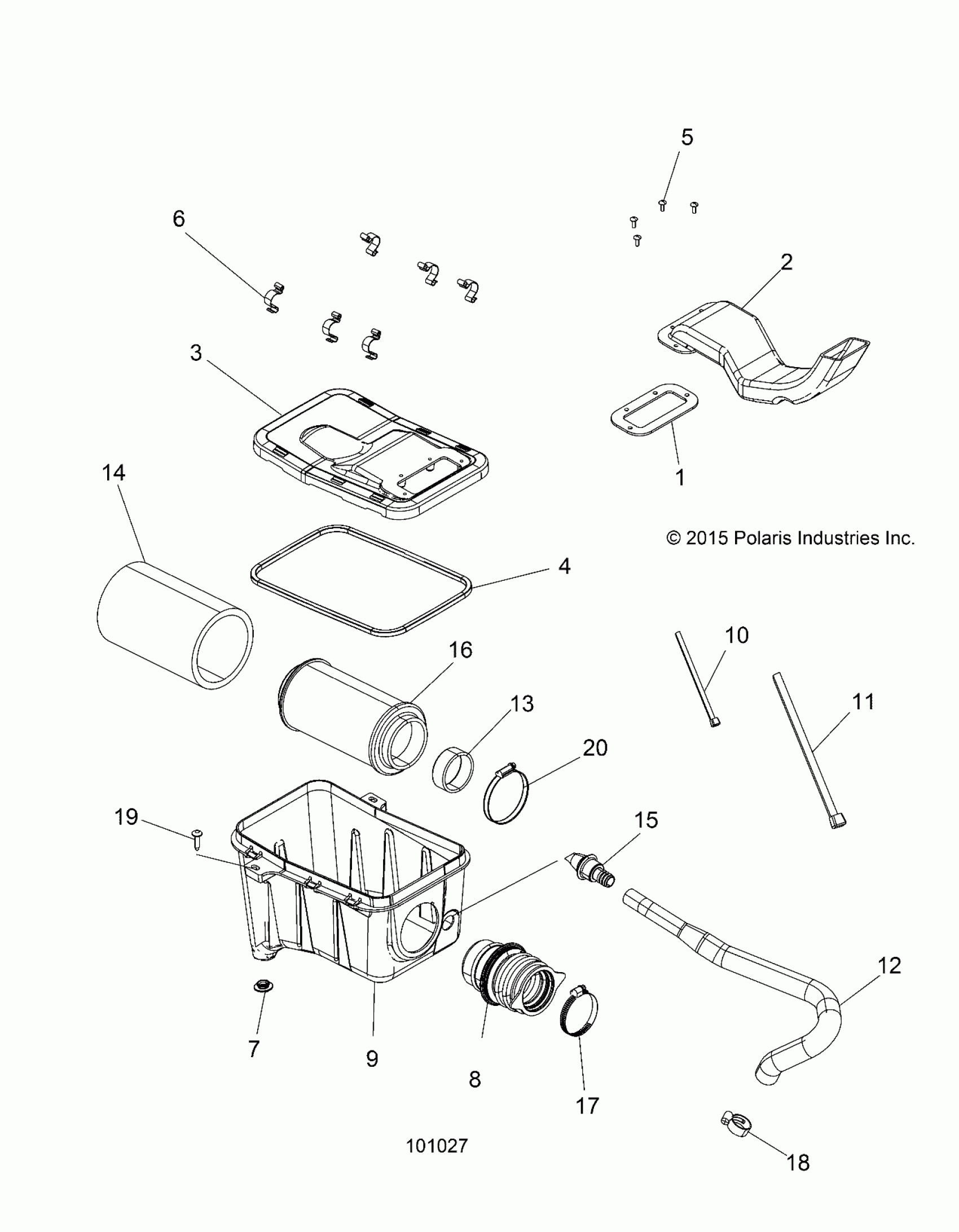

Polaris SPORTSMAN 570 EFI HD (R09) - A17SEH57A7 ENGINE, AIR INTAKE SYSTEM - A17SEH57A7 Diagram

Description

Price

Gasket, Intake

5411422

$6.63

DUCT, AIR INLET

5450386

$35.99

COVER, AIR BOX

5450388

Unavailable

SEAL, AIRBOX COVER

5813949

$27.99

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

CLIP-AIR BOX

5242044

$9.59

PLUG-COMPARTMENT

5412981

Unavailable

BOOT, INTAKE

5414638

$23.99

BOX, AIR INTAKE

5450387

$127.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

HOSE, BREATHER

5415276

$31.99

SLEEVE, CARB, INNER

5433847

$13.59

Filter, Precleaner Sleeve

5811633

$11.99

VALVE, BREATHER

7052577

$23.99

FILTER, AIR INTAKE

7082101

Unavailable

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

Clamp, Narrow Band

7080413

$3.19

CLAMP, HOSE

7081174

$7.19

SCREW

7517685

$1.59

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19
