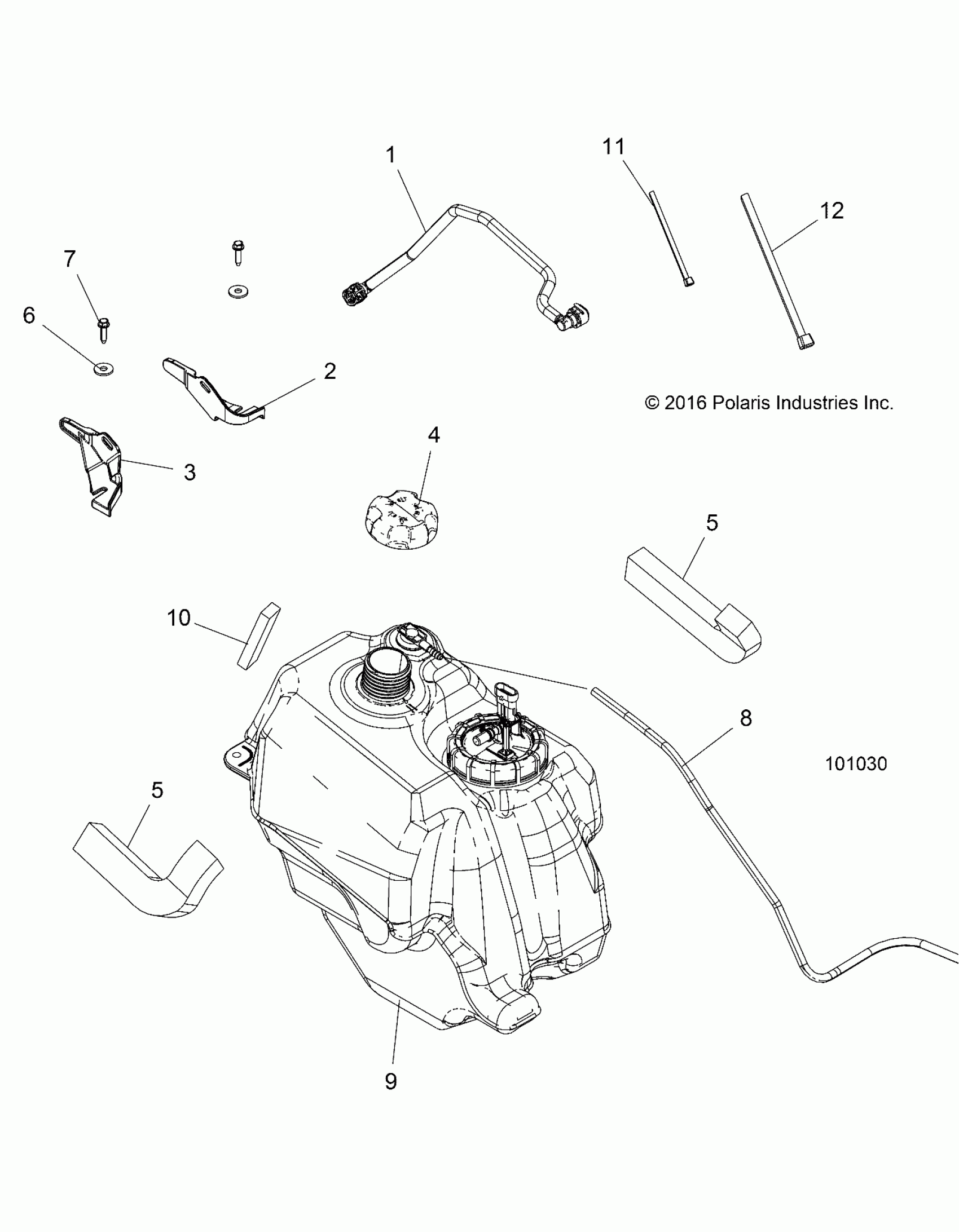

Polaris SPORTSMAN 570 EFI HD (R09) - A17SEH57A7 BODY, FUEL TANK ASM. - A17SEH57A7 Diagram

#

Description

Price

1

ASM-FUEL LINE,HARD

2521664

$56.65

2

BRACKET, SEAT BASE, CAB MOUNT, LH

5452276

$5.65

3

BRACKET, SEAT BASE, CAB MOUNT, RH

5452277

$5.65

4

CAP-GAS TANK

5439075

$24.27

5

FOAM, SEAL

5813255

$8.99

5

FOAM, SEAL

5813255

$8.99

6

WASHER-.327X.875X.090,FL-Y

7555960

$3.97

7

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$2.38

8

Line, Fuel

8450040-600

Unavailable

9

K-FUEL PUMP,ATV570 [INCL. PUMP, GASKET, NUT, INSTRUCTIOINS]

2208126

$436.99

9

ASM-FUEL TANK,570 EFI

2521713

$1,149.99

10

Foam, Cover

5813265

$24.19

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41
