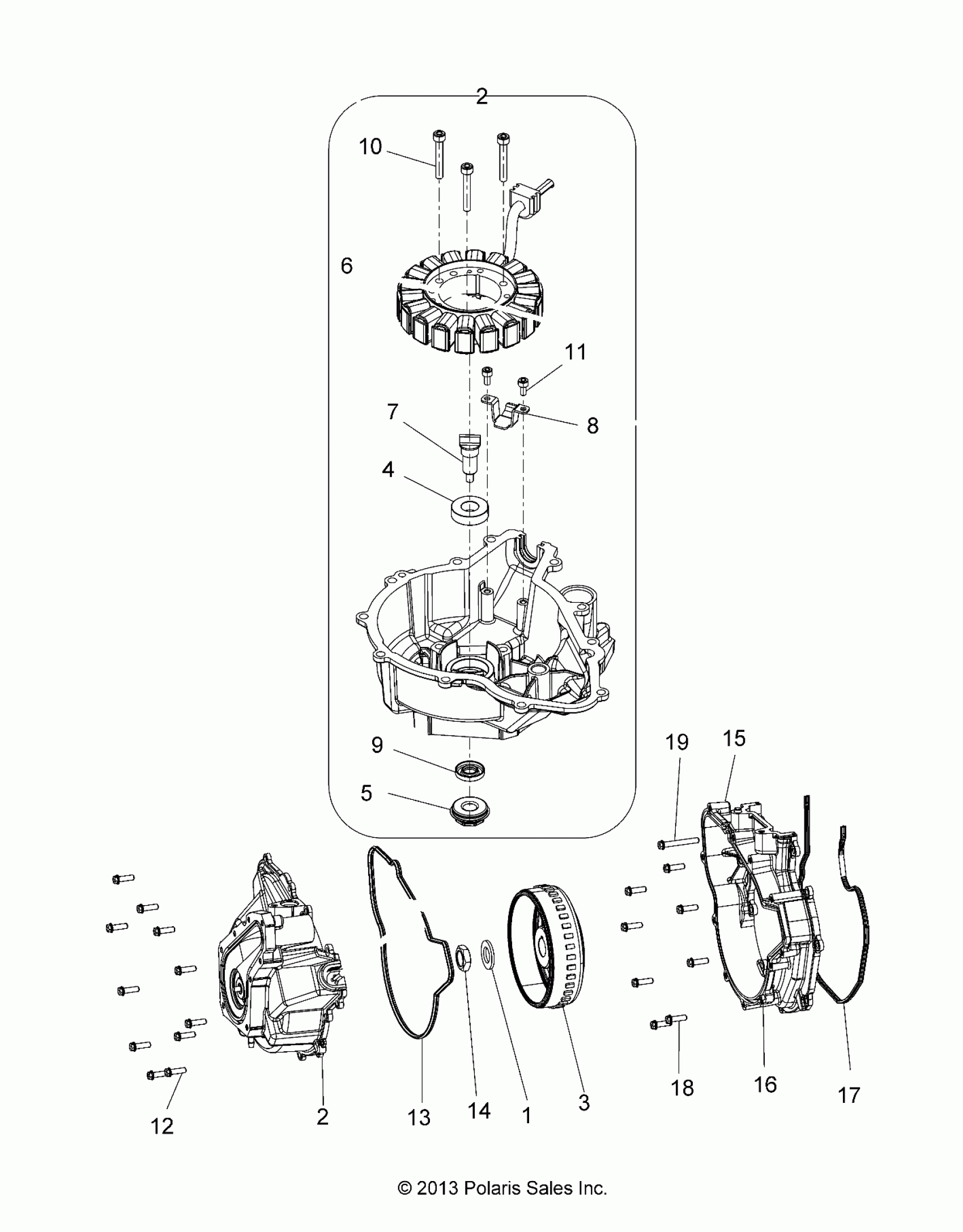

Polaris SPORTSMAN 570 EFI EPS - A15SEE57AA/AC/AJ ENGINE, STATOR COVER and FLYWHEEL - A15SEE57AA/AC/AJ (49ATVFLYWHEEL14SP570) Diagram

#

Description
Price

1

WASHER

7556878

$3.99

2

ASM., STATOR COVER W/WATERPUMP

1204742

Unavailable

2

ASM., STATOR COVER W/WATERPUMP

1204742

Unavailable

3

FLYWHEEL

4014404

$494.99

4

BEARING, SHAFT, WATERPUMP [TO 1/15/2023]

3514696

$10.32

4

BEARING-SHAFT,WATERPUMP [FRM 1/15/2023]

3515828

$10.39

5

SEAL-WATERPUMP SHAFT,WATER

3610173

Unavailable

6

STATOR,560W

4014406

$467.99

7

SHAFT-PUMP DRIVE,G-1CYL

5138035

$39.99

8

GUIDE-STATOR LEAD

5254832

$7.19

9

SEAL, TYPE S

5411197

$24.27

10

SCREW

7510005

$5.70

11

SCREW

7517847

$3.19

12

SCREW

7518576

$3.19

13

GASKET, STATOR COVER

5415086

$39.99

14

NUT-HEX,M18X1.5 4 JAM,RH

7547488

$7.19

15

ASM., COVER, ENGINE INTER [BUILT 12/31/14 AND BEFORE]

3022538

Unavailable

15

ASM., COVER, ENGINE INTER [BUILT 1/1/15 AND AFTER]

3022738

Unavailable

16

DWL-HOL,M8X8

7661977

$7.19

17

GASKET, MAG/INTER COVER

5415085

$39.99

18

SCREW

7518576

$3.19

19

SCR-HXFL-M8X1.25X45 10.9ACU

7519209

$3.99
