ENGINE, EXHAUST - A15SEE57AA/AC/AJ (49ATVEXHAUST14SP570)

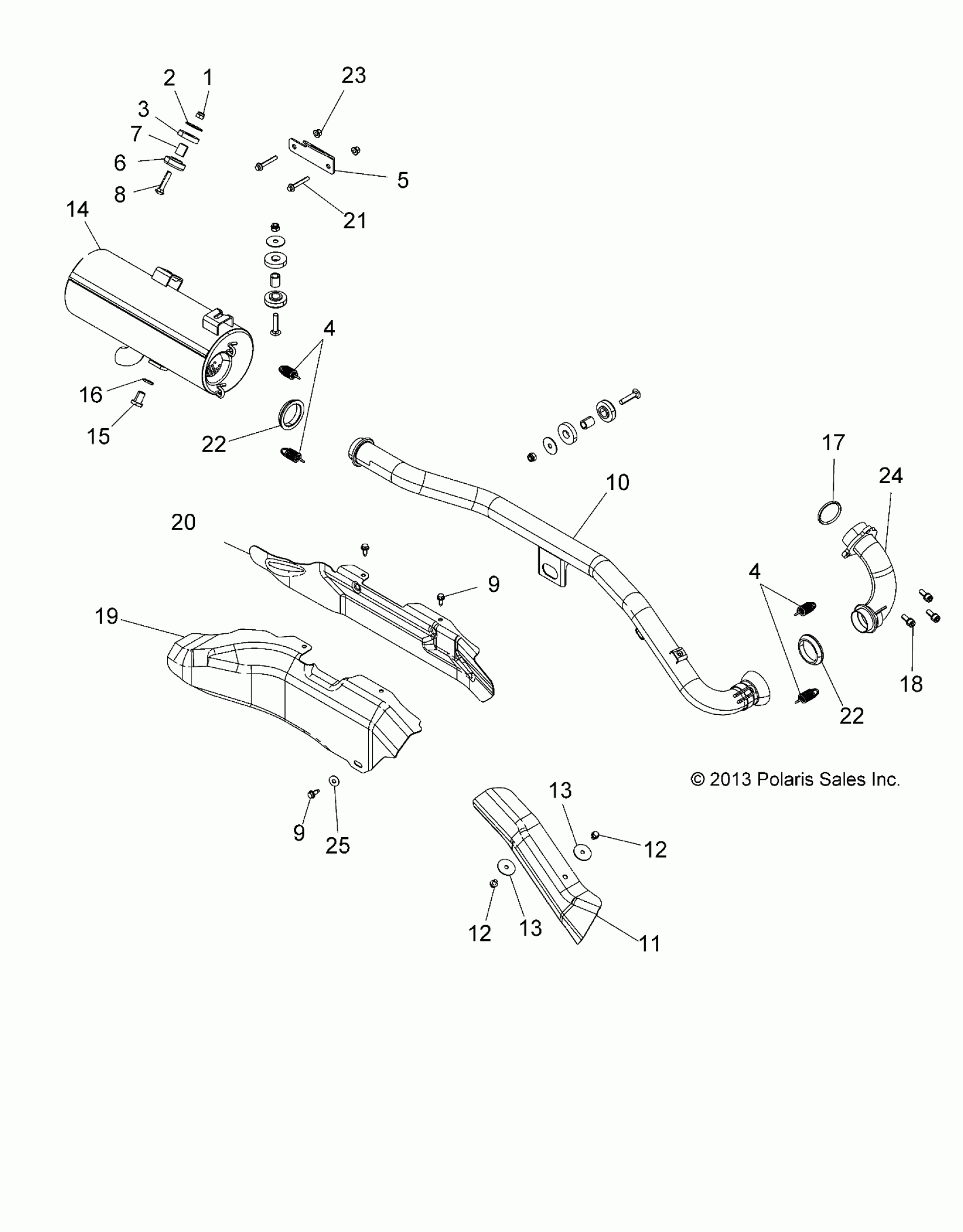

Polaris SPORTSMAN 570 EFI EPS - A15SEE57AA/AC/AJ ENGINE, EXHAUST - A15SEE57AA/AC/AJ (49ATVEXHAUST14SP570) Diagram
#
Description
Price
1
NUT-5/16-18 NYLOK-Y
7542324
$1.49
2
WASHER
7555716
$1.59
3
WASHER, RUBBER
5410436
$1.59
4
SPRING
7041804
$7.99
4
SPRING
7041804
$7.99
5
BRACKET, SILENCER, FRAME
5241663
$10.39
6
DAMPENER, VIBRATION
5412659
$3.99
7
BUSHING
5010192
$6.39
8
BOLT
7515316
$2.39
9
SCREW
7517386
$1.49
9
SCREW
7517386
$1.49
10
PIPE, EXHAUST, POWDER BLACK
1262378-489
Unavailable
11
SHIELD, HEAT, PIPE MOUNT
5257786
$51.99
12
Screw
7515197
$1.49
12
Screw
7515197
$1.49
13
WASHER, FLAT
7556586
$3.99
13
WASHER, FLAT
7556586
$3.99
14
SILENCER,EXHAUST, POWDER BLACK
1262445-489
$283.99
15
BOLT
7512666
$2.39
16
WASHER, CLEAN OUT
7556230
$1.49
17
GASKET-EXHAUST SEALING
5253989
$27.99
18
SCREW
7518984
$7.99
19
SHIELD, EXHAUST, OUTER, FRAME MOUNT
5257785
$51.99
20
SHIELD, EXHAUST, INNER, FRAME MOUNT
5258050
$61.86
21
Bolt
7518341
$4.79
22
SEAL, EXHAUST
5256385
$27.99
22
SEAL, EXHAUST
5256385
$27.99
23
NUT-M6 FLANGE,NYLOC
7547274
$1.49
24
MANIFOLD
1262376
$158.39
25
WASHER
7555859
$1.49
