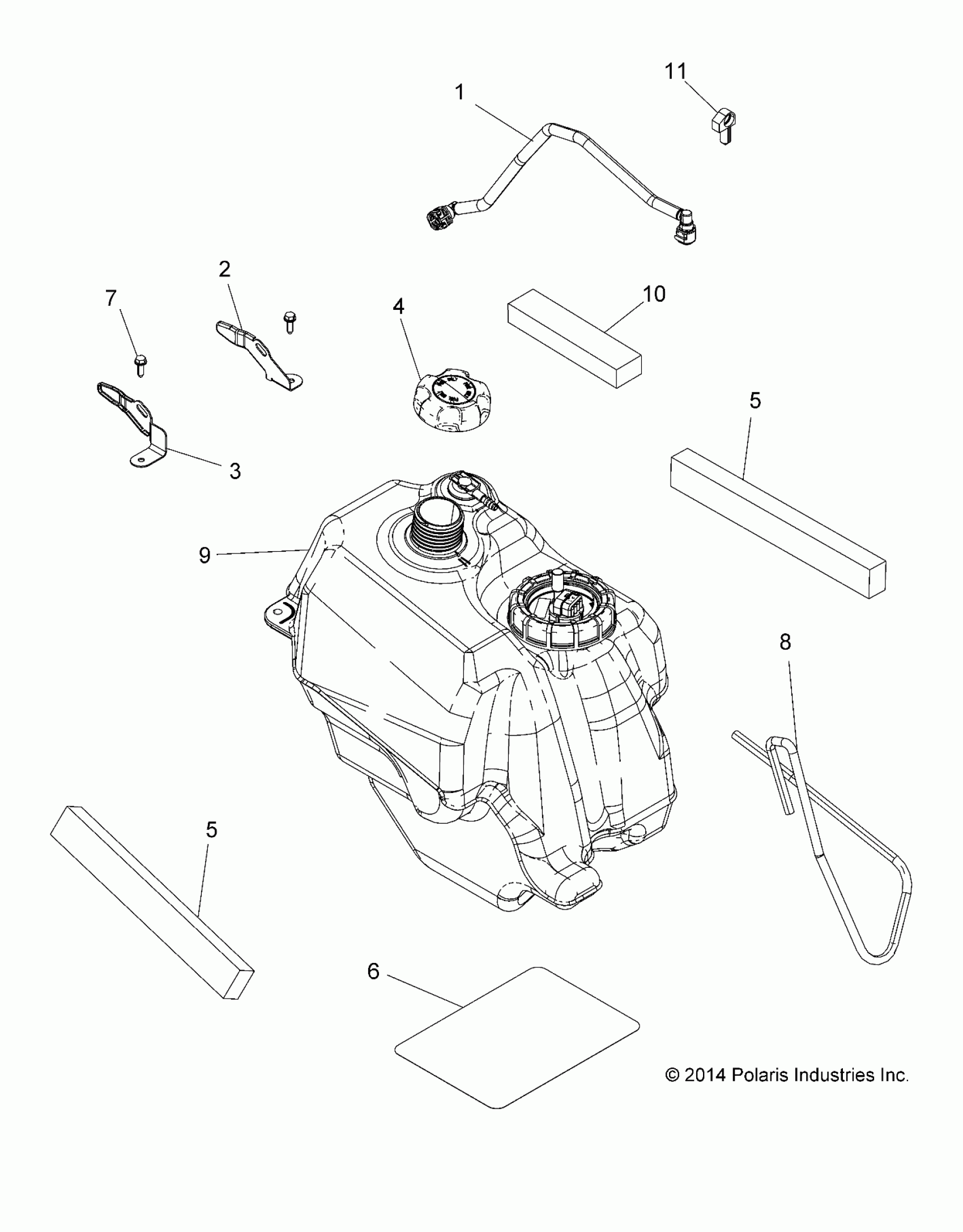

Polaris SPORTSMAN 570 EFI EPS - A15SEE57AA/AC/AJ BODY, FUEL TANK ASM. - A15SEE57AA/AC/AJ (49ATVFUEL15570SP) Diagram

#

Description

Price

-

KIT, FUEL PUMP [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2205469

Unavailable

1

ASM., FUEL LINE, HARD

2521390

$63.99

2

BRACKET, SEAT BASE, CAB MOUNT, LH

5257799

$35.19

3

BRACKET, SEAT BASE, CAB MOUNT, RH

5257800

Unavailable

4

CAP-GAS TANK

5439075

$23.99

5

FOAM, SEAL

5813255

$7.19

5

FOAM, SEAL

5813255

$7.19

6

FOIL, FIBER, FUEL TANK [BUILT 10/7/14 AND AFTER]

5814270

$23.99

6

FOIL, FUEL TANK [BUILT 10/6/14 AND BEFORE]

5813994

$11.43

7

SCREW

7512232

$1.49

8

Line, Fuel

8450003-1525

Unavailable

9

ASM., FUEL TANK

2521333

$879.99

10

Foam, Cover

5813265

Unavailable

11

Clip

7670102

$2.39

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP [BUILT 10/7/14 AND AFTER]

7081916

$4.79
