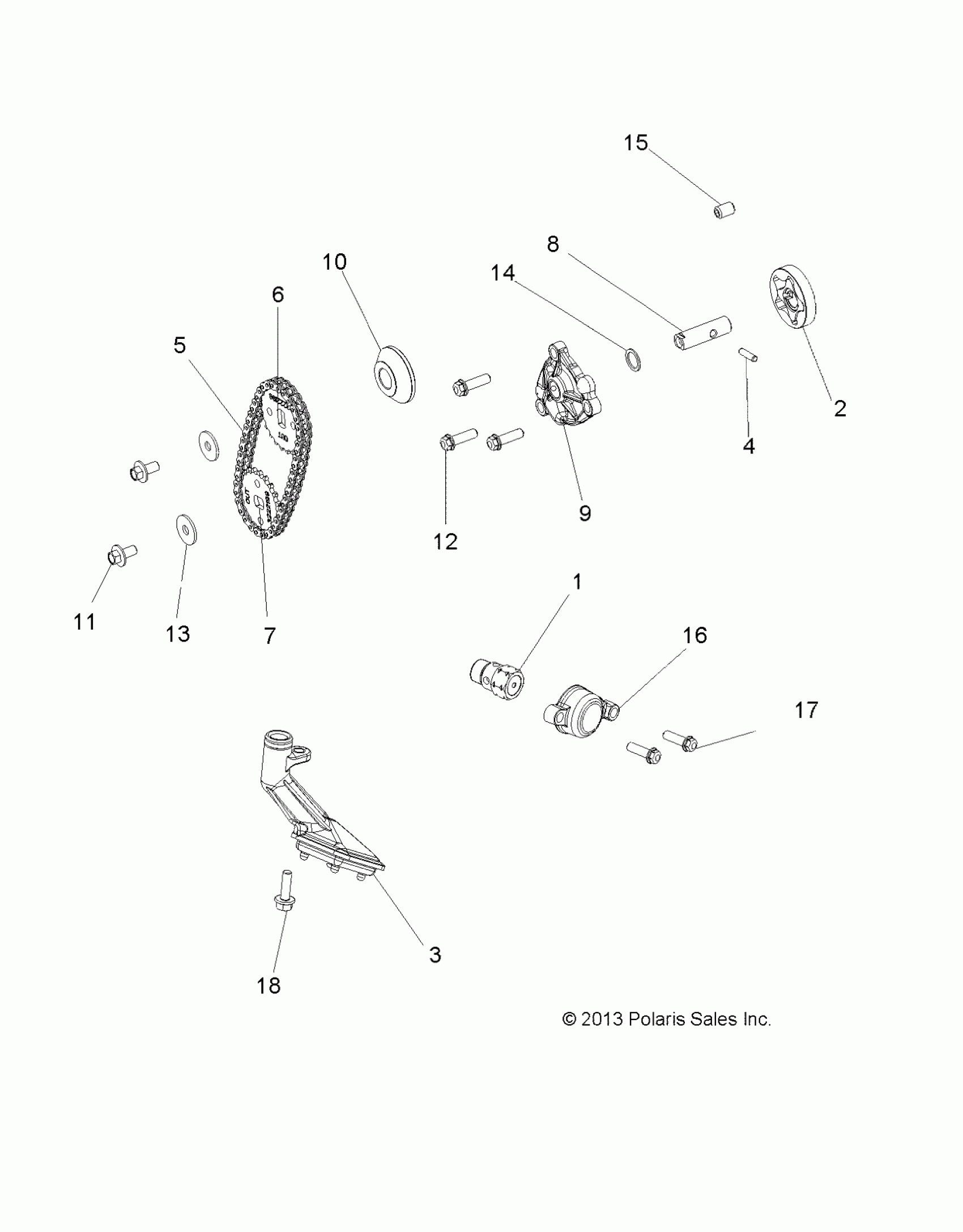

Polaris SPORTSMAN 570 EFI EPS - A14MH5EAA/EAC/EAJ ENGINE, OIL PUMP - A14MH5EAA/EAC/EAJ (49ATVOILPUMP14SP570) Diagram

#

Description
Price

1

ASM., REGULATOR VALVE [BUILT 2/18/14 AND AFTER]

2521459

$56.65

1

ASM., REGULATOR VALVE [BUILT 2/17/14 AND BEFORE]

2521400

$56.65

2

ASM-GEROTOR

1204293

$60.70

3

PICKUP, OIL

2521334

$89.99

4

PIN, SOLID

3022308

$3.97

5

CHAIN, OIL PUMP DRIVE

3222216

$32.37

6

SPROCKET-23T,DRIVE

3222198

$12.94

7

SPROCKET-21T,DRIVEN

3222199

$12.94

8

SHAFT-OIL PUMP

5138077

$28.32

9

COVER, OIL PUMP

5138320

$40.46

10

SPACER-SPROCKET

5137451

$39.68

11

SCREW

7517257

$9.52

12

SCREW

7518576

$3.17

13

WASHER

7556054

$11.33

14

WASHER-11.2X15.0X1.0

7556570

$3.97

15

JET-OIL,OIL PUMP

2540080

$10.46

16

COVER

5138339

$12.13

17

SCREW

7518576

$3.17

18

SCREW

7516822

$2.38
