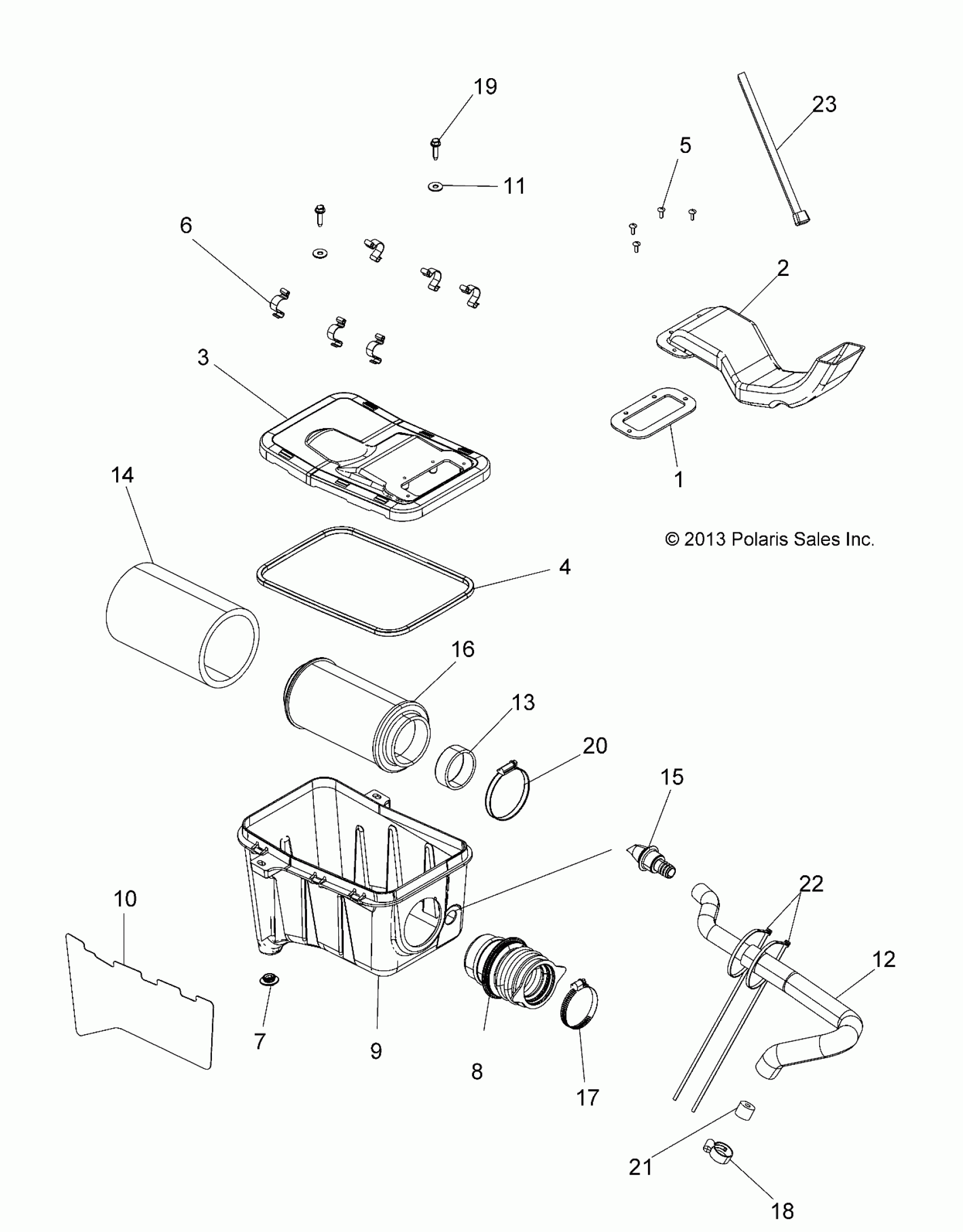

Polaris SPORTSMAN 570 EFI EPS - A14MH5EAA/EAC/EAJ ENGINE, AIR INTAKE SYSTEM - A14MH5EAA/EAC/EAJ (49ATVAIRBOX14570) Diagram

#

Description
Price

1

Gasket, Intake

5411422

$6.63

2

DUCT, AIR INLET

5450386

$35.99

3

COVER, AIR BOX

5450388

Unavailable

4

SEAL, AIRBOX COVER

5813949

$27.99

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

CLIP-AIR BOX

5242044

$9.59

7

PLUG-COMPARTMENT

5412981

Unavailable

8

BOOT, INTAKE

5414638

$23.99

9

BOX, AIR INTAKE

5450387

$127.99

10

FOIL, AIRBOX

5813982

$19.99

11

Washer, Flat

7555859

$1.49

12

ASM., HOSE, BREATHER

1240817

$67.99

13

SLEEVE, CARB, INNER

5433847

$13.59

14

Filter, Precleaner Sleeve

5811633

$11.99

15

VALVE, BREATHER

7052577

$23.99

16

FILTER, AIR INTAKE

7080595

Unavailable

16

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

17

Clamp, Narrow Band

7080413

$3.19

18

CLAMP, HOSE

7081174

$7.19

19

Screw

7515179

$2.39

20

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

21

BUSHING

5415018

$61.59

22

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

23

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
