Description

Price

-

ASM., TRANSMISSION, NO DIFFERENTIAL, SINGLE [INCL. ALL]

1333181

$2,648.79

1

SCREW

3234114

$7.19

2

SEAL, TRIPLE LIP

3233878

$32.37

2

SEAL, TRIPLE LIP

3233878

$32.37

3

ASM., TRANSMISSION CASE, LH

3235529

$359.99

4

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

4

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

5

CHAIN

3234057

$263.99

6

GEARCASE, MAIN, RH, MACH

3235265

$637.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

8

SPROCKET, 19T

3234060

$239.99

9

DEFLECTOR, OIL

3234061

$23.99

10

SCREW, TAPPING W/PLAIN WASHER

3233749

$5.59

11

GEAR OUTPUT, 91T

3234062

$251.99

12

RING, RETAINING

3233699

$7.19

13

SCREW, TAPPING

3234247

$5.59

13

SCREW, TAPPING

3234247

$5.59

13

SCREW, TAPPING

3234247

$5.59

14

COVER, CENTER DRIVE BEARING

3234063

$27.99

15

RING, RETAINING

3233364

$6.39

15

RING, RETAINING

3233364

$6.39

16

SHIM

3234271

$19.99

17

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

18

PINION, CENTER DRIVE, 13T

3234263

$405.59

19

RING, RETAINING

3234067

$7.99

20

WASHER, THRUST

3233176

$9.59

21

GEAR, 35T

3236032

$131.99

22

BEARING, NEEDLE

3233009

$39.99

23

WASHER

3233855

$10.39

24

DOG, L/P

3234257

$143.99

25

DOG, ENGAGEMENT, 6 FACE

3234258

$91.99

26

RING, RETAINING

3233306

$4.79

26

RING, RETAINING

3233306

$4.79

27

WASHER, THRUST

3234248

$9.59

27

WASHER, THRUST

3234248

$9.59

28

SPROCKET, 38T, 6 FACE

3234290

$151.99

29

SHAFT, REVERSE, 26T

3234280

$259.99

30

GEAR, 33T, 6 FACE

3234291

$163.99

31

COLLAR-SHIFT

3234073

$31.99

32

Plate, Park, 12 Face

3233915

$39.99

33

BEARING, BALL

3234274

$27.99

33

BEARING, BALL

3234274

$27.99

34

SEAL

3234851

$35.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

36

SHAFT, INPUT, 39T

3235526

$239.99

37

CHAIN

3234264

$95.99

38

FORK, SHIFT

3234077

$171.99

38

FORK, SHIFT

3234077

$171.99

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

40

RAIL, SHIFT SHAFT

3234079

Unavailable

41

PIN, DOWEL

3233432

$7.19

42

SPRING, TORSION

3233431

$23.99

43

CAM, CHAIN TENSIONER

3233434

$12.79

44

SHOE, CHAIN TENSIONER

3233433

$27.99

45

DRUM, SHIFT

3234360

$171.99

46

GEAR-SECTOR,31T

3233832

$31.99

47

SHAFT, SHIFT

3233831

$59.99

48

O-RING

3233869

$5.59

49

Pawl, Detent

3233829

$31.99

50

SPRING, COMPRESSION

3234578

$12.79

51

COVER, SECTOR GEAR W/PINS

3234188

$107.99

52

BELLCRANK

3234584

$23.99

53

NUT, LOCK

3233961

$2.79

54

SWITCH, ROTARY, 2 PIN

7661999

$111.99

55

RING, RETAINING

3233834

$10.39

56

GEAR, SECTOR, 16T

3233839

$31.99

57

Star, Detent

3233909

$23.99

58

O-RING

3233076

$6.39

59

SHAFT, 13T

3234262

$307.99

60

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

61

RING, RETAINING

3234336

$5.59

62

TUBE, SNORKEL

3234278

$95.99

63

SCREW

3234086

$5.59

63

SCREW

3234086

$5.59

64

SHIM

3234272

$31.99

65

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

66

SEAL, TRIPLE LIP

3234113

$35.99

67

TUBE, VENT

3234230

$9.59

69

PIN, DOWEL

3234244

$7.19

69

PIN, DOWEL

3234244

$7.19

70

PLUG

3233194

Unavailable

71

SPRING, COMPRESSION

3234089

$23.99

71

SPRING, COMPRESSION

3234089

$23.99

72

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

72

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

73

WASHER-CUP

3234091

$9.59

73

WASHER-CUP

3234091

$9.59

74

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

75

SHIM

3234273

$12.79

76

BEARING, NEEDLE

3233103

$31.99

76

BEARING, NEEDLE

3233103

$31.99

77

SENSOR-SPEED,TRANS

4013908

Unavailable

78

O-RING

3234302

$7.19

79

SUBASM., SHAFT, 59T

3234421

$752.39

80

SPACER

3235243

$9.59

81

PLUG, MAGNETIC

3234529

Unavailable

82

BRACKET, WIRE HARNESS

3235350

$8.79

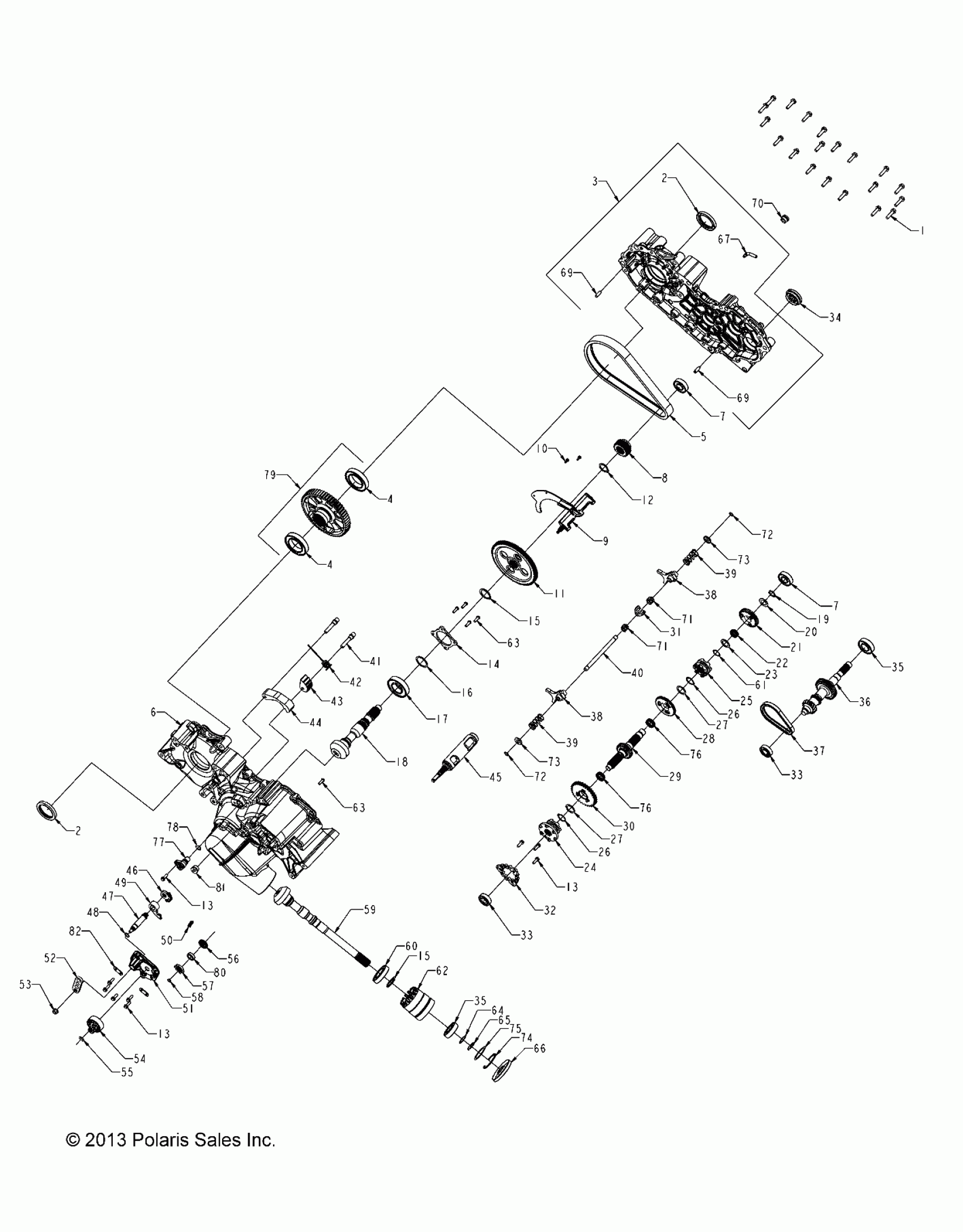

Polaris SPORTSMAN 570 EFI EPS - A14MH5EAA/EAC/EAJ DRIVE TRAIN, MAIN GEARCASE - A14MH5EAA/EAC/EAJ (49ATVGEARCASE1333181) Diagram

ASM., TRANSMISSION, NO DIFFERENTIAL, SINGLE [INCL. ALL]

SCREW

SEAL, TRIPLE LIP

SEAL, TRIPLE LIP

ASM., TRANSMISSION CASE, LH

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

CHAIN

GEARCASE, MAIN, RH, MACH

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

SPROCKET, 19T

DEFLECTOR, OIL

SCREW, TAPPING W/PLAIN WASHER

GEAR OUTPUT, 91T

RING, RETAINING

SCREW, TAPPING

SCREW, TAPPING

SCREW, TAPPING

COVER, CENTER DRIVE BEARING

RING, RETAINING

RING, RETAINING

SHIM

BEARING,BALL 6207 C3 35X72X17

PINION, CENTER DRIVE, 13T

RING, RETAINING

WASHER, THRUST

GEAR, 35T

BEARING, NEEDLE

WASHER

DOG, L/P

DOG, ENGAGEMENT, 6 FACE

RING, RETAINING

RING, RETAINING

WASHER, THRUST

WASHER, THRUST

SPROCKET, 38T, 6 FACE

SHAFT, REVERSE, 26T

GEAR, 33T, 6 FACE

COLLAR-SHIFT

Plate, Park, 12 Face

BEARING, BALL

BEARING, BALL

SEAL

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

SHAFT, INPUT, 39T

CHAIN

FORK, SHIFT

FORK, SHIFT

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

RAIL, SHIFT SHAFT

PIN, DOWEL

SPRING, TORSION

CAM, CHAIN TENSIONER

SHOE, CHAIN TENSIONER

DRUM, SHIFT

GEAR-SECTOR,31T

SHAFT, SHIFT

O-RING

Pawl, Detent

SPRING, COMPRESSION

COVER, SECTOR GEAR W/PINS

BELLCRANK

NUT, LOCK

SWITCH, ROTARY, 2 PIN

RING, RETAINING

GEAR, SECTOR, 16T

Star, Detent

O-RING

SHAFT, 13T

BEARING-BALL 6007 C3 35 X 62 X 14

RING, RETAINING

TUBE, SNORKEL

SCREW

SCREW

SHIM

RING,RETAINING BASIC,EXTERNAL 0.984
