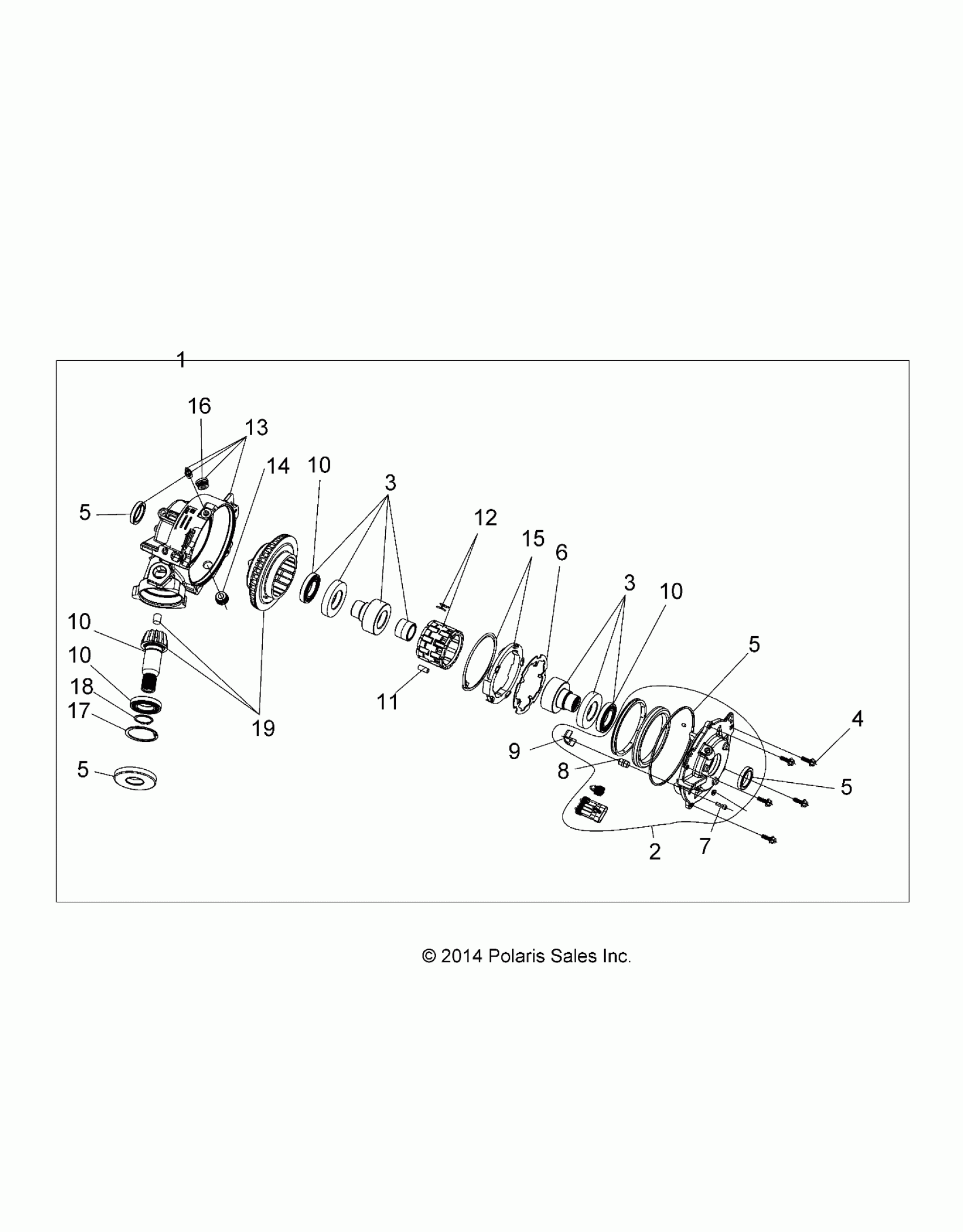

Polaris SPORTSMAN 570 EFI EPS - A14MH5EAA/EAC/EAJ DRIVE TRAIN, FRONT GEARCASE - A14MH5EAA/EAC/EAJ (49RGRTRANSINTL1333067) Diagram

#

Description
Price

1

ASM., GEARCASE, AWD [INCL. ALL]

1333067

Unavailable

2

ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]

3235162

$467.17

3

KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]

3234936

Unavailable

3

KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]

3234936

Unavailable

4

KIT, FASTENER [INCL. SCREWS]

3235469

$13.59

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235470

Unavailable

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235470

Unavailable

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235470

Unavailable

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3235470

Unavailable

6

PLATE, ARMATURE

3234407

$107.99

7

SET, SCREW

-------

Unavailable

8

ASM., THRUST BUTTON

-------

Unavailable

9

PLATE, THRUST

-------

Unavailable

10

Bearing

3234390

$35.99

10

Bearing

3234390

$35.99

10

Bearing

3234390

$35.99

10

Bearing

3234390

$35.99

11

KIT-ROLLER [INCL. COMPLETE SET OF ROLLERS]

3234393

$111.84

12

ASM., ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]

3234907

$323.99

12

ASM., ROLL CAGE, BILLET ALUM [HIGH PERFORMANCE ACCESSORY][INCL. CLIP SET]

3235262

$526.49

13

ASM., GEARCASE [INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL]

3235471

$457.59

14

ASM., DRAIN PLUG, MAGNETIC

3234412

$39.99

15

KIT, SPRING [INCL. SPRING RETAINER, TORSION SPRING]

3234908

$87.99

16

PLUG, OIL FILL

3234414

Unavailable

17

RING, RETAINING

3234416

$10.39

18

RING, RETAINING

3235177

$6.39

19

ASM., PINION GEAR [INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN][INCL. 10,17,18]

3235472

Unavailable
