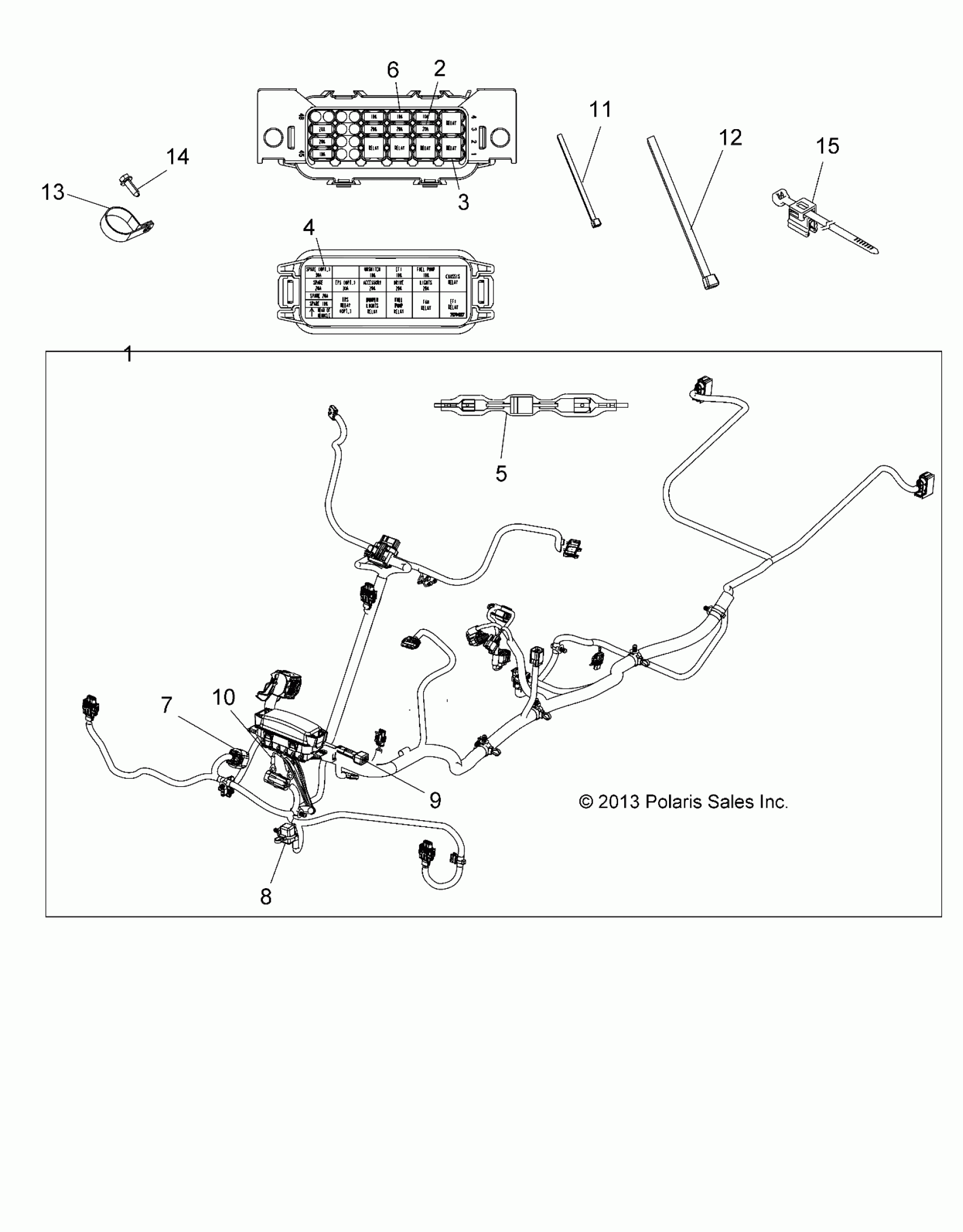

Polaris SPORTSMAN 570 EFI - A14MH57AA/AC/AD ELECTRICAL, HARNESS - A14MH57AA/AC/AD (49ATVHARNESS14SP570) Diagram

#

Description
Price

1

COVER, FUSEBOX

4015011

$55.99

1

SEAL, FUSE CENTER

5415598

$8.79

1

HARNESS, MAIN [INCL COVER]

2412398

$800.79

2

FUSE-PARK,20 AMP

2434017

Unavailable

3

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

4

LABEL, FUSE BOX

7179427

Unavailable

5

DIODE, 6 AMP

2411035

$51.99

6

FUSE-IGNITION,10 AMP

2434016

$4.79

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

BREAKER, CIRCUIT, 10 AMP

2410692

$24.27

9

DIODE, 6 AMP

2410000

$35.99

10

KIT, FUSE LINK, .8MM

2202607

$39.99

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

14

SCREW

7512232

$1.49

15

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59
