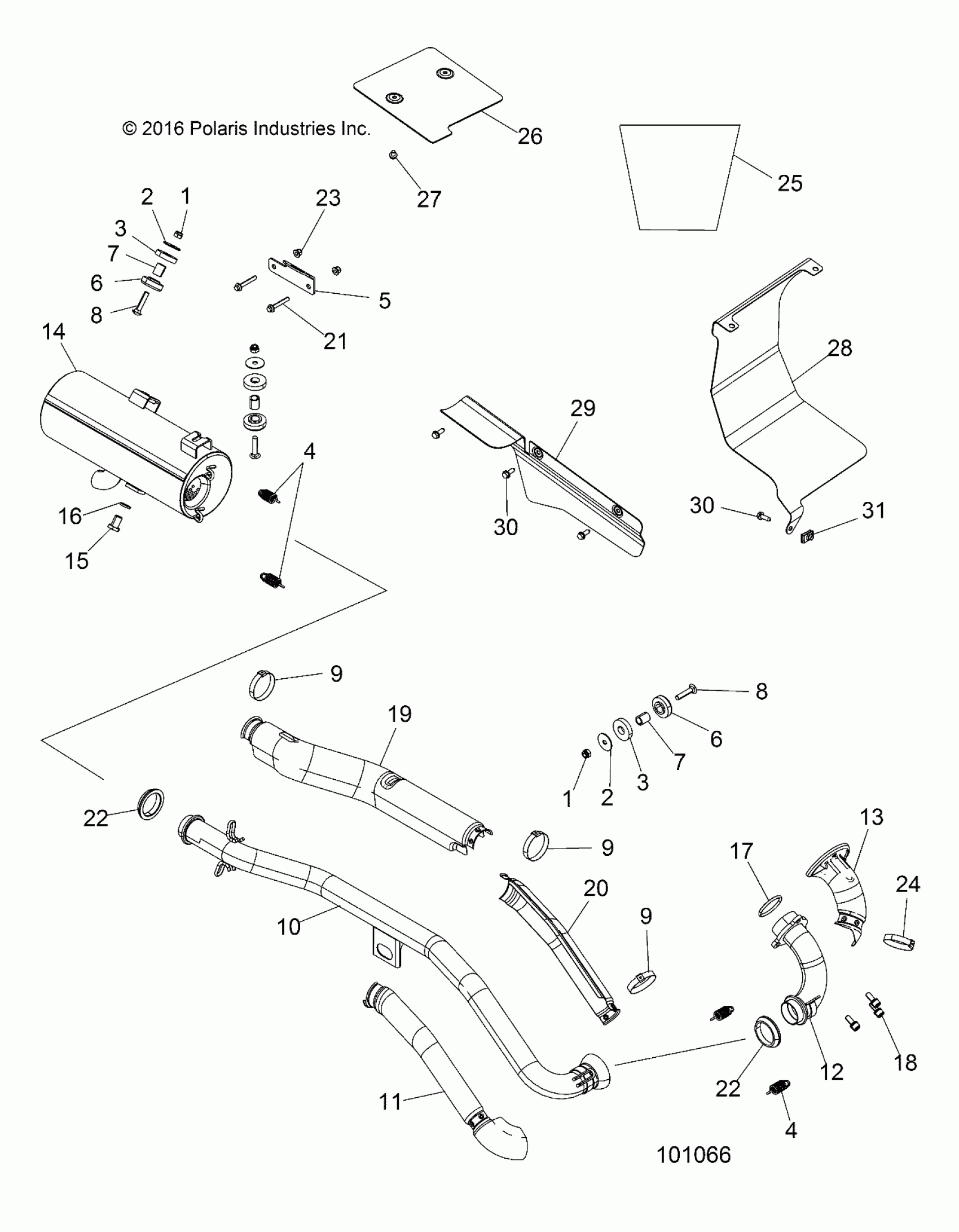

Polaris SPORTSMAN 570 6X6 (R10) - A17S6E57A1 ENGINE, EXHAUST - A17S6E57A1 Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

WASHER, RUBBER

5414945

$4.79

3

WASHER, RUBBER

5414945

$4.79

4

SPRING

7041804

$7.99

4

SPRING

7041804

$7.99

5

BRACKET, SILENCER, FRAME

5241663

$10.39

6

DAMPER-VIBRATION

5414946

$4.79

6

DAMPER-VIBRATION

5414946

$4.79

7

BUSHING

5010192

$6.39

7

BUSHING

5010192

$6.39

8

BOLT

7515316

$2.39

8

BOLT

7515316

$2.39

9

CLAMP-HOSE, 1.750-SS

7080560

$11.19

9

CLAMP-HOSE, 1.750-SS

7080560

$11.19

9

CLAMP-HOSE, 1.750-SS

7080560

$11.19

10

ASM-EXHAUST PIPE,570 EFI,SS [INCL. 9,10,11,19,20]

1262917

$334.03

11

SHIELD-HEAT,EXHAUST,MID

5260801

$59.99

12

MANIFOLD

1262376

$158.39

13

SHIELD-HEAT,EXHAUST HEADPIPE

5260800

$35.99

14

SILENCER,EXHAUST, POWDER BLACK

1262445-489

$283.99

15

BOLT

7512666

$2.39

16

WASHER, CLEAN OUT

7556230

$1.49

17

GASKET-EXHAUST SEALING

5253989

$27.99

18

SCREW

7517555

$8.79

19

SHIELD-HEAT,EXHAUST,REAR

5260802

Unavailable

20

SHIELD-HEAT,EXHAUST MID,INNER

5260808

$63.99

21

Bolt

7518341

$4.79

22

SEAL, EXHAUST

5256385

$27.99

22

SEAL, EXHAUST

5256385

$27.99

23

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

24

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.79

25

FOIL, FRAME, SUPPORT [TO 8/15/16]

5814363

Unavailable

26

SHIELD-EXHAUST,BOX,6X6

5262291

$27.99

27

SCREW-1/4-20X3/4-TAP/R-Y

7512232

$1.49

28

SHIELD-FUEL TANK,FRAME MNT,TRG [FROM 8/15/16]

5262925

$27.99

29

SHIELD-HEAT,AIRBOX [FROM 8/15/16]

5263227

$23.99

30

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

30

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

31

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59
