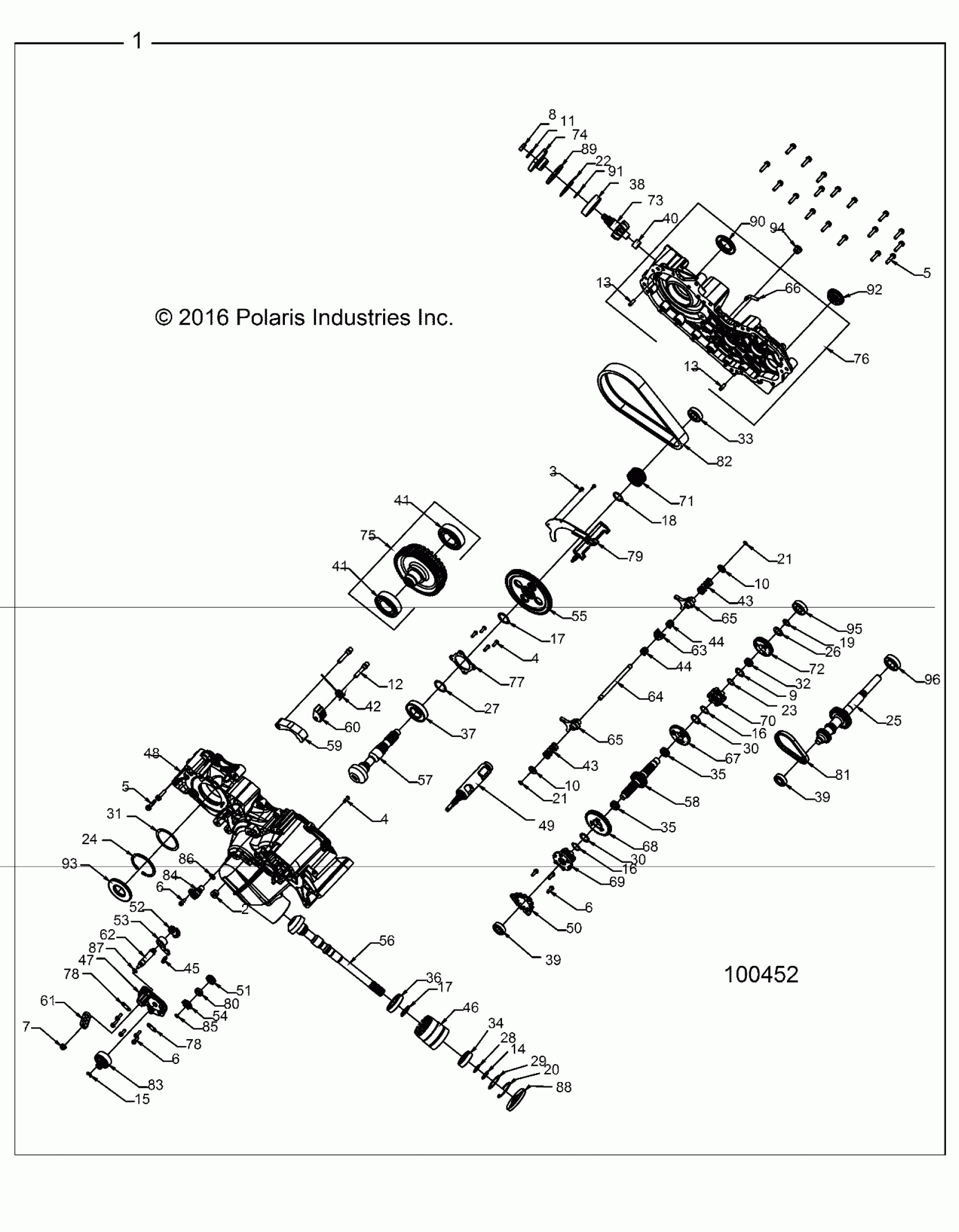

Polaris SPORTSMAN 570 6X6 (R10) - A17S6E57A1 DRIVE TRAIN, MAIN GEARCASE - A17S6E57A1 Diagram

#

Description
Price

1

ASM-TRANSMISSION,PDS,6X6 [INCL. ALL]

1333498

$3,399.99

2

PLUG, 3/4-16 HOLLOW HEX

3233794

$15.37

3

SCREW, TAPPING TORX PH 8-32 X.50

3233749

$5.65

4

SCREW, TORX PAN HD 1/4-20 X 0.75

3234086

$5.56

4

SCREW, TORX PAN HD 1/4-20 X 0.75

3234086

$5.56

5

SCREW, TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$7.14

5

SCREW, TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$7.14

6

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$5.56

6

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$5.56

6

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$5.56

7

NUT, LOCK HEX FLANGE NYLON 5/16-24

3233961

$3.32

8

NUT, HEX M16 X 2.0

3234776

$10.32

9

WASHER 1.250 X .876 X .05

3233855

$10.32

10

WASHER-CUP

3234091

$9.52

10

WASHER-CUP

3234091

$9.52

11

CUP WASHER, LOCKING 17 X 30

3234777

$43.65

12

PIN

3233432

$7.14

13

PIN 5/16 X1.00

3233247

$8.99

13

PIN 5/16 X1.00

3233247

$8.99

14

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

15

RING SNAP

3233834

$10.32

16

RING, RETAINING

3233306

$4.76

16

RING, RETAINING

3233306

$4.76

17

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

17

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

18

RING RTNG, IRR 7200-118

3233699

$7.27

19

RING, RETAINING BASIC EXTERNAL, .787 SHAFT

3234067

$7.94

20

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

22

RING, RETAINING BEVELED INTERNAL 2.835

3234158

$23.81

23

RING, RETAINING BASIC EXTERNAL DIA .84

3234336

$5.56

24

RING, RETAINING INTERNAL DHO-85 STZD

3235849

$38.71

25

SHAFT, INPUT-39T REM BOSS

3235782

$284.99

26

WASHER THRUST 1.270 X .793 X 0.065

3233176

$9.52

27

SHIM

3233611

$34.99

28

SHIM 1.180 OD X .995 ID

3234272

$36.41

29

SHIM 2.040 OD X 1.63 ID

3234273

$13.75

30

WASHER, THRUST 1.300 X .995 X 0.065

3234248

$9.52

30

WASHER, THRUST 1.300 X .995 X 0.065

3234248

$9.52

31

SHIM 2.750 X 3.3125 X .050

3235850

$134.99

32

BEARING, NEEDLE CAGE ASSY

3233009

$39.68

33

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

34

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

35

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

35

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

36

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

37

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

38

BEARING, BALL 6306 STD 30X72X19

3233714

$31.75

39

BEARING, BALL 6203 C3 17X40X12

3234274

$27.78

39

BEARING, BALL 6203 C3 17X40X12

3234274

$27.78

40

BEARING, NEEDLE, DRAWN SHELL .75 X 1 X 0.625

3234799

$15.87

41

BEARING, BALL DOUBLE ROW 45 X 85 X 23 4209 C3

3235851

$119.99

41

BEARING, BALL DOUBLE ROW 45 X 85 X 23 4209 C3

3235851

$119.99

42

TORSION SPRING

3233431

$24.27

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

44

SPRING, COMPRESSION .46 I.D. X .73

3234089

$28.32

44

SPRING, COMPRESSION .46 I.D. X .73

3234089

$28.32

45

SPRING, COMPRESSION DETENT

3234578

$13.75

46

TUBE, SNORKEL MACH

3234278

$101.17

47

COVER, SECTOR GEARS MACH

3234188

$113.32

48

CASE, RH MACH

3235852

$724.99

49

DRUM, SHIFT MACH

3234360

$182.13

50

PLATE, PARK 12-FACE

3233915

$40.46

51

GEAR, SECTOR 16T

3233839

$36.41

52

GEAR-SECTOR,31T

3233832

$36.41

53

Pawl, Detent

3233829

$36.41

54

Star, Detent

3233909

$28.32

55

GEAR OUTPUT 91T, HCR

3234062

$267.13

56

GEAR, 13T SNORKEL

3234262

$409.99

57

PINION, 13T CENTER DRIVE

3234263

$532.52

58

SHAFT, REVERSE 26T

3234071

$250.94

59

SHOE, CHAIN TENSIONER

3233433

$32.37

60

CAM, CHAIN TENSIONER

3233434

$13.75

61

BELLCRANK .510 HOLE, 92 ~

3234232

$34.99

62

SHAFT, SHIFT

3233831

$60.70

63

COLLAR-SHIFT

3234073

$31.75

64

RAIL, SHIFT SHAFT

3234079

$28.32

65

FORK, SHIFT

3234077

$182.13

65

FORK, SHIFT

3234077

$182.13

66

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

67

SPROCKET 38T 6-FACE

3233854

$169.99

68

GEAR, 33T 6-FACE

3233852

$246.89

69

DOG, L/P

3234257

$153.79

70

ENGAGEMENT DOG, 6-FACE

3234258

$97.13

71

SPROCKET, 19T, 1.25"

3234441

$137.60

72

GEAR, HELICAL-35T

3235783

$155.54

72

GEAR, HELICAL-35T

3235783

$155.54

73

SHAFT-PINION,10T,STRAIGHTBEVEL

3235855

$479.98

73

SHAFT-PINION,10T,STRAIGHTBEVEL

3235855

$479.98

74

COUPLER

3235925

$109.27

77

COVER, BEARING CENTER DRIVE

3234063

$32.37

78

BRACKET WIRE HARNESS

3235350

$8.89

78

BRACKET WIRE HARNESS

3235350

$8.89

79

DEFLECTOR, OIL

3234061

$28.32

80

SPACER

3235243

$9.52

81

CHAIN .25P X .40W X 50L

3234264

$118.74

82

CHAIN SILENT 3/8" X 1.25" X 86P

3234442

$348.08

83

SWITCH, ROTARY 2 PIN RESISTIVE

7661999

$117.37

84

SENSOR-SPEED,TRANS

4013908

$109.27

85

O-RING, 2-012

3233076

$6.46

86

O-RING

3234302

$7.27

87

O-RING, -014

3233869

$5.65

88

SEAL, TRIPLE LIP 25 X 80 X 10

3234113

$36.41

89

SEAL, TRIPLE LIP, 40 X 72 X 7

3235924

$48.40

90

SEAL, TRIPLE LIP 40X70X7

3234300

$32.37

91

O-RING 2-023 NITRILE

3234785

$9.70

92

SEAL, TRIPLE LIP 25 X 47 VITON

3234851

$42.74

93

SEAL, TRIPLE LIP 40 X 85 X 7

3235856

$48.40

94

PLUG, 3/4-16 HOLLOW HEX

3233794

$15.37

95

BEARING-BALL,6204 C3,20X47X14

3235969

$31.75

96

BEARING,BALL,6205R SH2 C3 25X52X15

3235585

$38.08
