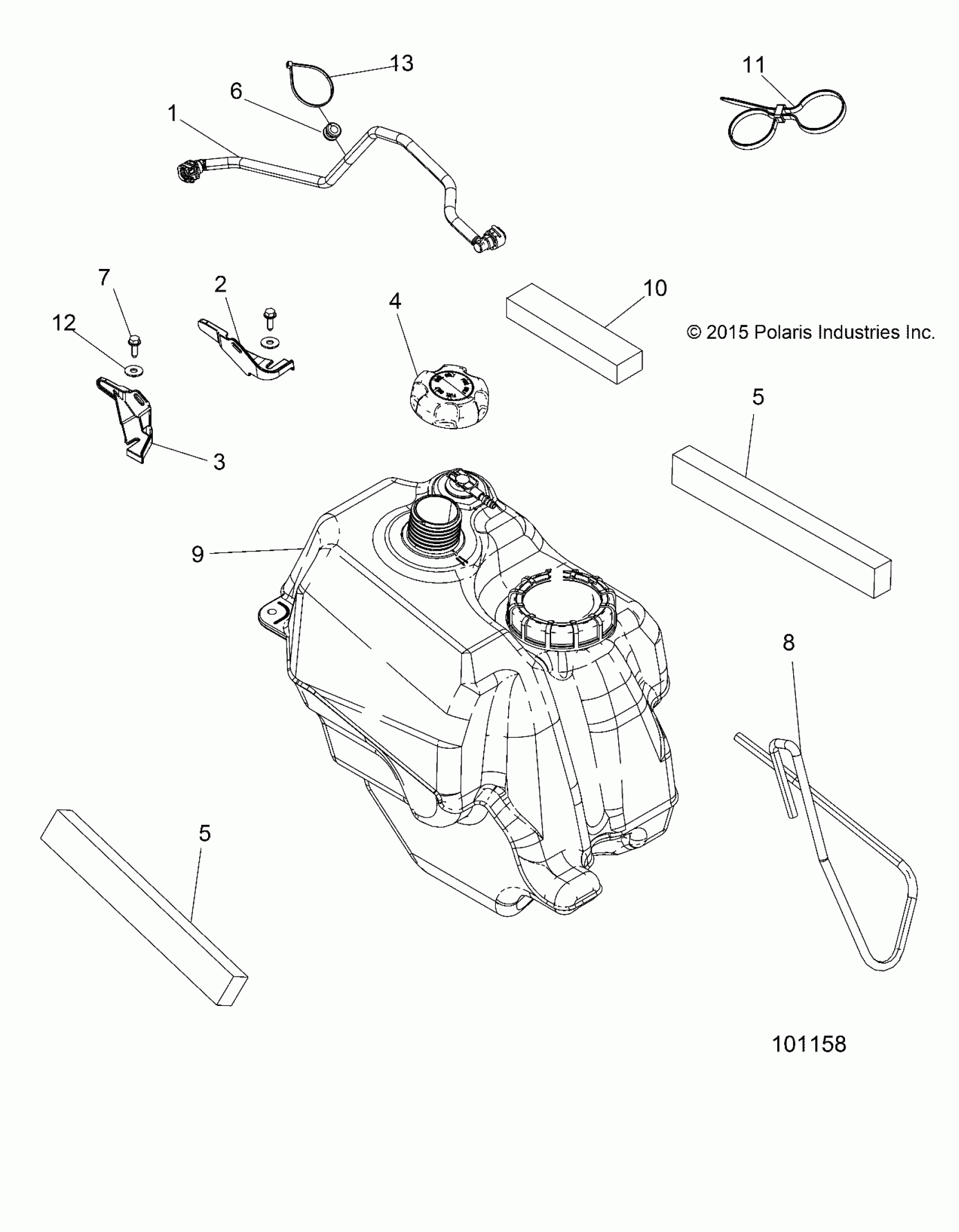

Polaris SPORTSMAN 570 6X6 (R10) - A17S6E57A1 BODY, FUEL TANK ASM. - A17S6E57A1 Diagram

#

Description

Price

1

ASM-FUEL LINE,HARD,TOUR

2521663

$37.59

2

BRKT-SEAT BASE,CAB MNT,PP,LH

5452276

$5.59

3

BRKT-SEAT BASE,CAB MNT,PP,RH

5452277

$5.59

4

CAP-GAS TANK

5439075

$23.99

5

FOAM, SEAL

5813255

$7.19

5

FOAM, SEAL

5813255

$7.19

6

GROMMET-ELEC SHOCK WIRE,SLIT

5413317

$2.39

7

Screw

7515179

$2.39

8

LINE, FUEL

8450040-86

$11.99

9

ASM-FUEL TANK,570EFI,6X6

2521630

$881.99

9

FUEL PUMP,SERVICE KIT,ATV,6X6 [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2207673

$404.79

10

Foam, Cover

5813265

Unavailable

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

WASHER

7555960

$3.99

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
