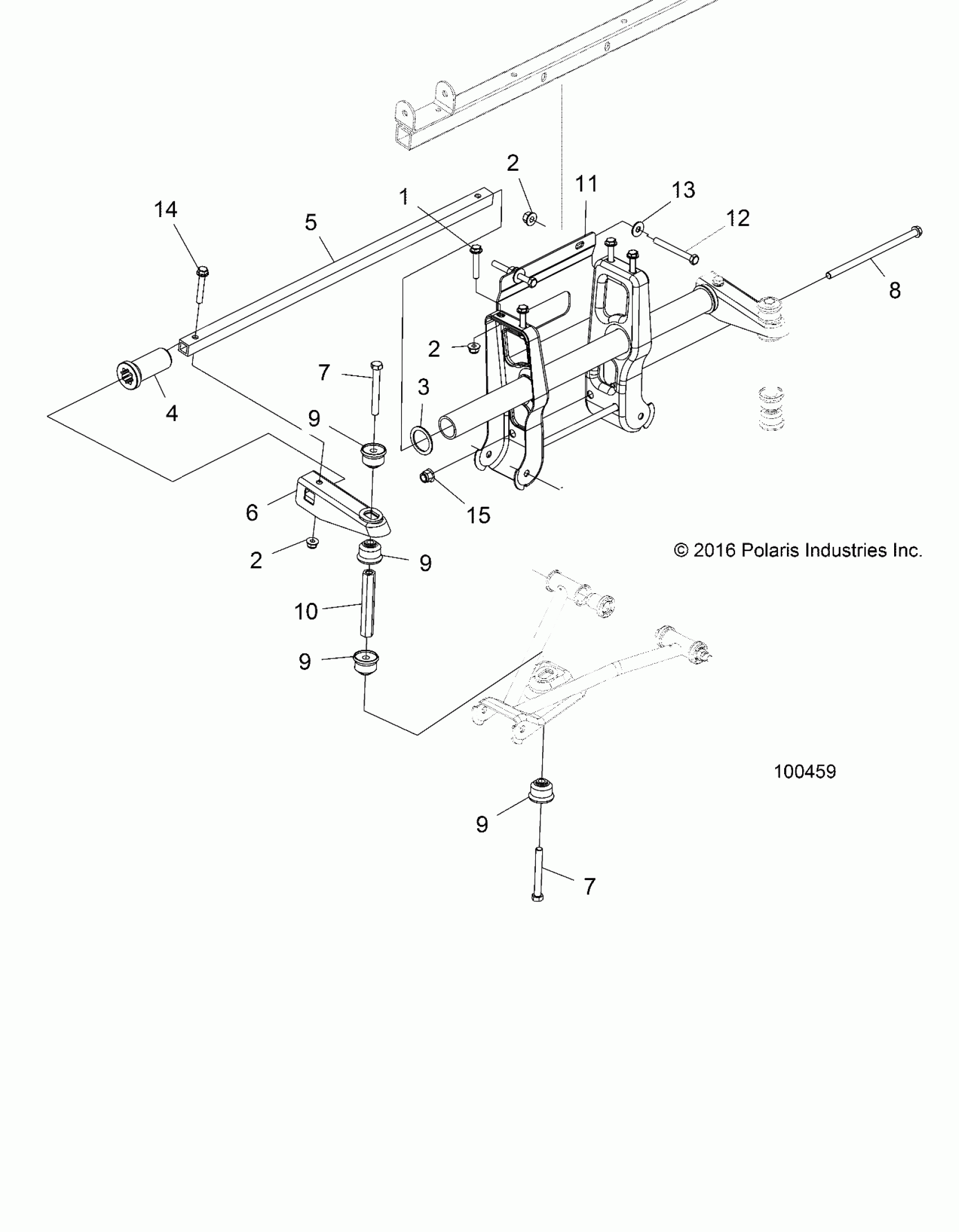

Polaris SPORTSMAN 570 6X6 (R05) - A19S6E57B1 SUSPENSION, TORSION BAR - A19S6E57B1 Diagram

#

Description
Price

1

BOLT, FLANGE

7518341

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

Washer

7555939

Unavailable

4

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

5

BAR, STABILIZER TUBE, BLACK

5334114-329

$91.99

6

ARM, STABILIZER BAR, BLACK

1543119-067

$62.92

7

SCREW

7517231

$7.19

7

SCREW

7517231

$7.19

8

SCR-HXFL-3/8-16X7 GR5 ZY3

7518365

$7.91

9

BUSHING-WSHR TORBAR,DURO80,ITW

5414877

Unavailable

9

BUSHING-WSHR TORBAR,DURO80,ITW

5414877

Unavailable

9

BUSHING-WSHR TORBAR,DURO80,ITW

5414877

Unavailable

9

BUSHING-WSHR TORBAR,DURO80,ITW

5414877

Unavailable

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

11

Support, Stabilizer, Black

1542677-067

$143.99

12

Screw

7515346

$5.59

13

Washer, Flat

7555734

$1.49

14

SCREW

7518876

$3.99

15

NUT-FLANGED,3/8-16 NYLON

7547180

$2.39
