- SPORTSMAN 570 6X6 (R05) - A19S6E57B1
SUSPENSION, REAR - A19S6E57B1

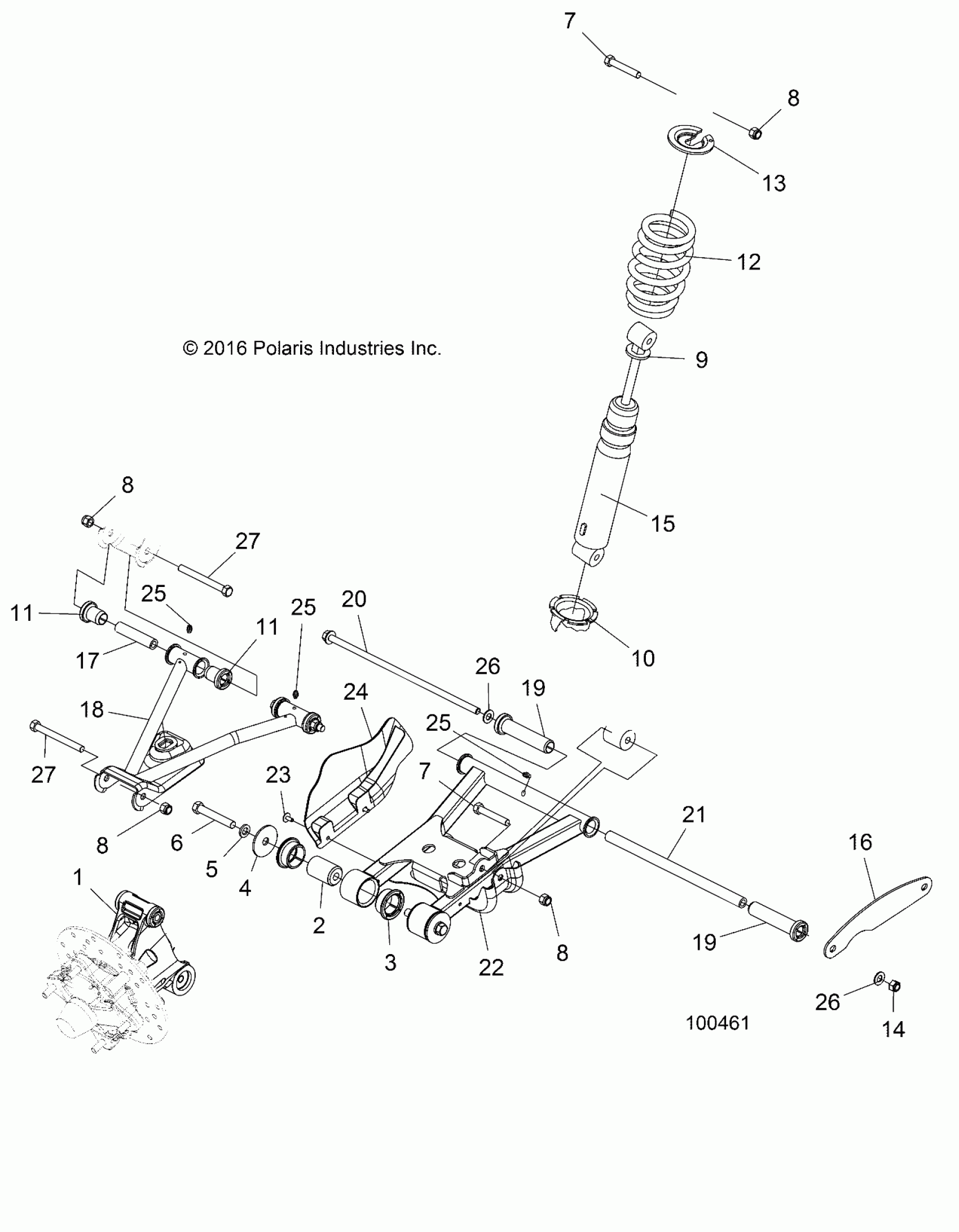

Polaris SPORTSMAN 570 6X6 (R05) - A19S6E57B1 SUSPENSION, REAR - A19S6E57B1 Diagram
#
Description
Price
1
CARRIER, BEARING, WHEEL, LH [LH]
5139363
$111.99
1
CARRIER-BEARING,WHEEL,RH [RH]
5137436
$103.99
2
BUSHING, BEARING CARRIER
5632291
$23.99
3
BUSHING, CONTROL, LOWER, BLACK
5438902
$4.79
4
WASHER, FLAT
7555740
$1.59
5
WASHER-LOCK, 7/16-B
7552614
$1.59
6
SCR-HH-7/16-14X2.75 GR5 ZY3 NY
7517873
$2.39
7
Screw
7515415
$1.49
7
Screw
7515415
$1.49
8
Nut, Nylok
7542439
$1.49
8
Nut, Nylok
7542439
$1.49
8
Nut, Nylok
7542439
$1.49
8
Nut, Nylok
7542439
$1.49
9
SHOCK-RR,IRS,6X6
7043451
$227.99
10
CAM-SPRING ADJUST,1-3/8
5631014
$31.99
11
BUSHING, A-ARM, SHORT, BLACK
5438895
$2.38
11
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]
1543326
$12.79
11
BUSHING, A-ARM, SHORT, BLACK
5438895
$2.38
11
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]
1543326
$12.79
12
SPRING-COMP,130/165,13.8LG
7041986-067
$55.99
13
RETAINER-SPRING,STEEL
5251753
$10.39
14
NUT-3/8-24 HEX LOC,GR8
7547344
$1.49
15
SLEEVE-SHOCK PROTECTOR
5433551
$39.99
16
STRAP-REAR GEARCASE,6X6,BLK
5252941-067
$31.99
17
SHAFT, A-ARM, SHORT
5020826
$11.99
18
WELD-UPPER CONTROL ARM,LH,BLK
1014320-067
$95.99
18
WELD-UPPER CONTROL ARM,RH,BLK
1014321-067
$95.99
19
BUSHING, A-ARM, LONG
5436973
$5.19
19
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]
1543326
$12.79
19
BUSHING, A-ARM, LONG
5436973
$5.19
19
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]
1543326
$12.79
20
SCR-3/8-24X12.25 FLG HX GR8-Y
7519065
$19.99
21
TUBE-PIVOT,.625ODX.385IDX11.12
5137562
$27.99
22
CONTROL, LOWER, BLACK, LH
1015888-067
$119.99
22
CONTROL, LOWER, BLACK, RH
1015889-067
$119.99
23
Screw
7512084
$1.49
24
SHIELD, CV REAR, BLACK, LH
5435008-070
$23.99
24
SHIELD, CV REAR, BLACK, RH
5435009-070
$23.99
25
Fitting, Lubrication
7080433
$1.49
25
Fitting, Lubrication
7080433
$1.49
25
Fitting, Lubrication
7080433
$1.49
25
Fitting, Lubrication
7080433
$1.49
26
WASHER
7556153
$1.99
27
BOLT
7515472
$2.39
27
BOLT
7515472
$2.39
