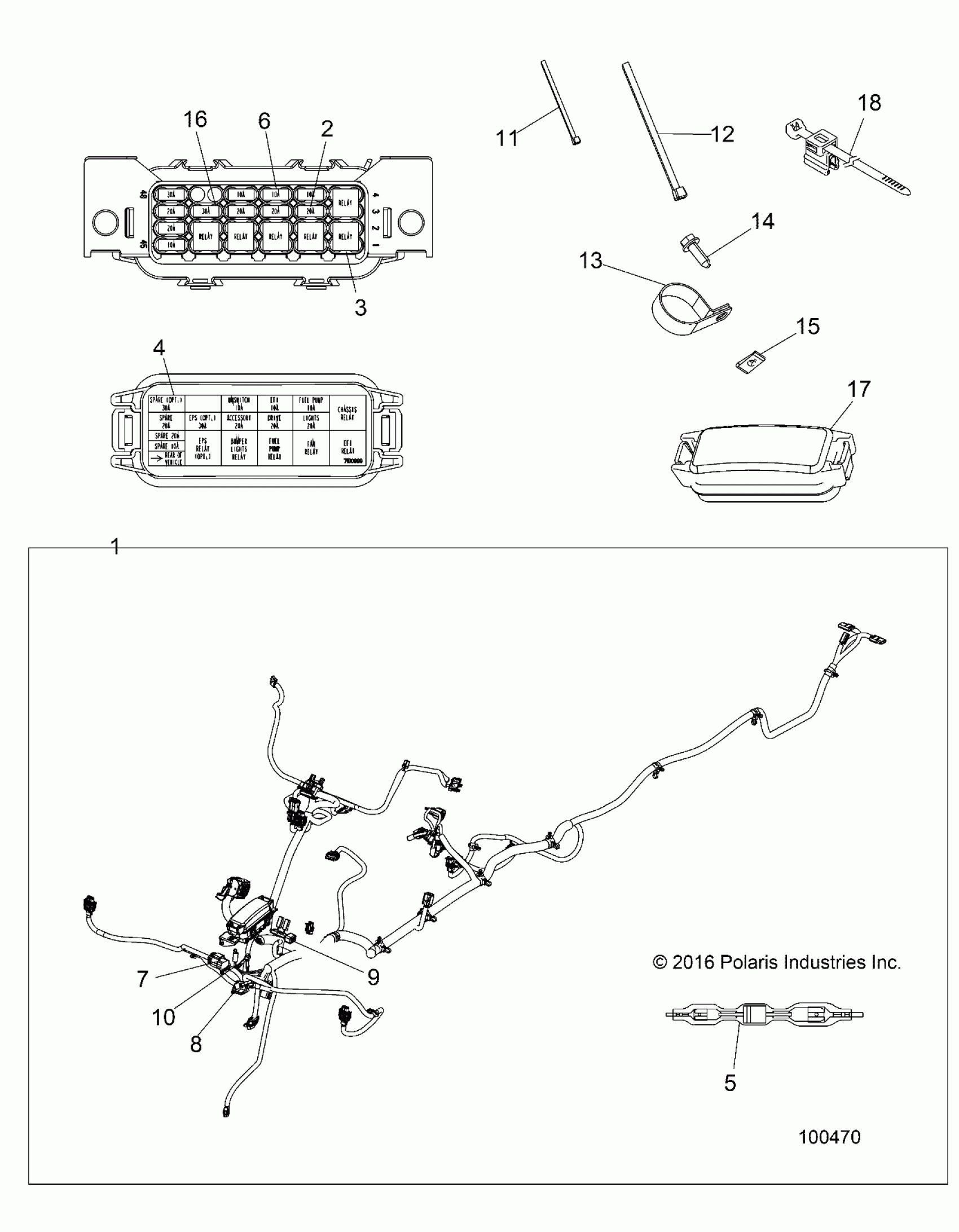

Polaris SPORTSMAN 570 6X6 (R05) - A19S6E57B1 ELECTRICAL, HARNESS - A19S6E57B1 Diagram

#

Description
Price

1

HARNESS-MAIN,SPMN 570 6X6 [TO 1/1/2019]

2413064

$884.39

1

HARNESS-MAIN,SPMN 570 6X6 [FROM 1/1/2019]

2414891

$884.39

2

FUSE-PARK,20 AMP

2434017

Unavailable

3

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

4

LABEL, FUSE BOX

7180889

Unavailable

5

DIODE, 6 AMP

2411035

$51.99

6

FUSE-IGNITION,10 AMP

2434016

$4.79

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

BREAKER-CIRCUIT,15AMP,SEALED

2411086

$39.99

9

DIODE, 6 AMP

2410000

$35.99

10

KIT, FUSE LINK, .8MM

2202607

$39.99

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

13

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

14

SCREW

7517386

$1.49

15

NUT, U-TYPE SPEED

7670057

$1.49

16

FUSE-MAIN,30 AMP

2434015

$7.19

17

COVER, FUSEBOX

4015011

$55.99

17

SEAL, FUSE CENTER

5415598

$8.79

18

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59
